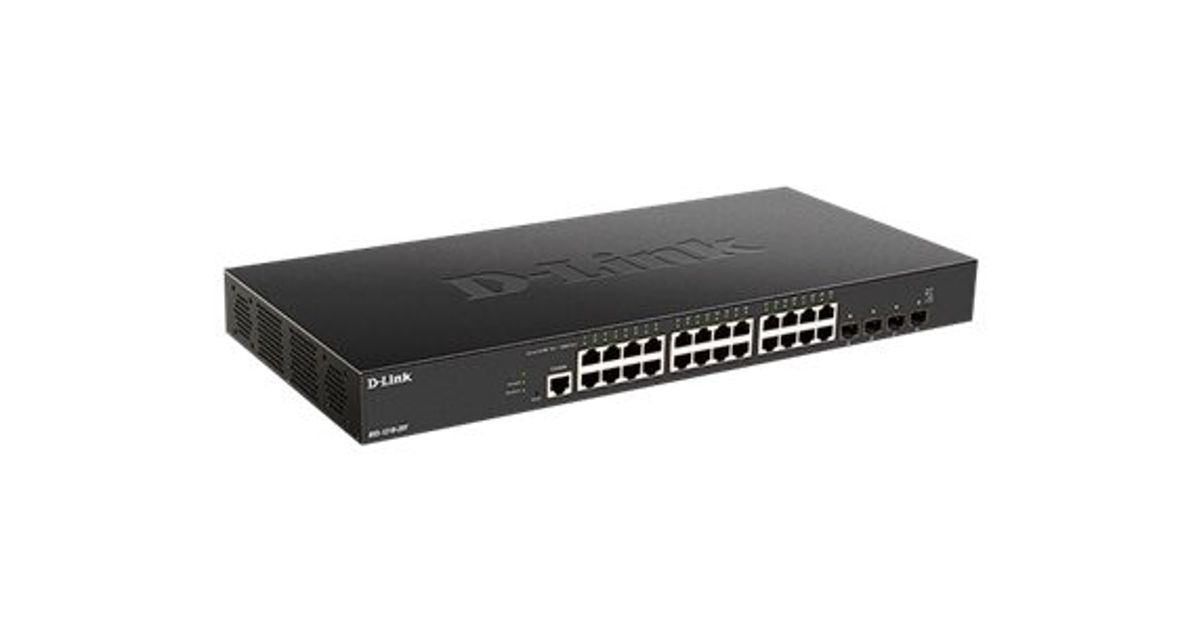

D-Link DXS-1210-28T network switch Managed 10G Ethernet (100/1000/10000) 1U Black
D-Link DXS-1210-28T, Managed, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | D-Link |
| Product code | 184113744 |
| EAN | 00790069456800 |
| Manufacturer part number | NUDLISS24000012 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z |
| Number of VLANs | 4094 |
| Noise level | 51.9 dB |
| Network | |
|---|---|
| Cable types supported | Cat6,Cat6a,Cat7 |
| Port mirroring | Y |
| Link aggregation | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Features | |
|---|---|
| Flow control support | Y |
| Certification | CE Class A FCC Class A VCCI Class A IC BSMI |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 680 Gbit/s |
| Forwarding rate | 505.92 Mpps |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Security | |
|---|---|
| Access Control List (ACL) | Y |
| Access Control List (ACL) rules | 256 |
| IGMP snooping | Y |
| Performance | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Speed |
| Number of fans | 2 fan(s) |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 87.3 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 209.5 mm |
| Height | 44 mm |
| Weight | 3.07 kg |
Product Description
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
