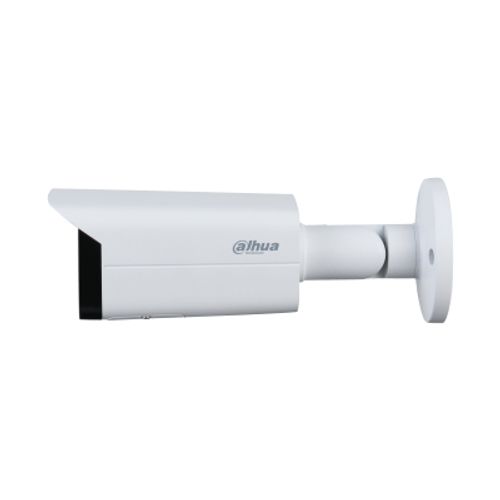

For illustrative purpose only
Dahua Technology Entry IPC-HFW1230T-ZS-S5 security camera Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Dahua Technology Entry IPC-HFW1230T-ZS-S5, IP security camera, Outdoor, Wired, 50 m, CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part..., Ceiling/Wall/Pole
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 325631192 |
| EAN | 06923172524959 |
| Manufacturer part number | IPC-HFW1230T-ZS-S5 |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Certification | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Auto pan mode | Y |
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Normal focusing range | 1.2 m |
| Number of users | 6 user(s) |
| Power source type | DC, PoE |
| Network | |
|---|---|
| Maximum operating distance | 50 m |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall/Pole |
| Design | |
|---|---|
| Product colour | Black, White |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Minimum illumination | 0.0005 lx |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter speed | 1/3 s–1/100,000 |
| Adjustment shutter speed | Auto/Manual |
| Number of illumination LEDs | 2 |
| Gain control type | Auto/Manual |
| Ergonomics | |
|---|---|
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Focus | Motorized/Manual |
| Identify distance | 13 m |
| Focal length range | 2.8 – 12 |
| Detect distance (wide) | 48 m |
| Detect distance (tele) | 131 m |
| Observe distance (wide) | 19 m |
| Observe distance (tele) | 52 m |
| Recognize distance (wide) | 10 m |
| Recognize distance (tele) | 26 m |
| Identify distance (wide) | 5 m |
| Identify distance (tele) | 13 m |
| Closest focusing distance | 1.2 m |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 50 m |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Y |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Digital Wide Dynamic Range (DWDR) | Y |
| Region of Interest (ROI) encoding | Y |
| Smart IR | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Protocols | |
|---|---|
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| ROM capacity | 16 MB |
| Other features | |
|---|---|
| Internal memory | 128 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 1.8 W |
| Power consumption (max) | 4.3 W |
| Power consumption (Power over Ethernet (PoE)) | 5.5 W |
| DC output voltage | 12 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Height | 244.1 mm |
| Diameter | 9.04 cm |
| Weight | 860 g |
| Package weight | 1.12 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
Product Description
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes / residences, small-sized retail stores, and other small and medium-sized enterprises.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving target.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
