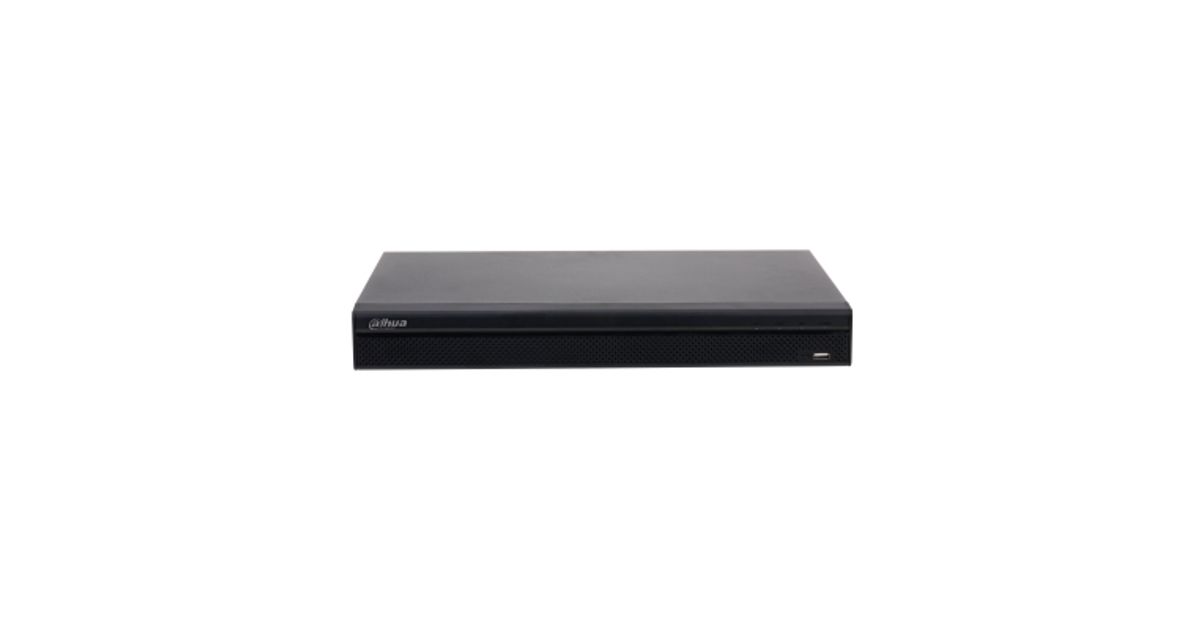

Dahua Technology NVR4204-4KS2/L 1U Black
Dahua Technology NVR4204-4KS2/L, 4 channels, 3840 x 2160 pixels, 20000 Kbit/s, 128 user(s), H.264, H.265, Embedded LINUX
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 729404381 |
| EAN | 06939554981562 |
| Manufacturer part number | DHI-NVR4204-4KS2/L |
| Performance | |
|---|---|
| Video input channels | 4 channels |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Bit rate | 20000 Kbit/s |
| Number of users | 128 user(s) |
| Two-way talk | Y |
| People counting | Y |
| Number of motion detection zones | 396 |
| Video loss detection | Y |
| Multi-screen | Y |
| Backup function | Y |
| PTZ control | Y |
| Snapshot | Y |
| Playback modes | Backup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop |
| Playback controls | Y |
| Throughput data rate | 200 Mbit/s |
| Recording modes | Continuous, Manual, Schedule, Stop |
| Recording time | 120 min |
| HDMI output | Y |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Security | |
|---|---|
| Video motion detection | Y |
| Display | |
|---|---|
| On Screen Display (OSD) | Y |
| Media formats | |
|---|---|
| Video formats supported | H.264, H.265 |
| Software | |
|---|---|
| Operating system installed | Embedded LINUX |
| Hard drive | |
|---|---|
| Maximum storage capacity | 12 TB |
| Features | |
|---|---|
| HDD interface | SATA III |
| Certification | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
| Built-in processor | Y |
| Storage | |
|---|---|
| Number of HDDs supported | 2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 50 W |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Protocols | |
|---|---|
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Design | |
|---|---|
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (typical) | 9 W |
| Output current | 2 A |
| Output voltage | 48 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 375 mm |
| Depth | 282.4 mm |
| Height | 53 mm |
| Weight | 1.51 kg |
| Package weight | 2.76 kg |
| Packaging data | |
|---|---|
| Package width | 141 mm |
| Package depth | 433 mm |
| Package height | 366 mm |
