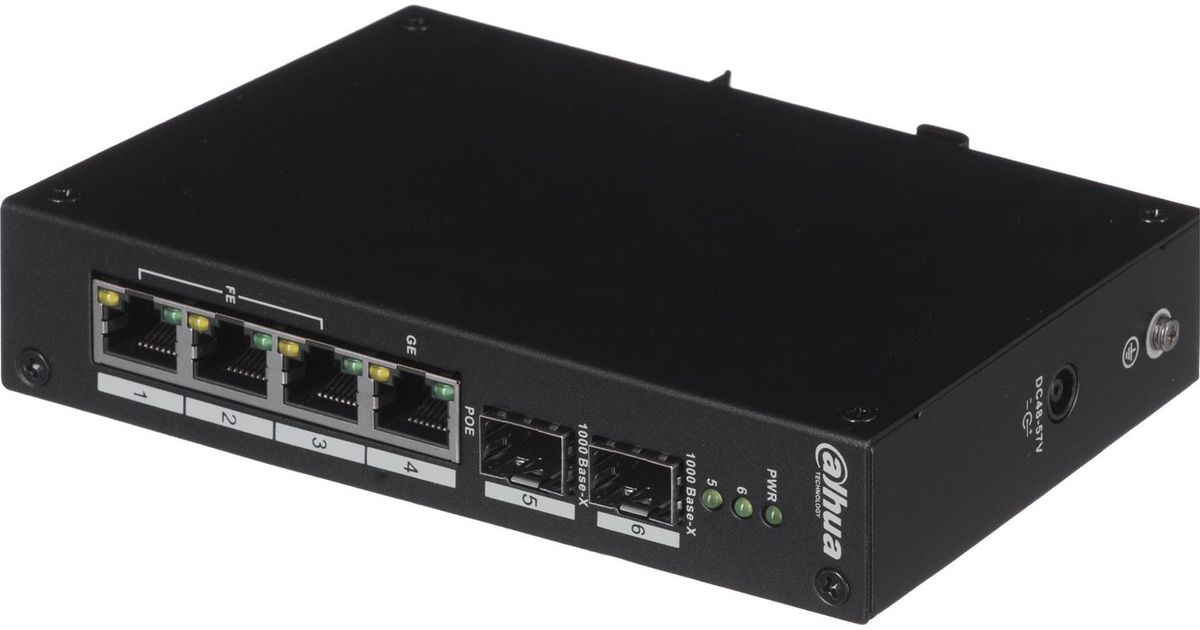

Dahua Technology PFS3206-4P-96 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Dahua Technology PFS3206-4P-96, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 327530395 |
| EAN | 06939554912764 |
| Manufacturer part number | PFS3206-4P-96 |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 2 |
| Fast Ethernet (copper) ports quantity | 3 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| Features | |
|---|---|
| Flow control support | Y |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 4.91 Mpps |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | Y |
| Product colour | Black |
| LED indicators | Y |
| Power | |
|---|---|
| DC input voltage | 48 - 57 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 480 g |
Product Description
4-Port PoE Switch, Unmanaged
