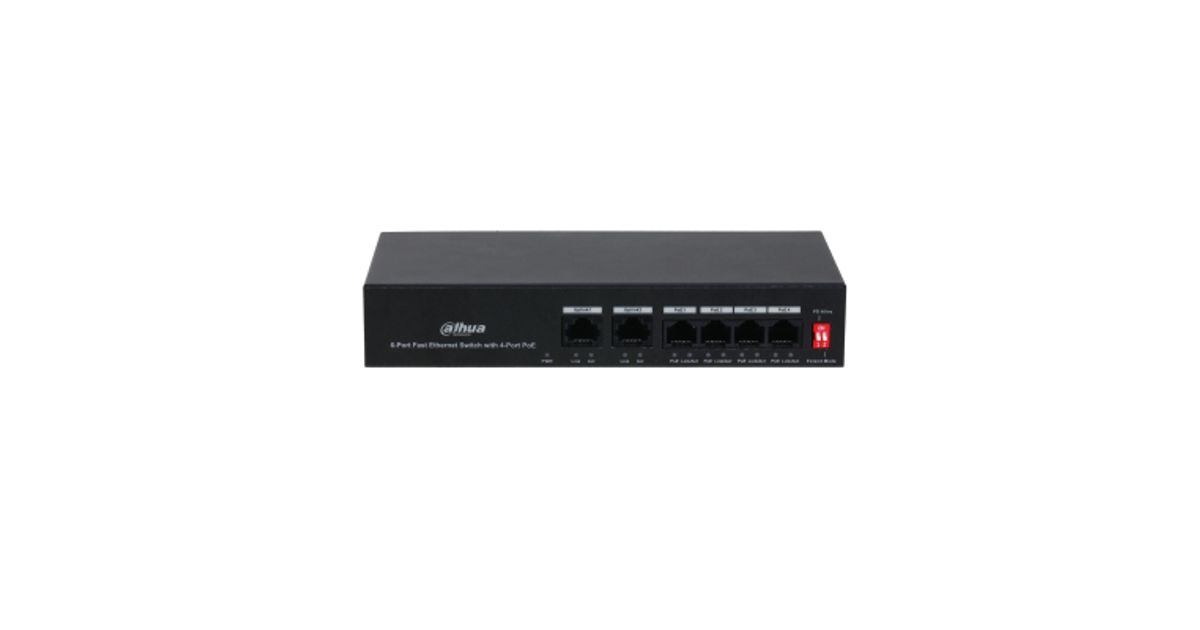

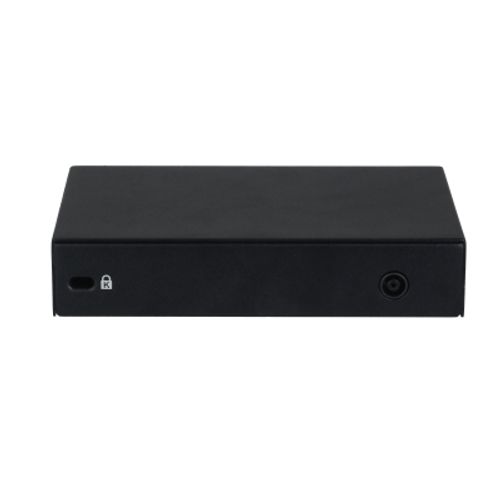

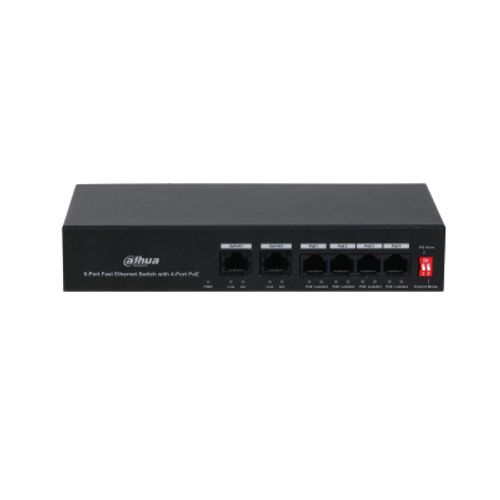

Dahua Technology PoE DH-PFS3006-4ET-36 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Dahua Technology PoE DH-PFS3006-4ET-36, Fast Ethernet (10/100), Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 127183942 |
| EAN | 06939554946967 |
| Manufacturer part number | PFS3006-4ET-36 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Uplink ports quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.89 Mpps |
| Design | |
|---|---|
| Product colour | Black |
| Features | |
|---|---|
| Certification | CE: EN60950; FCC |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 36 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 36 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 194 mm |
| Depth | 108.1 mm |
| Height | 35 mm |
| Weight | 560 g |
| Package weight | 1.11 kg |
| Packaging data | |
|---|---|
| Package width | 303 mm |
| Package depth | 262 mm |
| Package height | 72 mm |
Product Description
> Support four 10/100M PoE power supply ports, and two 10/100M uplink ports ·
> Support 802.3af and 802.3at standards
> OperatingTemperature: -10°C to +55°C
> Support 250 m long distance PoE tansmission
> Support PoE watchdo
> Support 802.3af and 802.3at standards
> OperatingTemperature: -10°C to +55°C
> Support 250 m long distance PoE tansmission
> Support PoE watchdo
