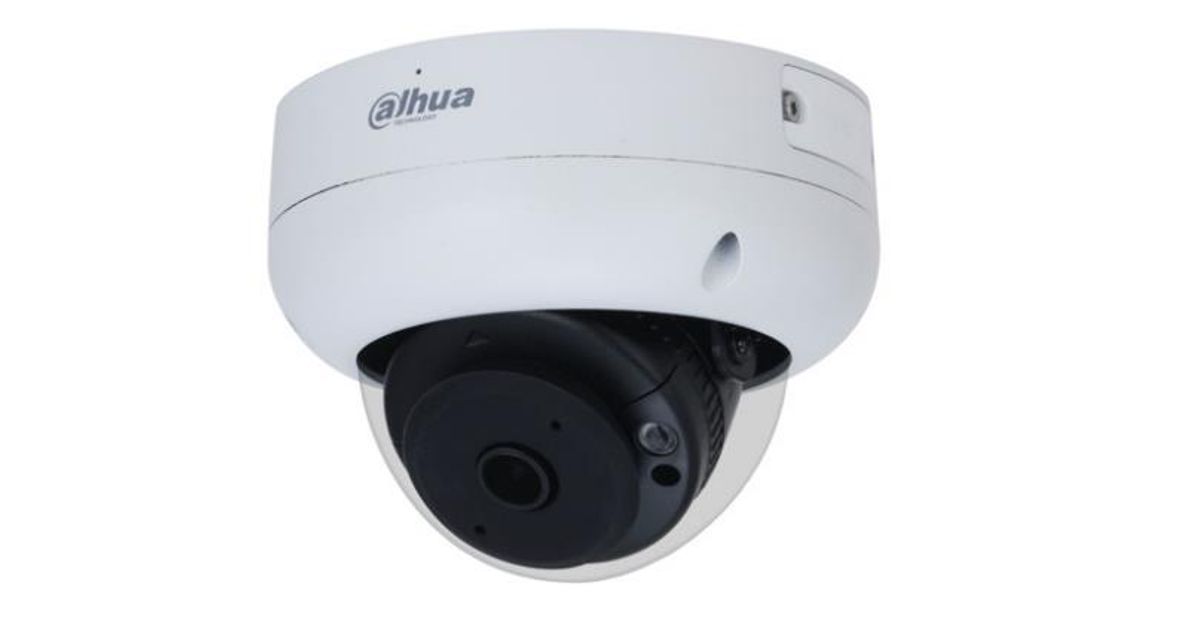

Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P security camera Dome IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall
Manufacturer:
Dahua Technology
Product Code: 127825209
EAN: 06923172534286
MPN: DH-IPC-HDBW3441R-AS-P
Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P, IP security camera, Indoor & outdoor, Wired, 120 dB, Ceiling/wall, Assorted colours
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Dahua Technology |
| Product code | 127825209 |
| EAN | 06923172534286 |
| Manufacturer part number | DH-IPC-HDBW3441R-AS-P |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Weatherproof | Y |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Dynamic range | 120 dB |
| Number of users | 20 user(s) |
| Power source type | DC, PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/wall |
| Design | |
|---|---|
| Product colour | Assorted colours |
| Form factor | Dome |
| LED indicators | Y |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Fog proof | Y |
| Camera | |
|---|---|
| Camera tilt control | N |
| Minimum illumination | 0.0005 lx |
| Lens viewing angle, horizontal | 170° |
| Lens viewing angle, diagonal | 175° |
| Pan range | 0 - 355° |
| White balance | Auto, Custom modes, Manual, Natural, Outdoor, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 s–1/100,000 |
| Adjustment shutter speed | Auto/Manual |
| Gain control type | Auto/Manual |
| Ergonomics | |
|---|---|
| Angle of rotation | 355° |
| Tilt angle range | 0 - 80° |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 75° |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 2.1 mm |
| Closest focusing distance | 0.6 m |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Y |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
| Night vision | |
|---|---|
| Night vision | Y |
| Graphics | |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Video | |
|---|---|
| Total megapixels | 4 MP |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video formats supported | H.264+, H.265+ |
| Video compression formats | H.264, H.264B, H.265, M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Streaming method | Multicast, Unicast |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x |
| Internal memory | 512 MB |
| Protocols | |
|---|---|
| Supported network protocols | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
|---|---|
| Web-based management | Y |
| Web browser | Y |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
|---|---|
| Power consumption (typical) | 3.2 W |
| Power consumption (max) | 6.4 W |
| Power consumption (Power over Ethernet (PoE)) | 7.7 W |
| DC output voltage | 12 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Height | 94 mm |
| Diameter | 12.2 cm |
| Weight | 500 g |
| Package weight | 770 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
Product Description
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.
SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.
SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
