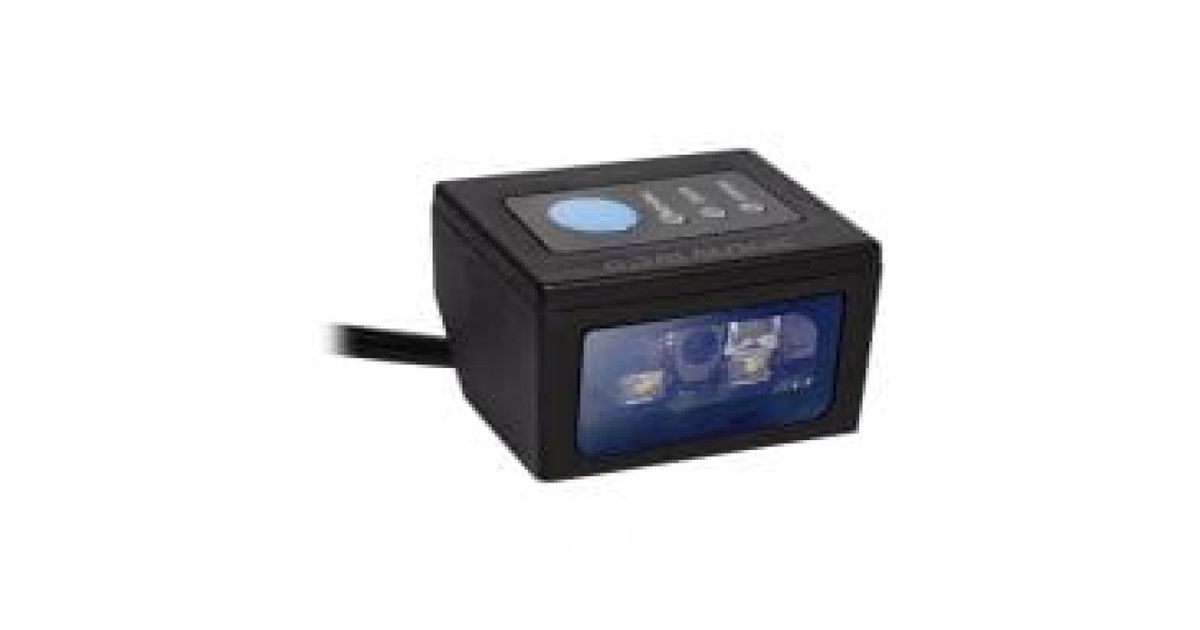

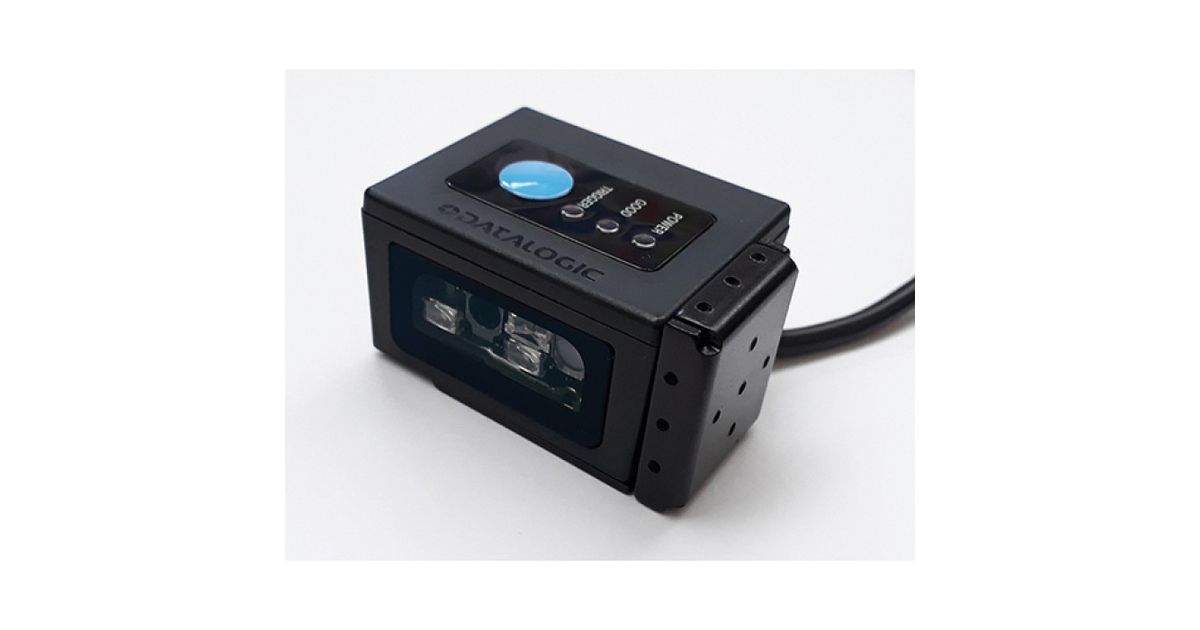

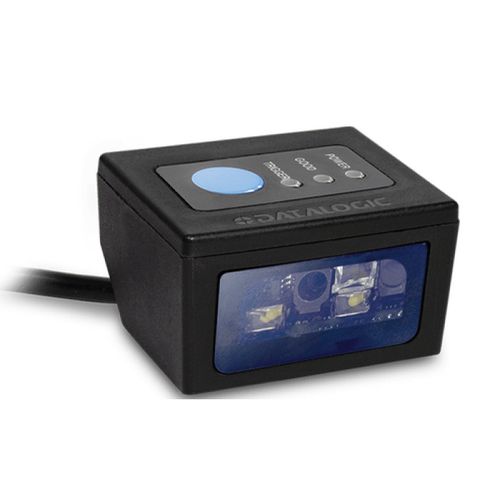

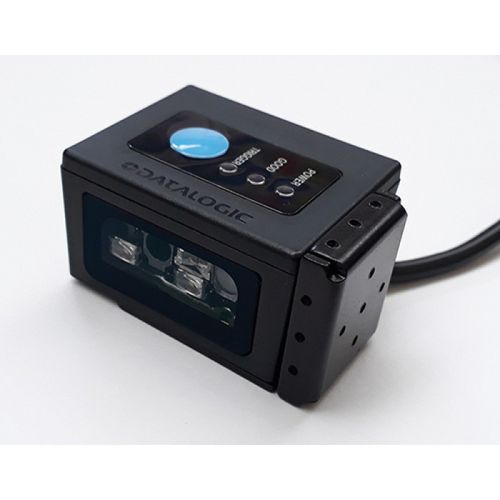

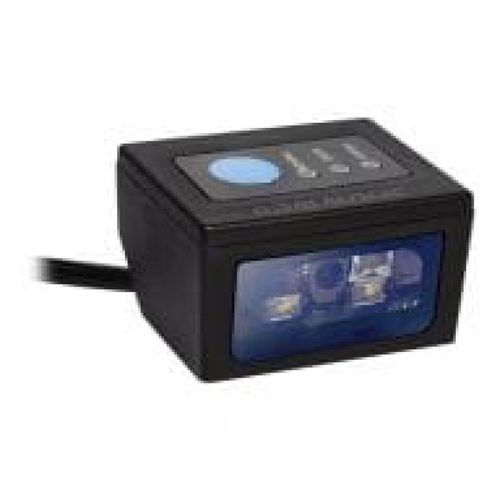

Datalogic DSM0422-SR Fixed bar code reader 2D Linear Black
Product Information
| Information | |
|---|---|
| Manufacturer | Datalogic |
| Product code | 229624999 |
| EAN | 05715063132470 |
| Manufacturer part number | DSM0422-WA |
| Category | Barcodescanner |
Product Description
Scanning
| Type | Fixed bar code reader |
|---|---|
| Scanner type | 2D |
| Sensor type | Linear |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Tilt reading angle | -180 - 180° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Standard interfaces | USB |
Performance
| Colour | Black |
|---|---|
| International Protection (IP) code | IP54 |
| LED indicators | |
| Buzzer | |
| Image formats supported | BMP, JPEG |
| Print contrast | 25% |
Power
| Power source type | RS-232, USB |
|---|---|
| Power consumption (typical) | 0.214 W |
| Power consumption (standby) | 0.057 W |
| Input voltage | 5 V |
| Power consumption | 214 mA |
Weight & dimensions
| Weight | 131 g |
|---|---|
| Width | 47 mm |
| Depth | 27 mm |
| Height | 38 mm |
Packaging data
| Cables included | USB |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
