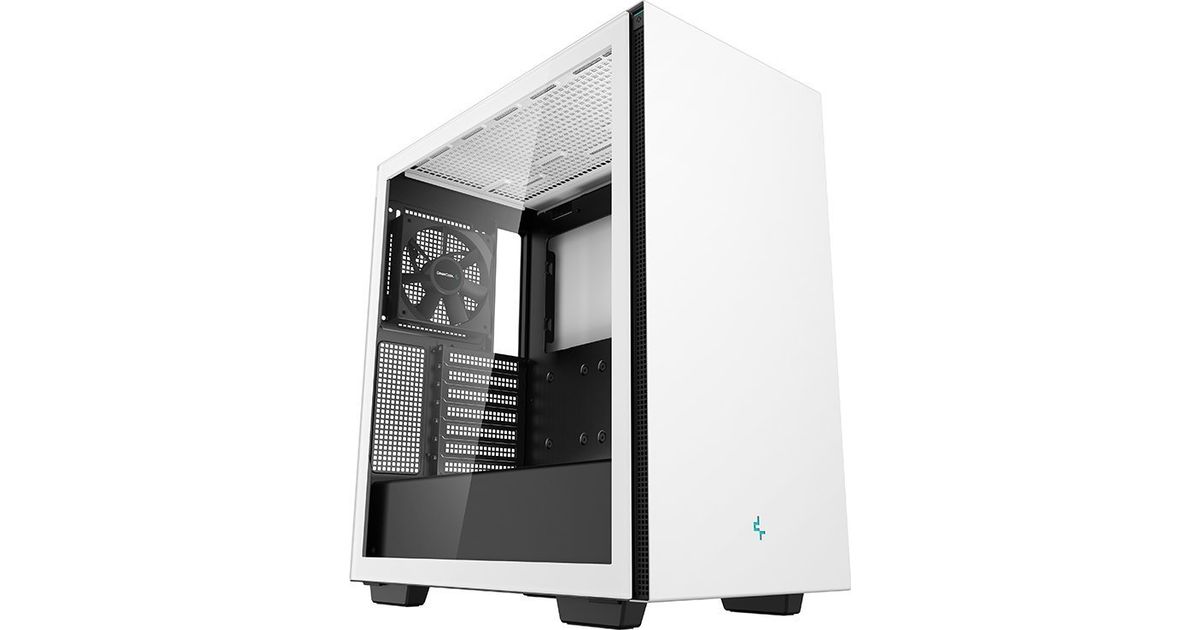

DeepCool CH510 Midi Tower White
DeepCool CH510, Midi Tower, PC, White, ATX, EATX, micro ATX, Mini-ATX, ABS, SPCC, Tempered glass, 17.5 cm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DeepCool |
| Product code | 257377364 |
| EAN | 06933412715016 |
| Manufacturer part number | R-CH510-WHNNE1-G-1 |
| Category | Desktop cases |
| Design | |
|---|---|
| Form factor | Midi Tower |
| Product colour | White |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window | Y |
| Tempered glass panel(s) | Y |
| Anti-dust filter | Y |
| Reset button | Y |
| On/off button | Y |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 17 cm |
| Features | |
|---|---|
| Type | PC |
| Material | ABS, SPCC, Tempered glass |
| Power supply | |
|---|---|
| Power supply included | N |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Y |
| Audio output | Y |
| Cooling | |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Y |
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,140,240,280,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 435 mm |
| Height | 471 mm |
| Weight | 7.2 kg |
Product Description
The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
A COMPLETE BUILD EXPERIENCE
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
EXPAND YOUR COOLING
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
MODULAR FRONT I/O
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
A COMPLETE BUILD EXPERIENCE
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
EXPAND YOUR COOLING
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
MODULAR FRONT I/O
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
