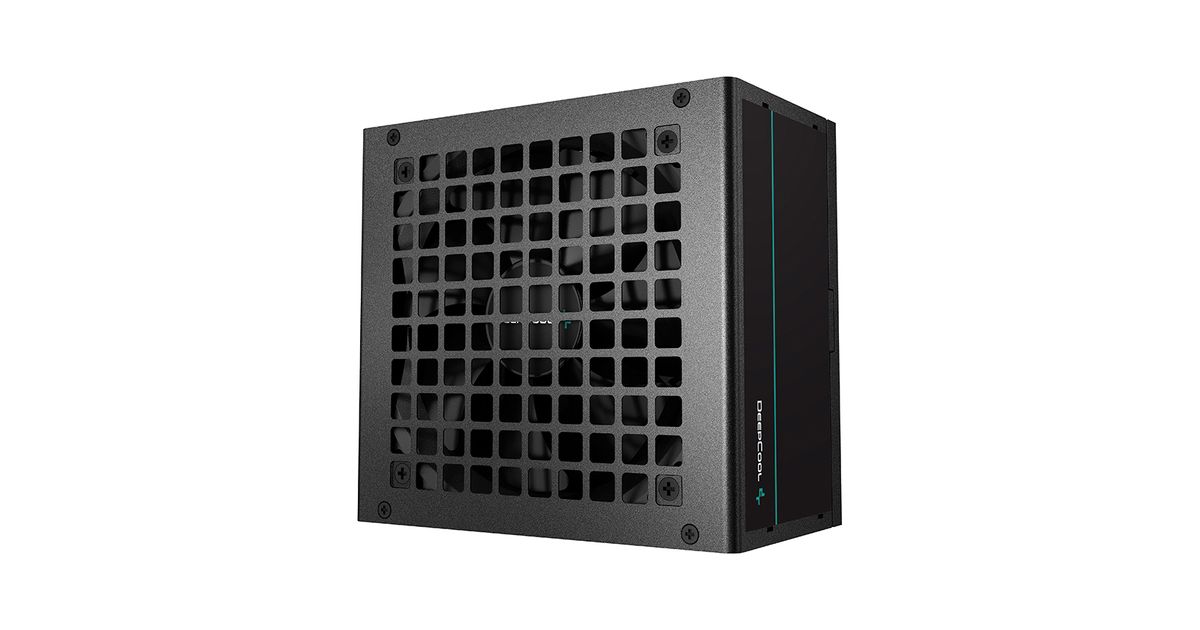

DeepCool PF400 power supply unit 400 W 20+4 pin ATX ATX Black
DeepCool PF400, 400 W, 220 - 240 V, 50 Hz, 100 W, 384 W, 100 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DeepCool |
| Product code | 256309399 |
| EAN | 06933412702207 |
| Manufacturer part number | R-PF400D-HA0B-EU |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 400 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 384 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 32 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| Features | |
|---|---|
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450,600,750,900 mm |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 2 |
| Mouse | |
|---|---|
| Purpose | PC/Server |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.4 |
| Mean time between failures (MTBF) | 100000 h |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | AC |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging data | |
|---|---|
| Package type | Box |
Product Description
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
