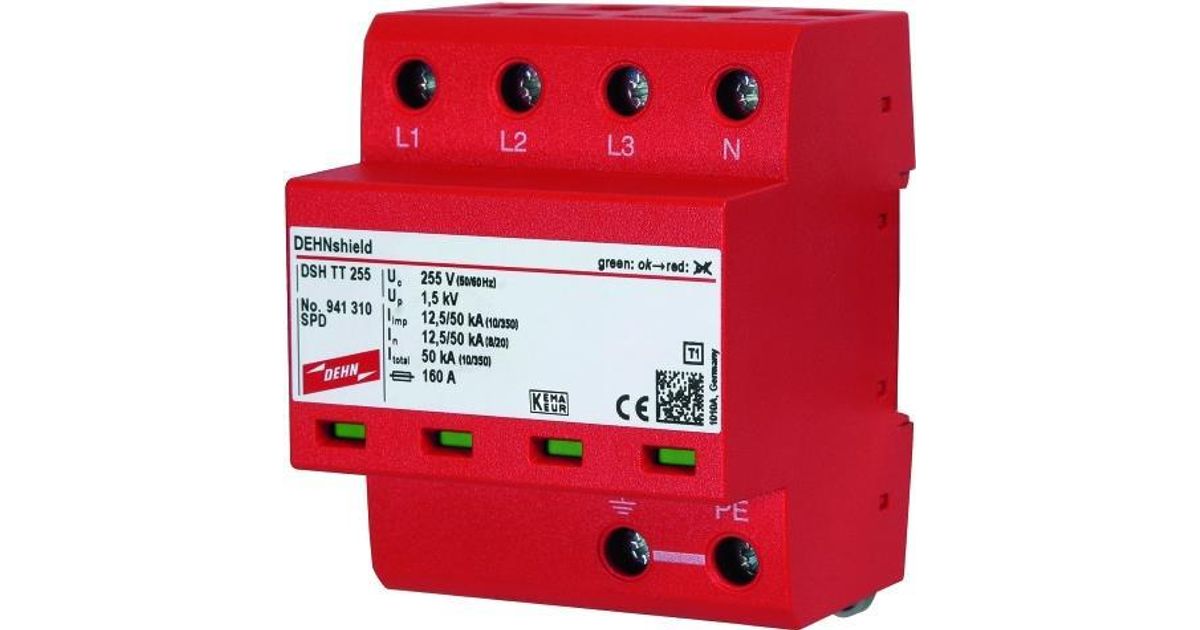

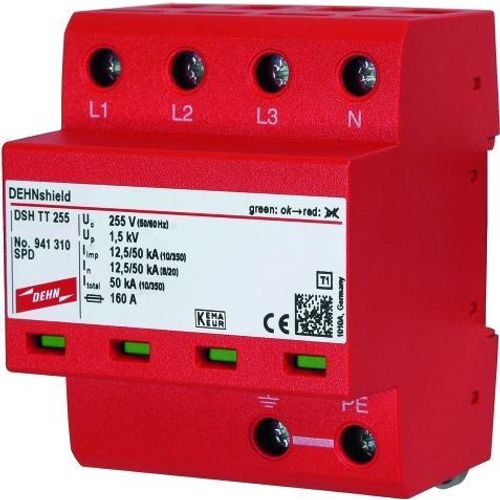

DEHN DSH TT 255 Red 230 - 400 V 0.1 m
DEHN DSH TT 255, Terminal, 230 - 400 V, 50 - 60 Hz, 50000 A, Red, Thermoplastic
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DEHN |
| Product code | 16523611 |
| EAN | 04013364131798 |
| Manufacturer part number | 941 310 |
| Category | Other electrical supplies |
Product Description
Application-optimised and prewired combined lightning current and surge arrester for TT and TN-S systems with a nominal voltage of 230 / 400 V (3+1 configuration).
Application-optimised and prewired spark-gap-based type 1 and type 2 combined lightning current and surge arrester
Compact design due to space-saving spark gap technology with a width of only 1 module / pole
Fulfils the minimum requirements on the lightning current discharge capacity according to IEC 60364-5-53
Allows compact lightning equipotential bonding including protection of terminal equipment
Discharge capacity up to 50 kA (10/350 µs)
Operating state / fault indication by green / red indicator flag in the inspection window
High follow current extinguishing capacity (Ifi = 25 kArms)
Application-optimised and prewired spark-gap-based type 1 and type 2 combined lightning current and surge arrester
Compact design due to space-saving spark gap technology with a width of only 1 module / pole
Fulfils the minimum requirements on the lightning current discharge capacity according to IEC 60364-5-53
Allows compact lightning equipotential bonding including protection of terminal equipment
Discharge capacity up to 50 kA (10/350 µs)
Operating state / fault indication by green / red indicator flag in the inspection window
High follow current extinguishing capacity (Ifi = 25 kArms)
