For illustrative purpose only
DEHN Uni-Erdungsklemme M8 Rd8-10mm+4-50qmm 540 250 Stainless steel
DEHN Uni-Erdungsklemme M8 Rd8-10mm+4-50qmm 540 250, Stainless steel, 50 pc(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DEHN |
| Product code | 162178133 |
| EAN | 04013364138650 |
| Manufacturer part number | 540250 |
| Category | Other electrical supplies |
Product Description

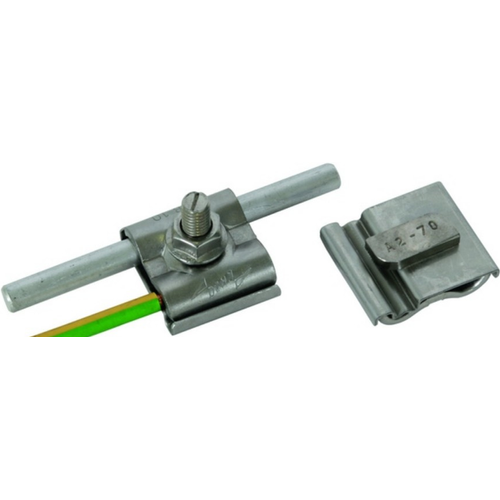

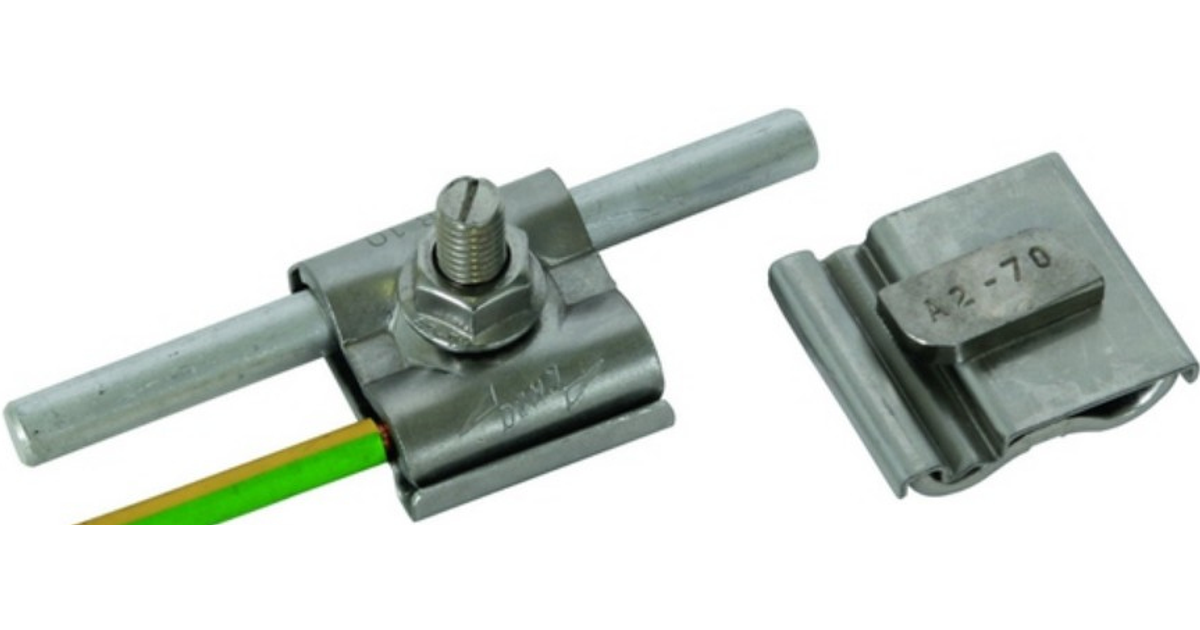

Earthing clamps for integrating mounting systems e.g. of PV installations into the functional equipotential bonding/functional earthing (optionally black
conductor) and lightning equipotential bonding according to IEC/EN 62305-3.
The StSt contact plate (intermediate element) allows for different materials of conductors (Cu, Al, St/tZn and StSt ) to be connected to the usual
mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double cleat design allows for easy and quick interconnection of the profiles, e.g. by feed-through wiring.
