DELL 406-BBGR network card Internal Fiber 8192 Mbit/s

Manufacturer: DELL Product Code: 228182585 EAN: 05397063818334 MPN: 406-BBGR

DELL 406-BBGR, Internal, Wired, PCI Express, Fiber, 8192 Mbit/s, Green
Read more...

Product Information

Information
Manufacturer	DELL
Product code	228182585
EAN	05397063818334
Manufacturer part number	406-BBGR
Category	Võrgukaardid

Keyboard
Connectivity technology	Wired

Ports & interfaces
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	2
PCI version	2.0

Optical fiber
Fiber optic connector	LC
Fiber ethernet cabling technology	10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LW, 10GBASE-SR, 10GBASE-SW

Other features
PCI Card form factor	Half-height (low-profile)
Networking standards	IEEE 802.3ae

Features
Maximum data transfer rate	8192 Mbit/s
Certification	CISPR 22 Class A, DHHS, EN55022 Class A, EMC, ICES-003 Class A, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, EN 60825-1, EN55024 Class A, BSMI Class A, VCCI Class A
Harmonized System (HS) code	85176990

Network
Ethernet LAN	Y
Ethernet LAN data rates	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T

Performance
Internal	Y

Design
Component for	Server
Product colour	Green

Software
Windows operating systems supported	Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate

System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008

Operational conditions
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95%

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Depth	167.6 mm
Height	68.9 mm

Product Description

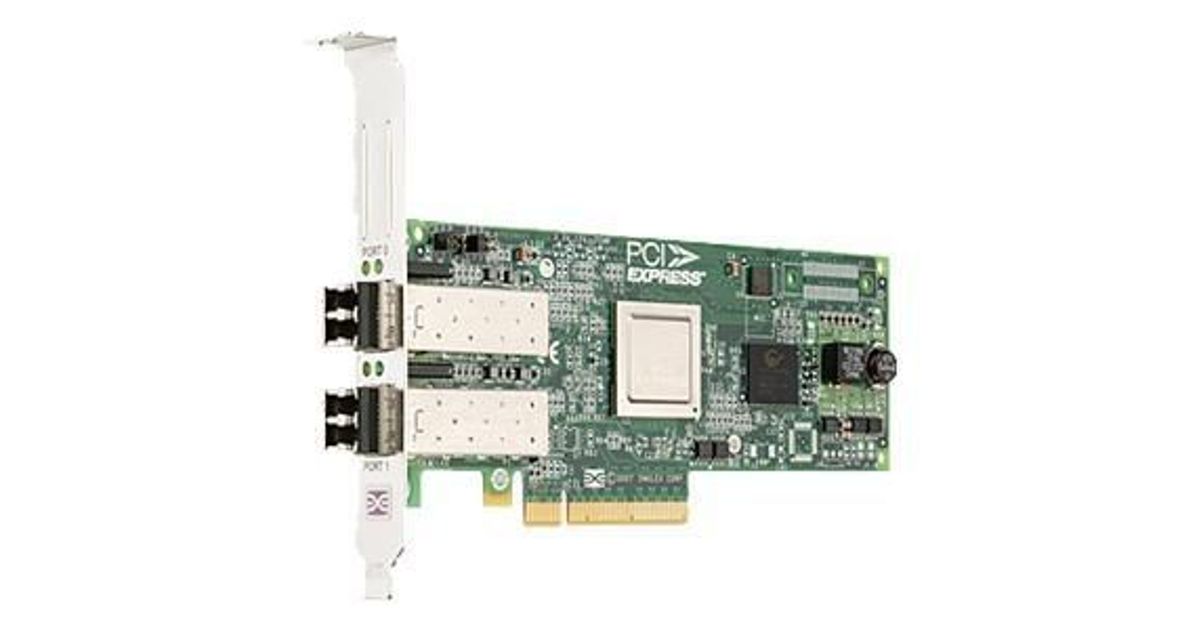

Emulex LPe12002 Dual Channel
Dell/EMC Emulex Fibre Channel host bus adapters (HBAs) offers highly integrated 8Gb/s Fibre Channel connectivity solutions for enterprise, and midrange storage area networks (SANs). The LPe12002 HBA is engineered to delivers state of the art performance through the use of a sixth generation Emulex Fibre Channel controller. It boasts increased throughput with PCI-Express to 8Gb/s Fibre Channel connection and high performance through 16 buffer credits and 1024 contexts cache.

This card is highly compatible using the same driver as Emulex PCIe HBAs and drivers. It is also compatible with previous versions of Emulex HBAs. Firmware and drivers are independently upgradeable for simplicity, ease-of-use and investment protection.

Compatibility
This product is compatible with the following systems:
- PowerEdge 1950;
- PowerEdge 2970;
- PowerEdge R220;
- PowerEdge R310;
- PowerEdge R320;
- PowerEdge R410;
- PowerEdge R415;
- PowerEdge R420;
- PowerEdge R430;
- PowerEdge R510;
- PowerEdge R515;
- PowerEdge R520;
- PowerEdge R530;
- PowerEdge R610;
- PowerEdge R620;
- PowerEdge R630;
- PowerEdge R710;
- PowerEdge R715;
- PowerEdge R720;
- Poweredge R720XD;
- PowerEdge R730;
- PowerEdge R730XD;
- PowerEdge R805;
- PowerEdge R810;
- PowerEdge R815;
- PowerEdge R820;
- PowerEdge R900;
- PowerEdge R905;
- PowerEdge R910;
- PowerEdge R920;
- PowerEdge T410;
- PowerEdge T420;
- PowerEdge T430;
- PowerEdge T610;
- PowerEdge T620;
- PowerEdge T630;
- PowerEdge T710;
- PowerEdge VRTX;
- PowerVault DL2000;
- PowerVault DL2200.
