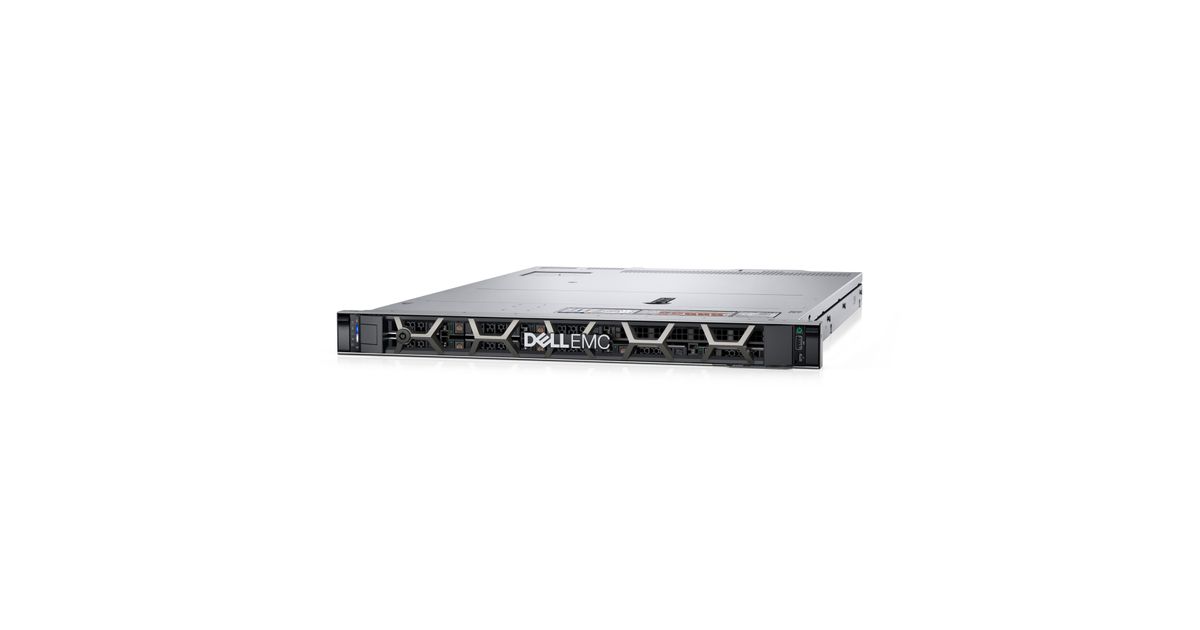

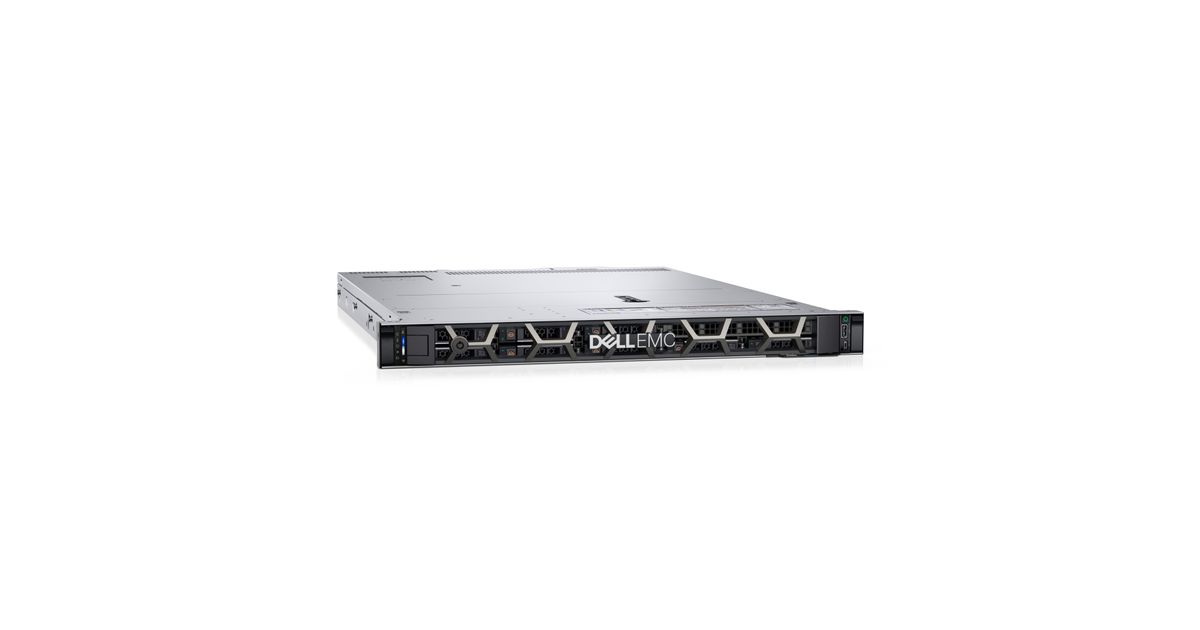

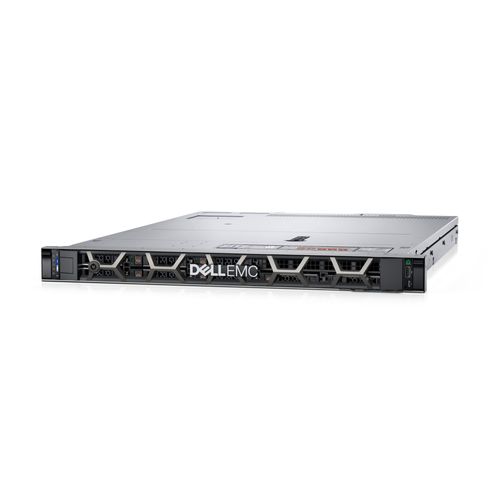

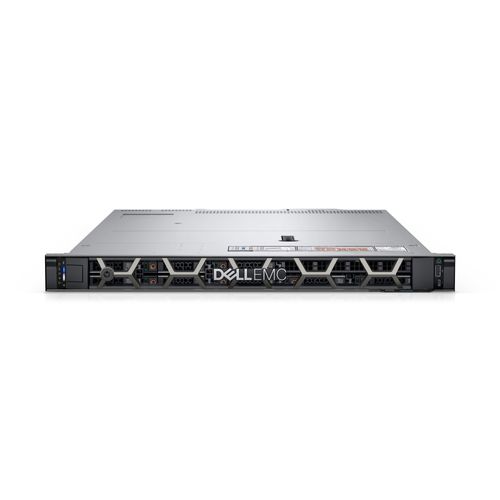

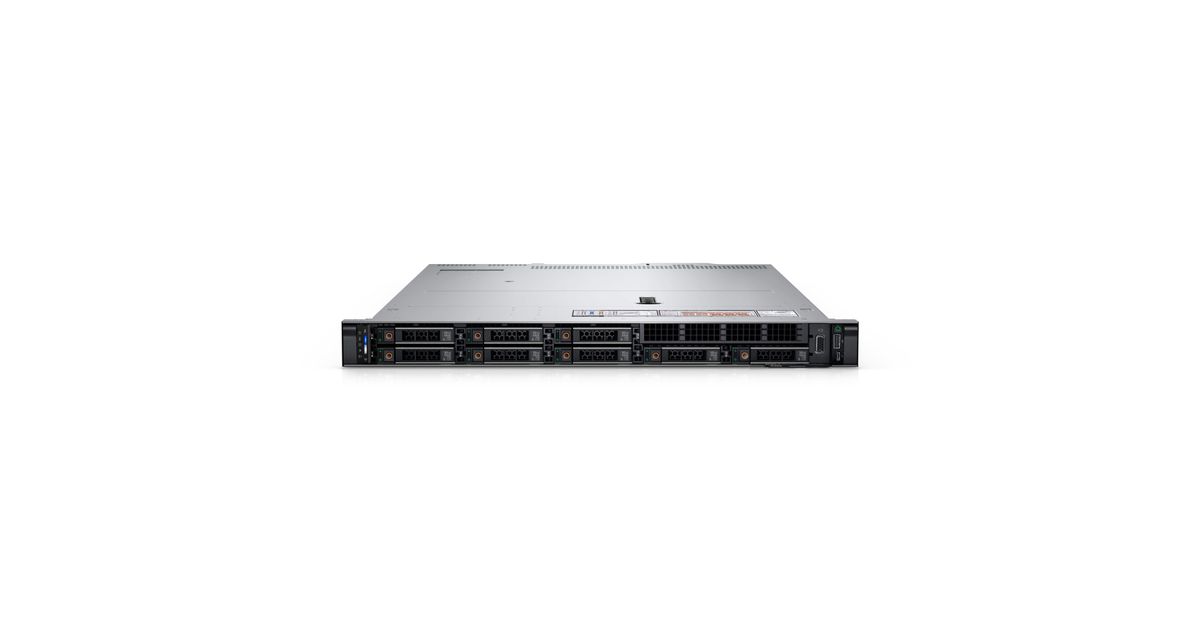

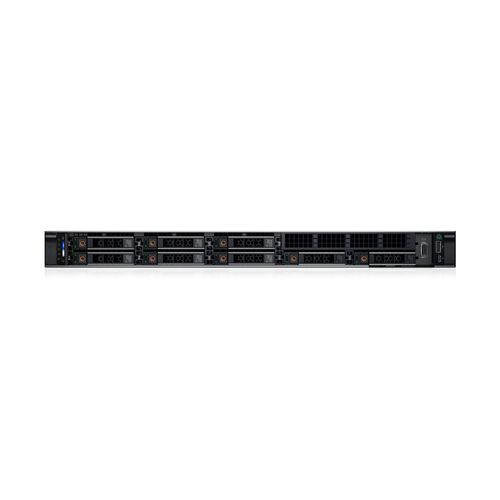

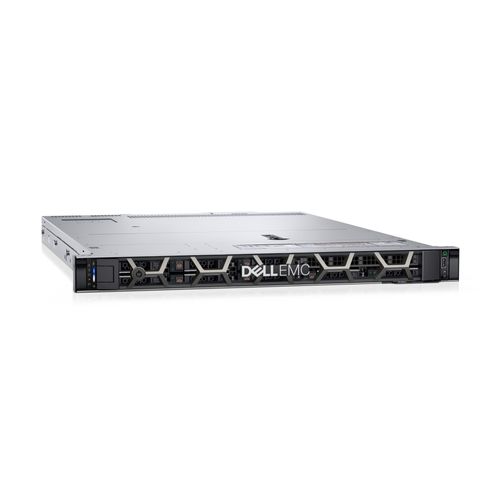

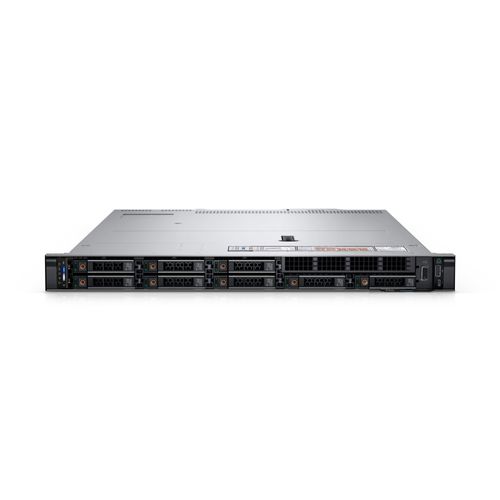

DELL PowerEdge R450 server 480 GB Rack (1U) Intel Xeon Silver 2.8 GHz 16 GB DDR4-SDRAM 800 W
DELL PowerEdge R450, 2.8 GHz, 4309Y, 16 GB, DDR4-SDRAM, 480 GB, Rack (1U)
Read more...
Read more...
Product Information
Information | |
---|---|
Manufacturer | DELL |
Product code | 566827490 |
EAN | 05397184745632 |
Manufacturer part number | X95FF |
Category | Servers |
Processor | |
---|---|
Processor family | Intel Xeon Silver |
Processor manufacturer | Intel |
Processor model | 4309Y |
Processor frequency | 2.8 GHz |
Processor boost frequency | 3.6 GHz |
Processor cores | 8 |
Processor cache | 12 MB |
Number of processors installed | 1 |
Thermal Design Power (TDP) | 105 W |
System bus rate | 10.4 GT/s |
Processor threads | 16 |
Memory | |
---|---|
Internal memory | 16 GB |
Internal memory type | DDR4-SDRAM |
Memory slots | 16x DIMM |
Memory clock speed | 2666 MHz |
Memory layout (slots x size) | 1 x 16 GB |
Memory data transfer rate | 3200 MT/s |
Features | |
---|---|
Buffered memory type | Registered (buffered) |
Memory ranking | 2 |
Bezel | Y |
Harmonized System (HS) code | 84714100 |
Data transfer rate | 6 Gbit/s |
Bytes per sector | 512 |
Storage | |
---|---|
Total storage capacity | 480 GB |
Optical drive type | N |
Number of SSDs installed | 1 |
SSD capacity | 480 GB |
SSD interface | SATA III |
SSD size | 2.5" |
Supported SSD sizes | 2.5" |
Number of SSDs supported | 8 |
Supported RAID controllers | PERC H755 |
Drive writes per day (DWPD) | 1 |
Performance | |
---|---|
Hot-Plug support | Y |
Remote administration | iDRAC9, Enterprise 15G |
Network | |
---|---|
LAN controller | Broadcom 5720 |
Ethernet LAN | Y |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet interface type | Gigabit Ethernet |
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
VGA (D-Sub) ports quantity | 2 |
Other features | |
---|---|
USB 2.0 ports quantity | 1 |
Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Design | |
---|---|
Chassis type | Rack (1U) |
Product colour | Black |
Software | |
---|---|
Operating system installed | N |
Power | |
---|---|
Redundant power supply (RPS) support | Y |
Power supply | 800 W |
Number of redundant power supplies supported | 2 |
Number of main power supplies | 1 |
Power cable connector 1 | C13 coupler |
Power cable connector 2 | C14 coupler |
Power cable current | 10 A |
Packaging content | |
---|---|
Power cable length | 2 m |
Operational conditions | |
---|---|
Operating temperature (T-T) | 10 - 35 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 8 - 80% |
Storage relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3048 m |
Non-operating altitude | 0 - 12000 m |
Weight & dimensions | |
---|---|
Width | 482 mm |
Height | 42.8 mm |
Product Description
1U value-optimized server for general-purpose IT
The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers improved performance and exceptional value in a 1U rack server.
The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers improved performance and exceptional value in a 1U rack server.
