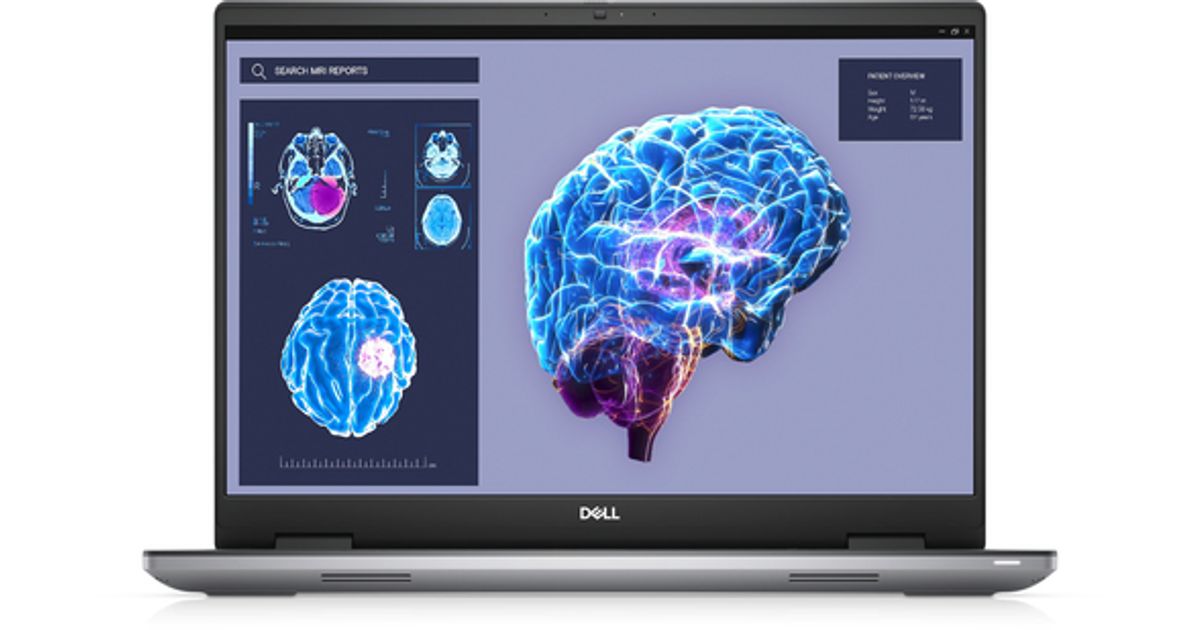

For illustrative purpose only
DELL Precision 7680 i9-13950HX Mobile workstation 40.6 cm (16") Full HD+ Intel® Core™ i9 32 GB DDR5-SDRAM 1000 GB SSD NVIDIA RTX 3500 Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
DELL Precision 7680, Intel® Core™ i9, 40.6 cm (16"), 1920 x 1200 pixels, 32 GB, 1000 GB, Windows 11 Pro
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DELL |
| Product code | 179365034 |
| EAN | 05397184810422 |
| Manufacturer part number | MVHK0 |
| Category | Laptop |
| Design | |
|---|---|
| Product type | Mobile workstation |
| Product colour | Grey |
| Form factor | Clamshell |
| Market positioning | Business |
| Introduction year | 2023 |
| Cable lock slot type | Wedge |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | Y |
| Intel Flex Memory Access | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| CPU configuration (max) | 1 |
| Embedded options available | N |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Display | |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | N |
| HD type | Full HD+ |
| Panel type | WLED |
| LED backlight | Y |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Y |
| Display brightness | 500 cd/m² |
| Pixel density | 142 ppi |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1300:1 |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Processor model | i9-13950HX |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor boost frequency | 5.5 GHz |
| Efficient-core boost frequency | 4 GHz |
| Processor cores | 24 |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Configurable TDP-down | 45 W |
| Memory | |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | CAMM module |
| Memory channels | Dual-channel |
| Non-ECC | Y |
| Storage | |
|---|---|
| Total storage capacity | 1000 GB |
| Storage media | SSD |
| Optical drive type | N |
| Total SSDs capacity | 1000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Y |
| Compatible memory cards | SD, SDHC, SDXC |
| Features | |
|---|---|
| NVMe | Y |
| SSD form factor | M.2 |
| Audio chip | Realtek ALC3281 |
| Antenna type | 2x2 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Discrete graphics adapter | Y |
| Discrete graphics adapter model | NVIDIA RTX 3500 |
| On-board graphics adapter model | Intel® UHD Graphics |
| Discrete graphics adapter memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| Audio | |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Y |
| Number of microphones | 2 |
| Camera | |
|---|---|
| Front camera | Y |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Y |
| Network | |
|---|---|
| Mobile network connection | N |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Y |
| WWAN | Upgradable |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Y |
| Combo headphone/mic port | Y |
| Charging port type | DC-in jack |
| Power adapter barrel connector | 7.4 mm |
| Performance | |
|---|---|
| Ambient light sensor | Y |
| Accelerometer | Y |
| Fast charging | Y |
| Cable lock slot | Y |
| Sensors | |
|---|---|
| Hall sensor | Y |
| Keyboard | |
|---|---|
| Numeric keypad | Y |
| Pointing device | Touchpad |
| Keyboard language | German |
| Keyboard backlit | Y |
| Keyboard number of keys | 100 |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Thin Client | |
|---|---|
| Operating system language | Multilingual |
| Battery | |
|---|---|
| Battery capacity (Watt-hours) | 93 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11.55 V |
| Battery recharge time | 3 h |
| Weight & dimensions | |
|---|---|
| Battery weight | 410 g |
| Weight | 2.6 kg |
| Width | 356 mm |
| Depth | 258.3 mm |
| Height (front) | 2.23 cm |
| Height (rear) | 2.32 cm |
| Power | |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12.3 A |
| AC adapter output voltage | 19.5 V |
| Security | |
|---|---|
| Smart card reader | Y |
| Password protection | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Packaging content | |
|---|---|
| Cables included | AC |
