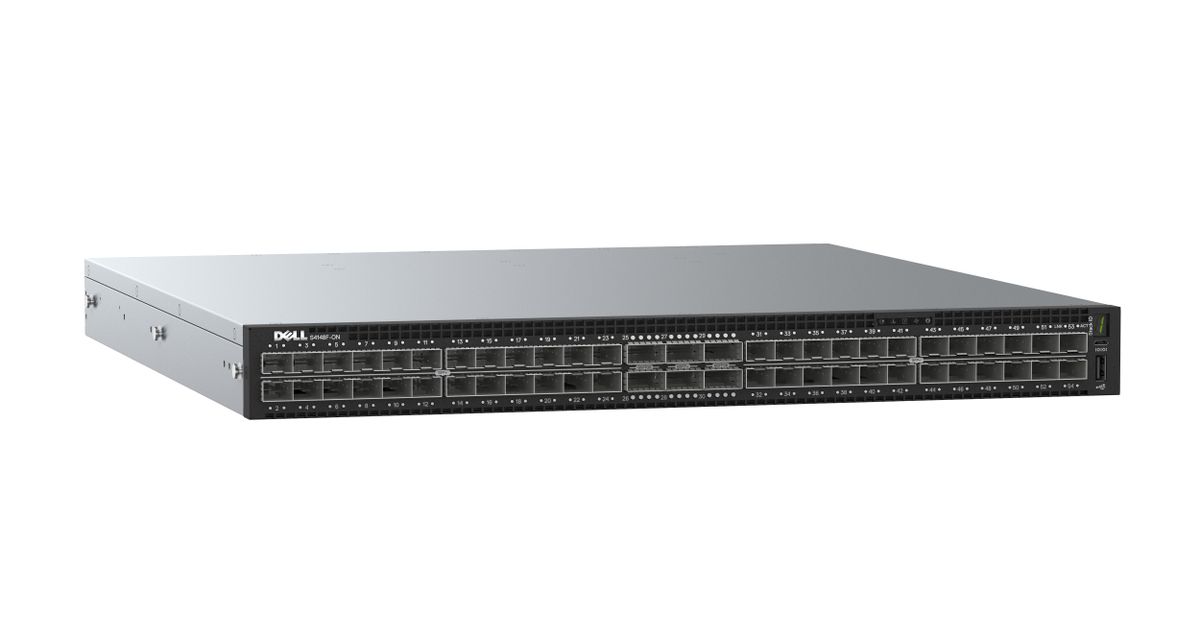

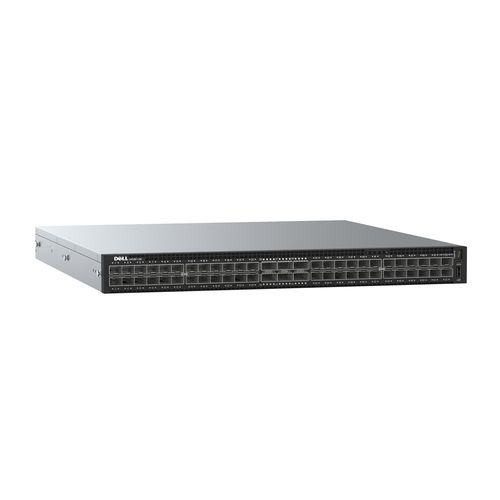

DELL S-Series S4148F-ON Managed L2/L3 None 1U Black
DELL S-Series S4148F-ON, Managed, L2/L3, None, Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DELL |
| Product code | 577455340 |
| EAN | 05397184219645 |
| Manufacturer part number | 210-ALSI |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Y |
| Configuring Location Settings (CLI) | Y |
| MIB support | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | None |
| Gigabit Ethernet (copper) ports quantity | 1 |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.3 |
| Internal memory | 4000 MB |
| Network | |
|---|---|
| 10G support | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| Features | |
|---|---|
| Flow control support | Y |
| Ventilation system | Front-to-back airflow |
| Built-in processor | Y |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| Jumbo frames support | Y |
| Jumbo frames | 9416 |
| Packet buffer memory | 12 MB |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Performance | |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 200 W |
| Power consumption (max) | 370 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 431 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 9.46 kg |
Product Description
Flexible, powerful and optimized
Designed for flexibility and high performance for today's demanding modern workloads and applications.
Designed for flexibility and high performance for today's demanding modern workloads and applications.
