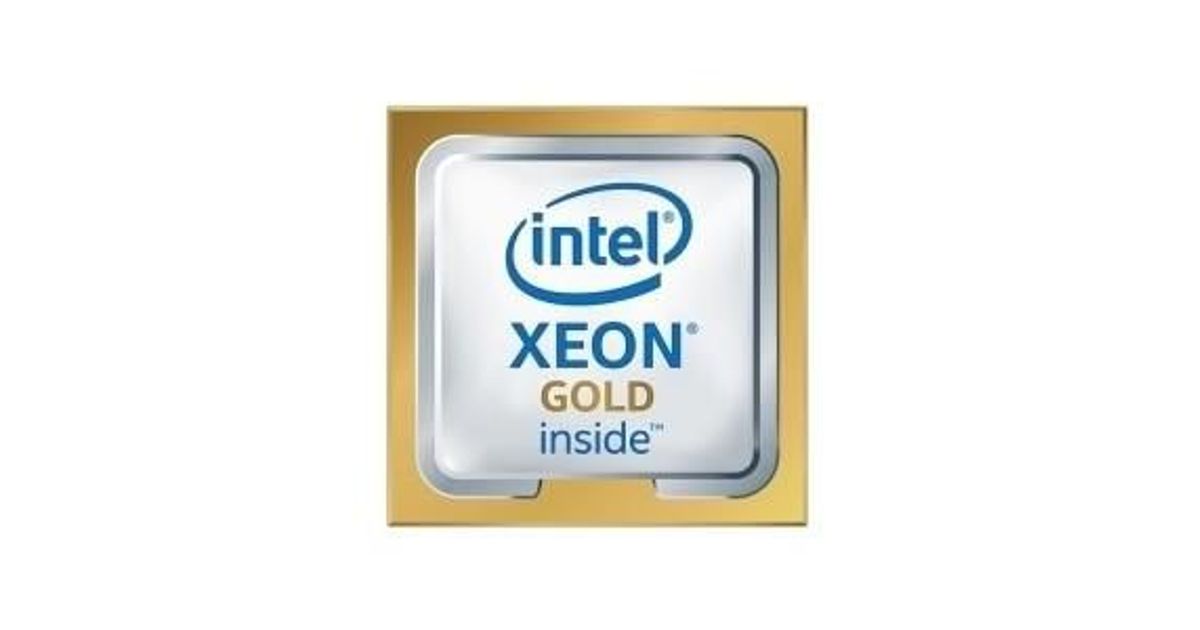

DELL Xeon 5220 processor 2.2 GHz 24.75 MB
DELL Xeon 5220, Intel® Xeon® Gold, LGA 3647 (Socket P), 14 nm, Intel, 2.2 GHz, 64-bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DELL |
| Product code | 228174742 |
| EAN | 05397184377826 |
| Manufacturer part number | 338-BSDM |
| Category | Protsessorid |
| Processor | |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor cores | 18 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Box | N |
| Cooler included | N |
| Processor manufacturer | Intel |
| Processor model | 5220 |
| Processor base frequency | 2.2 GHz |
| Processor operating modes | 64-bit |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor threads | 36 |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 24.75 MB |
| Thermal Design Power (TDP) | 125 W |
| Processor codename | Cascade Lake |
| Maximum internal memory supported by processor | 1024 GB |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Component for | Server/workstation |
| Product type | Processor |
| Processor special features | |
|---|---|
| Processor ARK ID | 193388 |
| Execute Disable Bit | Y |
| Supported instruction sets | AVX-512 |
| Embedded options available | N |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | Y |
| Intel® Speed Shift Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel TSX-NI | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Turbo Boost Max Technology 3.0 | N |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Deep Learning Boost (Intel® DL Boost) | Y |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | N |
| Intel® Resource Director Technology (Intel® RDT) | Y |
| Intel® Volume Management Device (VMD) | Y |
| Intel® Run Sure Technology | Y |
| Mode-based Execute Control (MBE) | Y |
| Intel® vPro™ Platform Eligibility | Y |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | N |
| Processor package size | 76.0 x 56.5 mm |
| Intel Speed Select Technology (SST) | N |
| Memory | |
|---|---|
| Memory channels | Hexa-channel |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| ECC | Y |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Not available |
| Discrete graphics adapter model | Not available |
| Features | |
|---|---|
| Market segment | Server |
| Scalability | 4S |
| PCI Express CEM revision | 3.0 |
| Intel® Optane™ DC Persistent Memory Supported | Y |
| Harmonized System (HS) code | 85423119 |
| Intel® Optane™ DC Persistent Memory technology | Y |
| Number of UPI links | 2 |
| Operational conditions | |
|---|---|
| Tcase | 87 °C |
| Other features | |
|---|---|
| Launch date | Q2'19 |
| Status | Launched |
| Other information | |
|---|---|
| Memory speed (max) | 2667 MHz |
Product Description
The Intel Xeon® 5220 2.2GHz Eighteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 5220 2.2GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 5220 2.2GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
