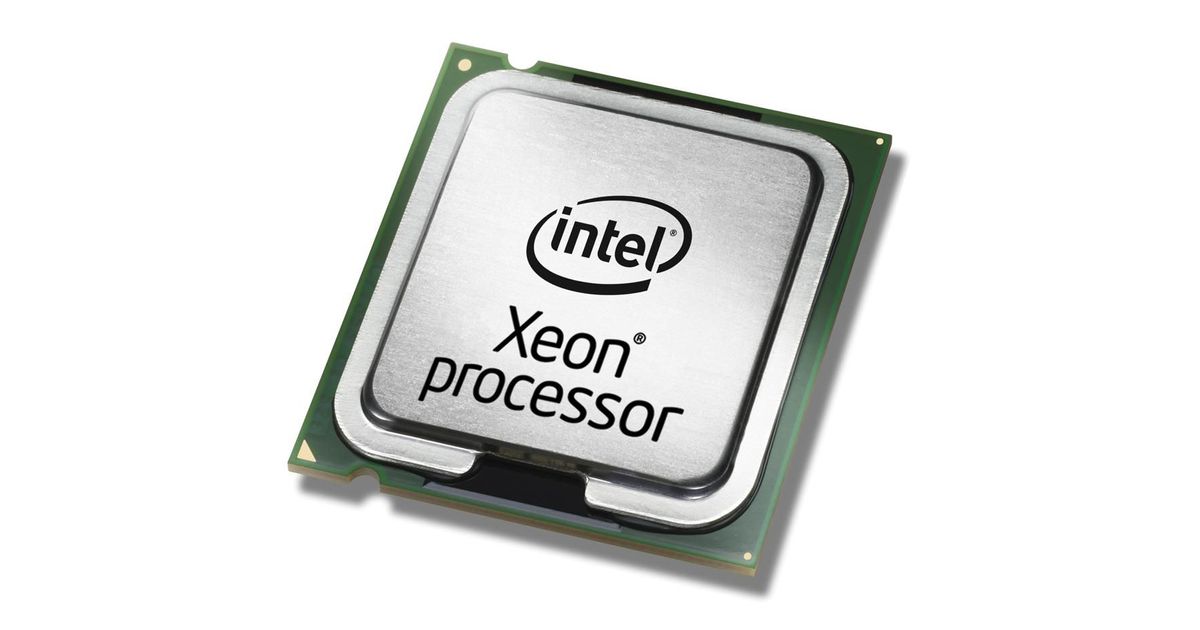

For illustrative purpose only
DELL Xeon E5-2609 processor 2.4 GHz 10 MB L3
DELL Xeon E5-2609, Intel® Xeon® E5 Family, LGA 2011 (Socket R), 32 nm, E5-2609, 2.4 GHz, 64-bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DELL |
| Product code | 228632986 |
| EAN | 05712505484180 |
| Manufacturer part number | 374-14552 |
| Category | Protsessorid |
| Processor | |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor cores | 4 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Processor model | E5-2609 |
| Processor base frequency | 2.4 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 4 |
| System bus rate | 6.4 GT/s |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.60 - 1.35 V |
| Stepping | M1 |
| CPU multiplier (bus/core ratio) | 24 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Maximum internal memory supported by processor | 384 GB |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Component for | Server/workstation |
| Memory | |
|---|---|
| Memory channels | Quad-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| ECC | Y |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | N |
| Intel® Hyper Threading Technology (Intel® HT Technology) | N |
| Intel® Identity Protection Technology (Intel® IPT) | N |
| Intel® Turbo Boost Technology | N |
| Intel Fast Memory Access | N |
| Intel® Smart Cache | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel Demand Based Switching | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® vPro™ Platform Eligibility | Y |
| Processor package size | 52.5 mm |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Features | |
|---|---|
| Market segment | Server |
| Scalability | 2S |
| Operational conditions | |
|---|---|
| Tcase | 70 °C |
Product Description
The Xeon® Processor from Intel is designed to deliver enhanced reliability and flexibility for server platforms. This processor offers excellent performance and headroom for peak Internet server loads, resulting in faster response times, support for more users and improved scalability. It has been tested and validated on Dell™ systems to ensure it will work with your system. This processor is fully supported by Dell Technical Support when used with a Dell system.
Compatibility
- PowerEdge T620
- PowerVault DL2300.
Compatibility
- PowerEdge T620
- PowerVault DL2300.
