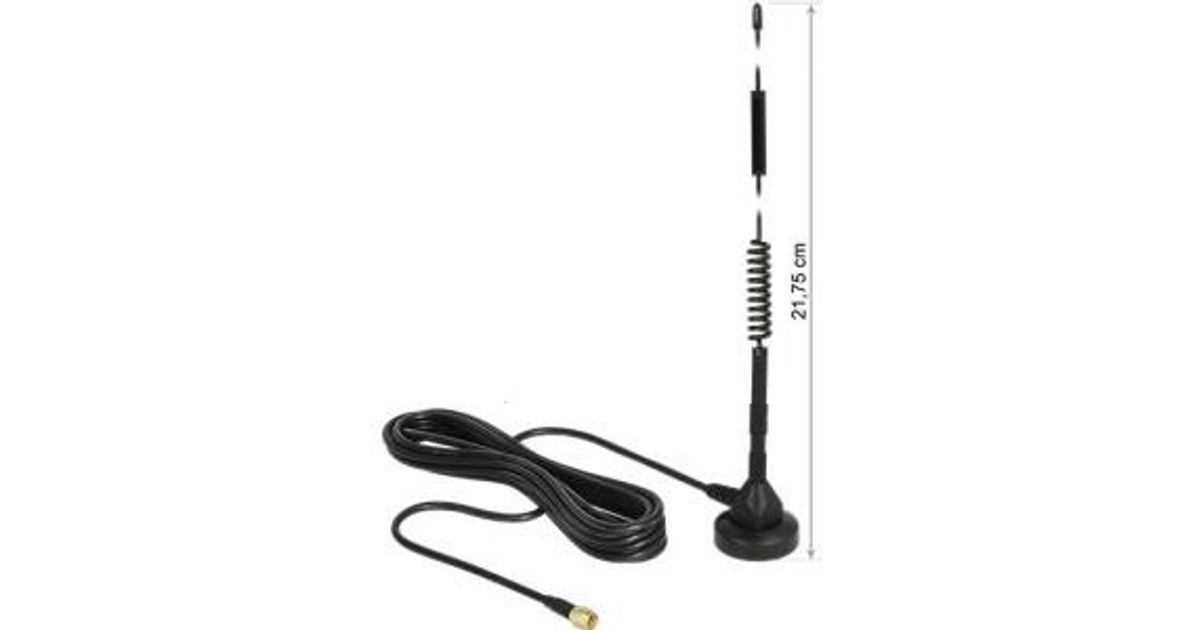

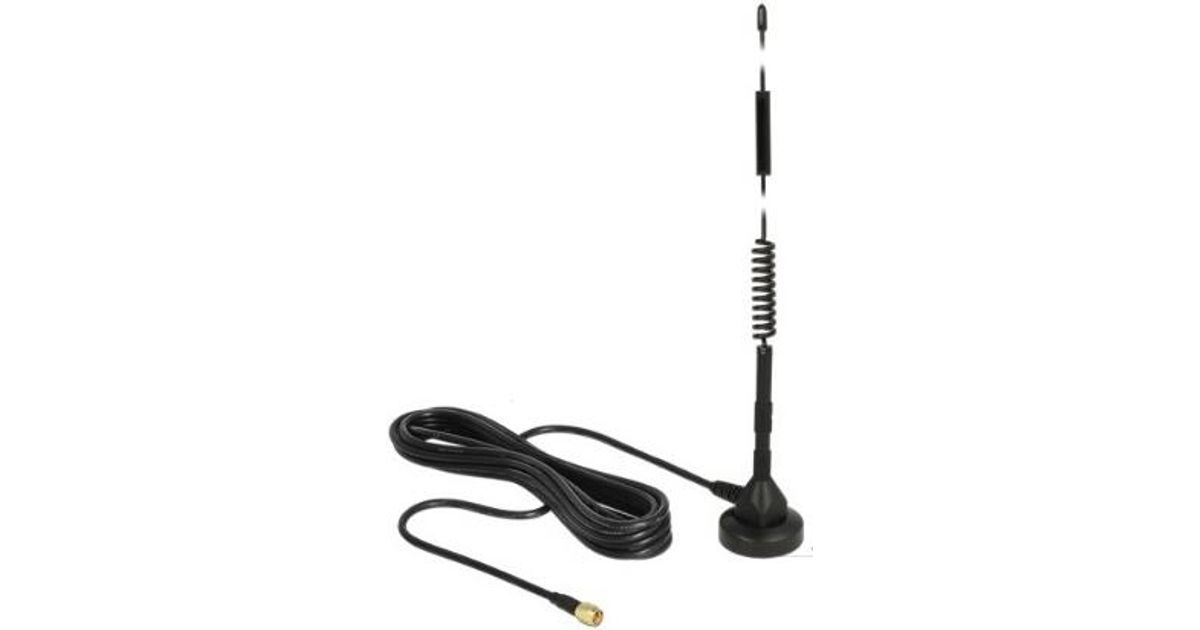

DeLOCK 12427 network antenna Omni-directional antenna SMA 5 dBi
DeLOCK 12427, 5 dBi, 0.7 - 0.96, 1.71 - 2.69 GHz, 50 Ω, Omni-directional antenna, SMA, Male
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | DeLOCK |
| Product code | 161895579 |
| EAN | 04043619124275 |
| Manufacturer part number | 12427 |
| Category | Network antennas & accessories |
Product Description
This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
- Connector: 1 x SMA plug.
- Frequency range: 700 - 960 MHz, 1710 - 2690 MHz.
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz.
- Antenna gain: 5 dBi.
- Impedance: 50 Ohm.
- Polarisation: vertical.
- VSWR: 2.0.
- Transmission power: 50 W.
- Operating temperature: -30 °C ~ 70 °C.
- Colour: black.
- Antenna length including magnetic base: ca. 337 mm.
- Cable: coaxial.
- Cable type: RG-174.
- Cable colour: black.
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter.
- Cable diameter: ca. 2.7 mm.
- Cable length incl. connector: ca. 3 m.
- Diameter magnetic base: ca. 40.0 mm.
System requirements
- Device with a free SMA jack.
Package content
- LTE antenna.
Package
- Poly bag.
- Connector: 1 x SMA plug.
- Frequency range: 700 - 960 MHz, 1710 - 2690 MHz.
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz.
- Antenna gain: 5 dBi.
- Impedance: 50 Ohm.
- Polarisation: vertical.
- VSWR: 2.0.
- Transmission power: 50 W.
- Operating temperature: -30 °C ~ 70 °C.
- Colour: black.
- Antenna length including magnetic base: ca. 337 mm.
- Cable: coaxial.
- Cable type: RG-174.
- Cable colour: black.
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter.
- Cable diameter: ca. 2.7 mm.
- Cable length incl. connector: ca. 3 m.
- Diameter magnetic base: ca. 40.0 mm.
System requirements
- Device with a free SMA jack.
Package content
- LTE antenna.
Package
- Poly bag.
