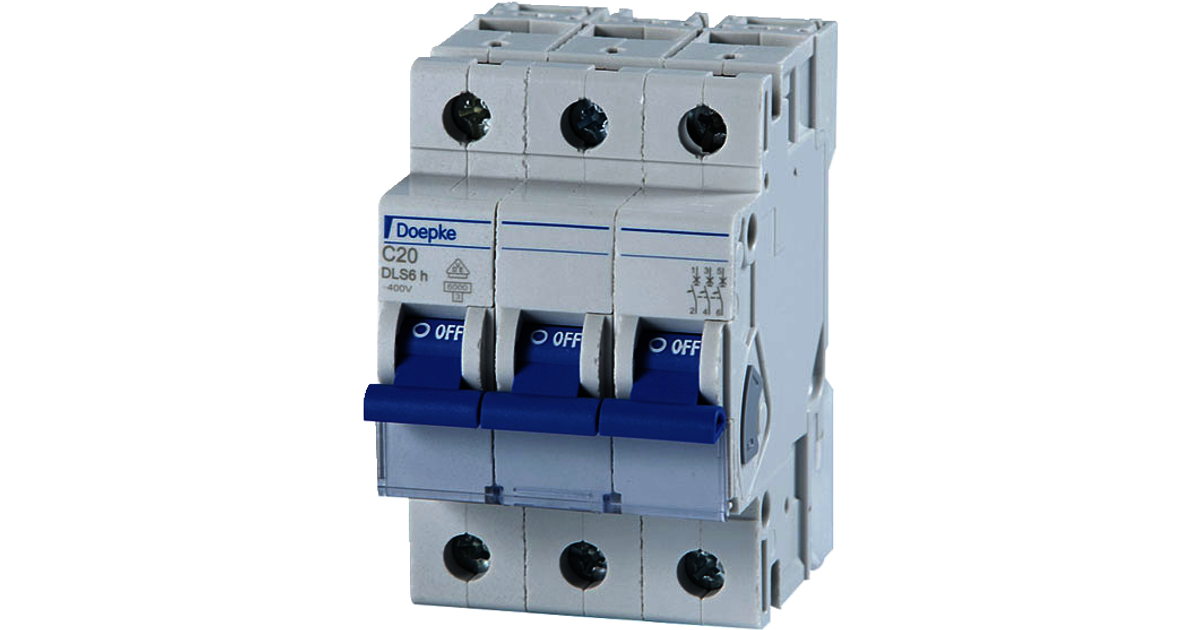

For illustrative purpose only
Doepke 09914293 circuit breaker Miniature circuit breaker C-type 3
Doepke 09914293, Miniature circuit breaker, C-type, 6000 A, IP20, 12 - 400 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Doepke |
| Product code | 162032937 |
| EAN | 04014712163744 |
| Manufacturer part number | 09914293 |
| Category | Other electrical supplies |
Product Description
An important stipulation of DIN VDE 0100 is to protect cables, lines and installation devices from overload and short-circuits. This requirement can be met using miniature circuit-breakers (MCBs). In industrial installations and also in commercial buildings, they often take on additional protection of equipment and devices where there are usually higher requirements than when used in residential buildings. Miniature circuit-breakers utilise both the magnetic and heat effect of the electrical current. If the current jumps to a value that is too high when a short-circuit occurs, the MCB interrupts the circuit using the magnetic field of an energised coil. The heat that develops when there is continuous overload causes the bimetal to warp, which trips the breaker. The miniature circuit-breaker series DLS 6 has a wide selection of different types for a number of application areas. In addition to switches for residential and purpose-built buildings, it also contains switches for industrial applications. The compact design provides lots of space for the wiring and the large clamping area, as well as the option of using conventional wiring rails for easy processing. The series also has a large, folding label window and a clearly labelled display for the operating status. A number of additional devices, such as undervoltage or operating current trips and auxiliary and fault indicator switches, make universal use of the miniature circuit-breakers possible. The DLS 6h design for workshops has a rated short-circuit connection and disconnection capacity of 6 kA designed for distribution board and final circuits and a large selection of rated currents in characteristics B and C. Miniature circuit-breakers with characteristic C are primarily suitable for power circuits with high switch-on or peak currents, as their short-circuit trip value is five to ten times the rated current. They replace the former G characteristic.
