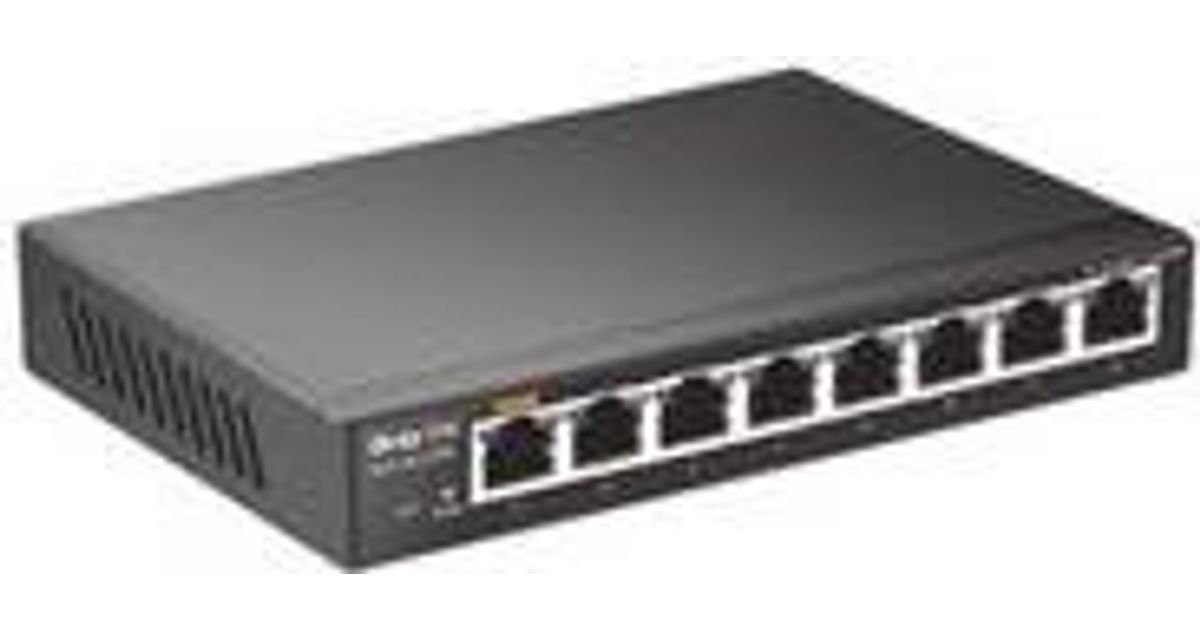

Draytek VigorSwitch G1080 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Draytek VigorSwitch G1080, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Draytek |
| Product code | 16750909 |
| EAN | 04712909124201 |
| Manufacturer part number | VSWITCHG1080 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Traffic shaping | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| User operation log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Quick start guide | Y |
| User guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| IP routing | Y |
| Policy-based routing | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC, CE, RoHS |
| Data transmission | |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Y |
| Number of queues | 4 |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Security | |
|---|---|
| DHCP features | DHCP client,DHCP server,DHCPv6 client,DHCPv6 server |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Static port security | N |
| SSH/SSL support | Y |
| IP-MAC-Port binding | Y |
| Password protection | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Product colour | Black |
| Reset button | Y |
| LED indicators | Y |
| Power | |
|---|---|
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 3.3 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 154 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 320 g |
| Packaging content | |
|---|---|
| Manual | Y |
| Packaging data | |
|---|---|
| Package type | Box |
Product Description
Small Size, Great Performance
DrayTek VigorSwitch G1080 is an extremely compact 8-port smart lite Gigabit switch. It provides basic management including 802.1q VLAN, 802.1p CoS QoS, Link Aggregation, Storm Control, and Loop Prevention. Perfect for Smart home/SOHO with needs of network efficiency and security.
802.1q VLAN
Partition the local network by 802.1q tag to increase data efficiency and security.
Link Aggregation
Combing Port 7 and 8 to increase network throughput.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
DrayTek VigorSwitch G1080 is an extremely compact 8-port smart lite Gigabit switch. It provides basic management including 802.1q VLAN, 802.1p CoS QoS, Link Aggregation, Storm Control, and Loop Prevention. Perfect for Smart home/SOHO with needs of network efficiency and security.
802.1q VLAN
Partition the local network by 802.1q tag to increase data efficiency and security.
Link Aggregation
Combing Port 7 and 8 to increase network throughput.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
