For illustrative purpose only

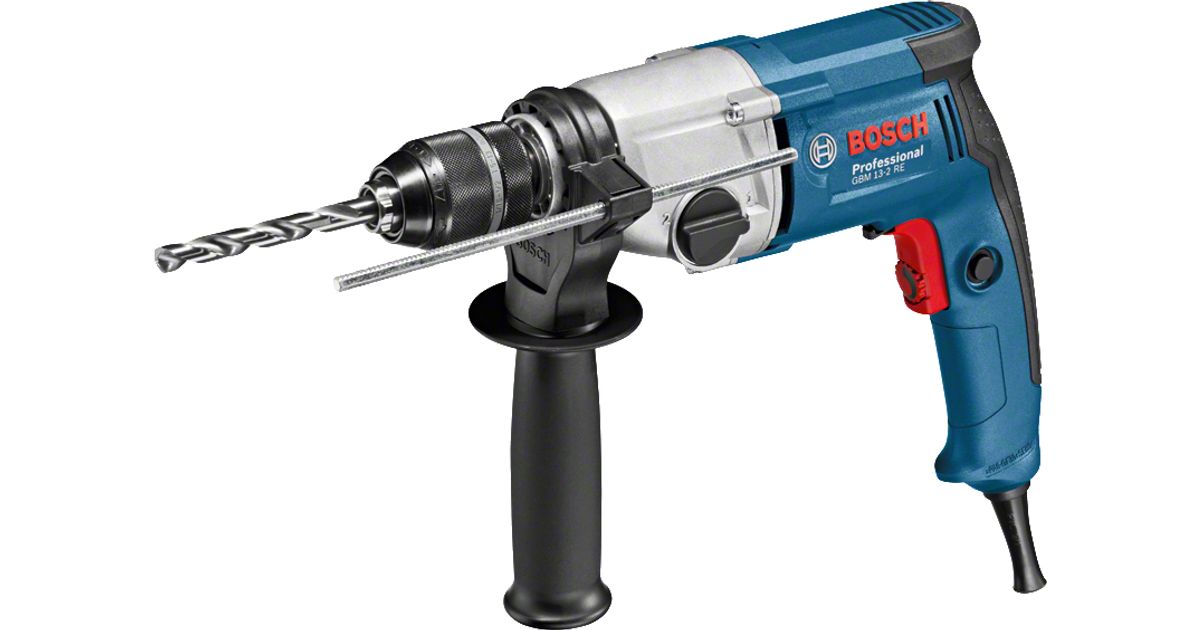

Drill Bosch GBM 13-2 RE, High precision chuck, 750 W, 0 - 1.000 / 3.000 min.-1
Bosch 0 601 1B2 002, Keyless, II, 1.3 cm, 500 RPM, 3.2 cm, 1.3 cm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Bosch |
| Product code | 16747041 |
| EAN | 03165140797931 |
| Manufacturer part number | BO06011B2002 |
| Category | Impact drills |
| Features | |
|---|---|
| Chuck type | Keyless |
| Adjustable speed | Y |
| Reverse | Y |
| Protection class | II |
| Soft grip | Y |
| Number of gears | 2 |
| Output power | 353 W |
| Performance | |
|---|---|
| Chuck capacity (max) | 1.3 cm |
| Idle speed (max) | 500 RPM |
| Drilling diameter in wood (max) | 3.2 cm |
| Drilling diameter in steel (max) | 1.3 cm |
| Chuck capacity (min) | 1 mm |
| Idle speed (1st gear) | 1000 RPM |
| Idle speed (2nd gear) | 3000 RPM |
| Torque (max) | 39.5 N⋅m |
| Drilling diameter in aluminium (max) | 2 cm |
| Sound power level | 93 dB |
| Sound pressure level | 82 dB |
| Sound level uncertainty | 3 dB |
| Vibration level (metal drilling) | 7.5 m/s² |
| Power | |
|---|---|
| Power source | AC |
| Input power | 750 W |
| AC input voltage | 220-230 V |
| AC input frequency | 50 - 60 Hz |
| Other features | |
|---|---|
| Uncertainty K | 1.5 m/s² |
| Safety slip clutch | Y |
| Design | |
|---|---|
| Product colour | Black, Blue |
| Weight & dimensions | |
|---|---|
| Weight | 2.4 kg |
| Depth | 320 mm |
| Height | 220 mm |
| Packaging content | |
|---|---|
| Auxiliary handle | Y |
Product Description
Why this tool?
- Control Electronic for precise drilling starts
- Drill bit is prevented from slipping through thanks to high clamping force and automatic retightening during drilling (only on precision chuck versions)
- Overload clutch to protect the user and the machine
- Small width across corners of 29 mm
- Spindle collar diameter of 43 mm (European standard) – can be used in drill stands
- Fully ball and roller bearing-mounted for long lifetime and precise working
- Forward/reverse rotation
- Speed preselection with setting wheel
- A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
- Precise work results due to compact, ergonomic design and metal keyless chuck
- Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel
- Control Electronic for precise drilling starts
- Drill bit is prevented from slipping through thanks to high clamping force and automatic retightening during drilling (only on precision chuck versions)
- Overload clutch to protect the user and the machine
- Small width across corners of 29 mm
- Spindle collar diameter of 43 mm (European standard) – can be used in drill stands
- Fully ball and roller bearing-mounted for long lifetime and precise working
- Forward/reverse rotation
- Speed preselection with setting wheel
- A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
- Precise work results due to compact, ergonomic design and metal keyless chuck
- Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel
