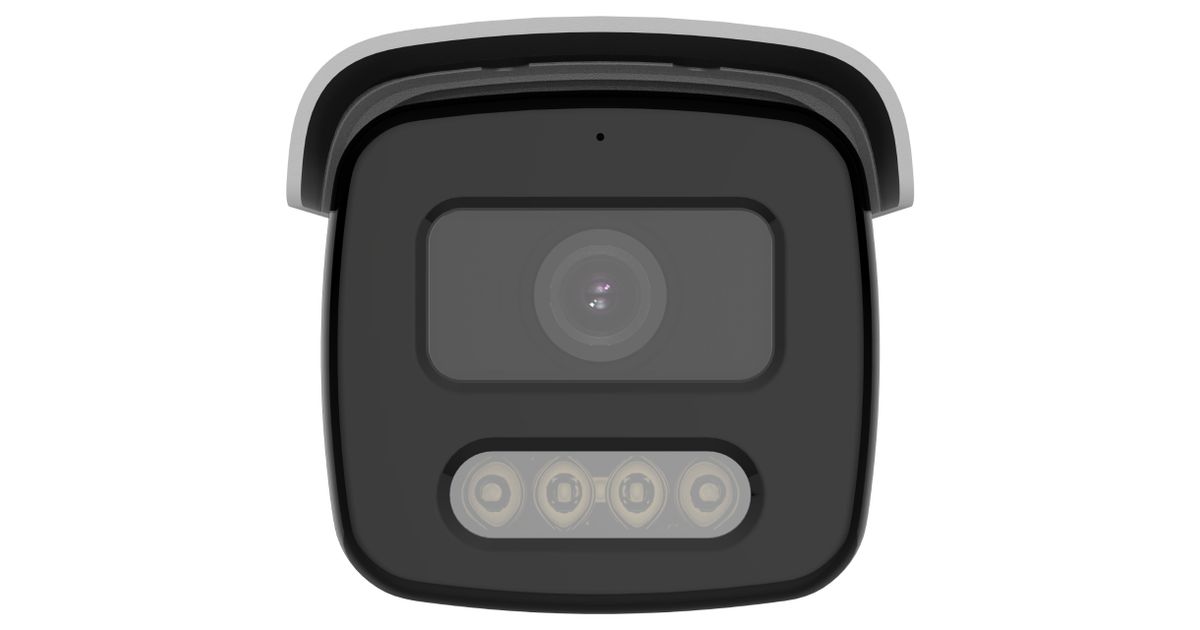

For illustrative purpose only
*DS-2CD2T47G2-LSU/SL IP Camera
Manufacturer:
Hikvision Digital Technology
Product Code: 727238716
EAN: 06931847126636
MPN: MOHIKKAMP000623
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 727238716 |
| EAN | 06931847126636 |
| Manufacturer part number | MOHIKKAMP000623 |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Built-in light | Y |
| Protection features | Dust resistant,Water resistant |
| Supported graphics resolutions | 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Dynamic range | 130 |
| Number of users | 32 |
| Power source type | DC,PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Reset button | Y |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Minimum illumination | 0.005 |
| Lens viewing angle, horizontal | 111.9 |
| Lens viewing angle, diagonal | 133.6 |
| Pan range | 0 - 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Live view | Y |
| Ergonomics | |
|---|---|
| Angle of rotation | 360 |
| Tilt angle range | 0 - 90 |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 60.5 |
| Number of lenses | 1 |
| Maximum aperture number | 1 |
| Fixed focal length | 2.8 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 |
| Progressive scan | Y |
| Graphics | |
|---|---|
| Maximum resolution | 2688 x 1520 |
| Video | |
|---|---|
| Total megapixels | 4 |
| Frame rate | 30 |
| Image quality adjustment | Brightness,Contrast,DNR,Saturation,Sharpness |
| Privacy masking | Y |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 16 Mbps |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+ |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Audio system | 2-way |
| Built-in microphone | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| User access level | Administrator,Operator,User |
| Number of simultaneous live view channels | 6 |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),SDHC,SDXC |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Password protection | Y |
| Active tampering alarm | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Intelligent Video Surveillance (IVS) system features | Scene change |
| Motion sensor | Y |
| Anti-flicker | Y |
| Heartbeat | Y |
| Mirror | Y |
| Password reset via email | Y |
| Pixel counter | Y |
| Flash log | Y |
| Human and vehicle targets classification | Y |
| Audit log | Y |
| Automatic Network Replenishment (ANR) | Y |
| Digest authentication | Y |
| Management features | |
|---|---|
| Web browser | Y |
| Behavior analysis | Intrusion detection,Line crossing detection,Region entrance detection |
| Power | |
|---|---|
| Power consumption (max) | 8 |
| Power consumption (Power over Ethernet (PoE)) | 9 |
| DC output voltage | 12 |
| DC output current | 0.67 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -30 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
|---|---|
| Diameter | 105 |
| Length | 289.5 |
| Weight | 1165 |
| Package weight | 1639 |
| Packaging data | |
|---|---|
| Package width | 386 |
| Package depth | 156 |
| Package height | 155 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
