Eaton 5P650IR uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 420 W 4 AC outlet(s)
Eaton 5P650IR, Line-Interactive, 0.65 kVA, 420 W, Pure sine, 160 V, 294 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 03292969 |
| EAN | 05054444004013 |
| Manufacturer part number | AUEATL1R5P650I1 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.65 kVA |
| Output power | 420 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| ECO mode | N |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Harmonized System (HS) code | 85078000 |
| Input connection type | IEC C14 |
| Power | |
|---|---|
| Efficiency | 98% |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 40 dB |
| USB 2.0 ports quantity | 1 |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Y |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |

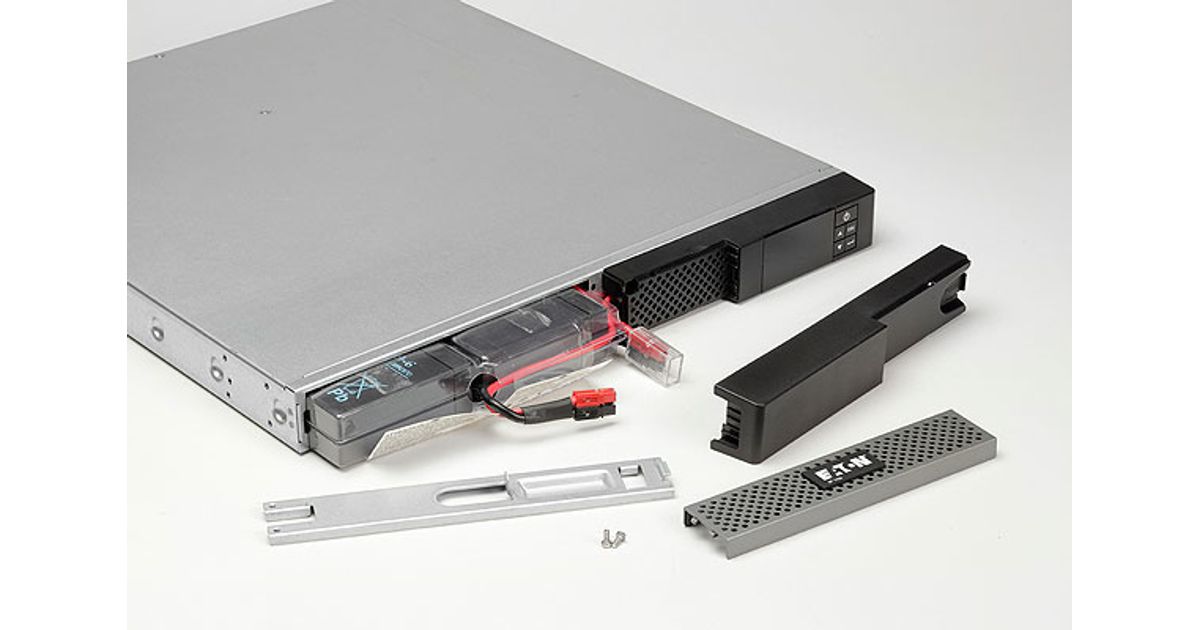

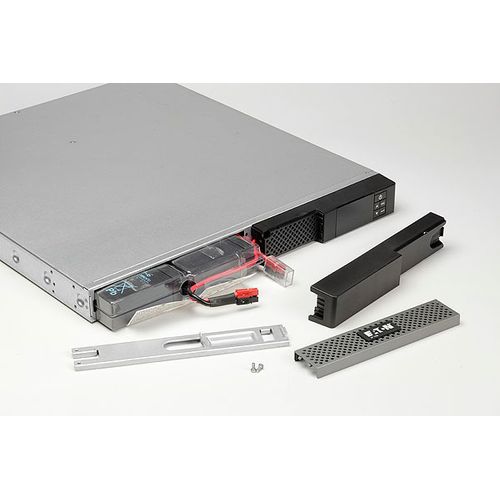

| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 1U |
| Display type | LCD |
| Performance | |
|---|---|
| Safety | IEC/EN 62040-1, UL 1778 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 364 mm |
| Height | 43.2 mm |
| Weight | 8.6 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Management card included | N |
| Software | |
|---|---|
| Bundled software | Intelligent Power Software suite |
| Mac compatibility | N |
Product Description

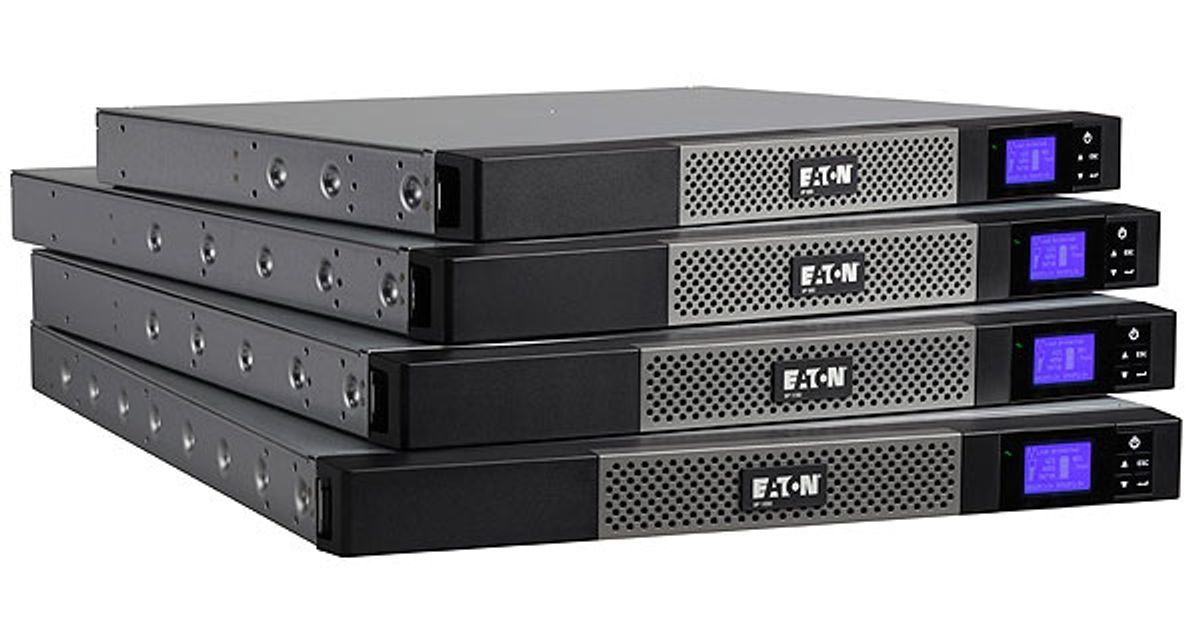

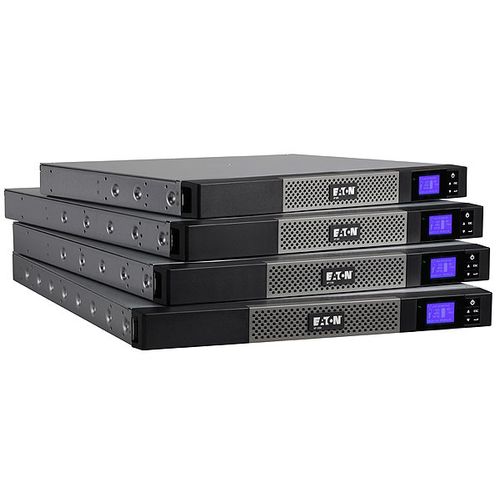

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
Features

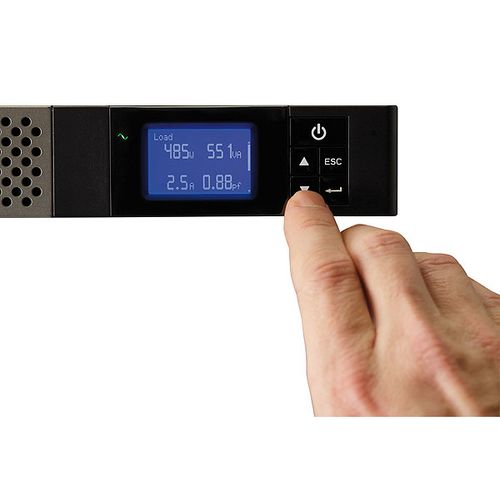

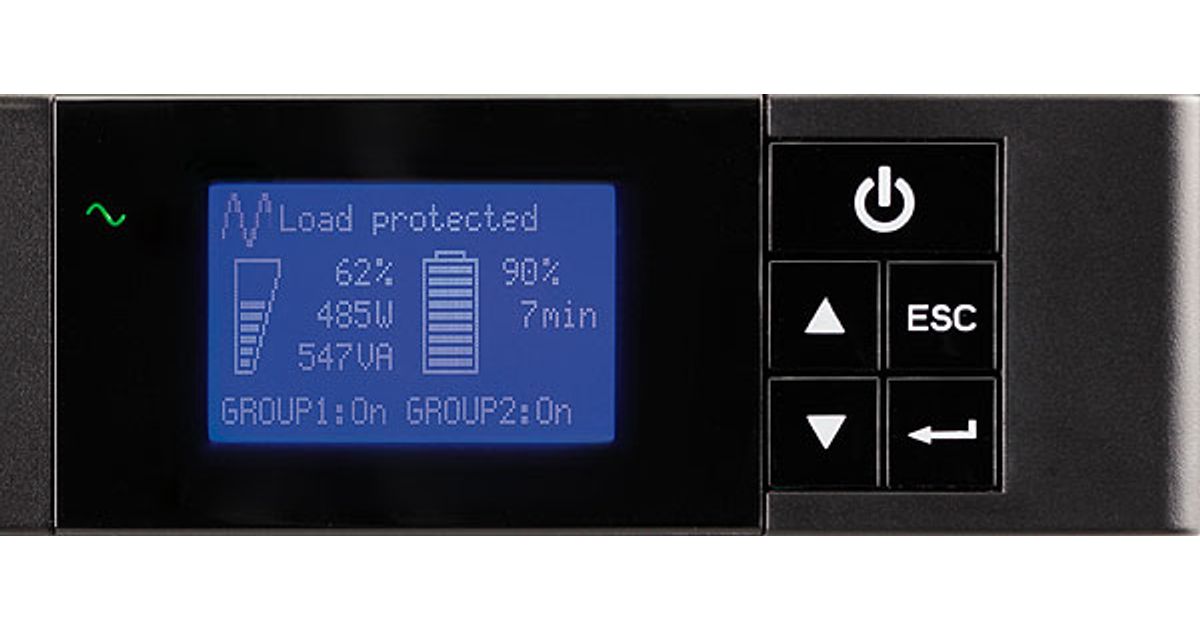

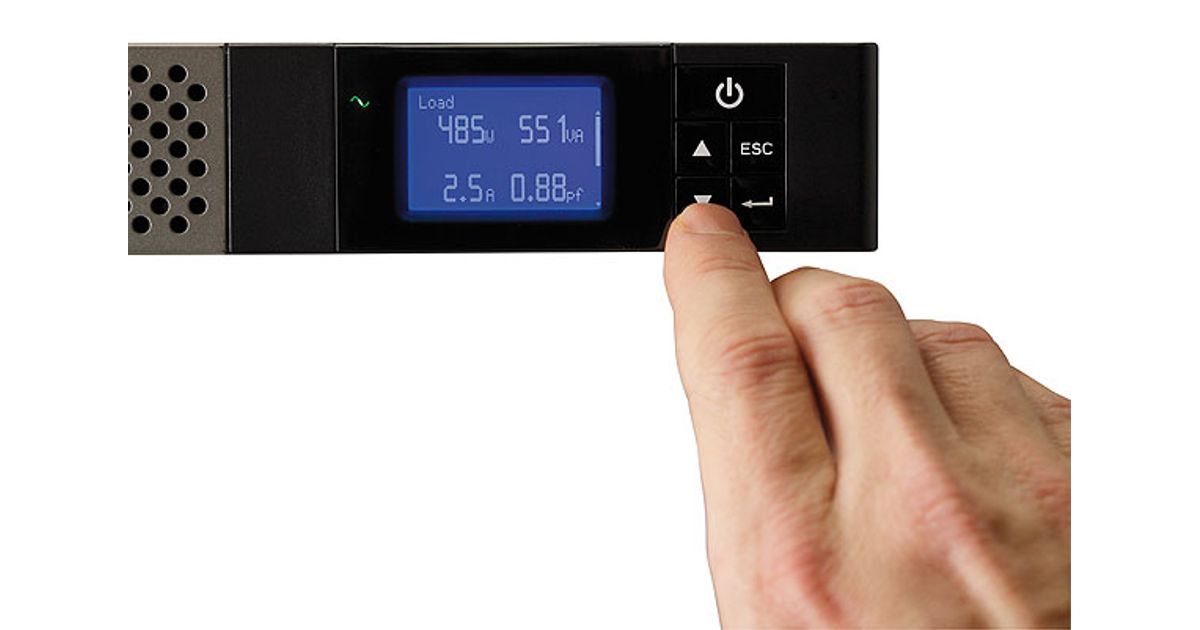

- Next-generation graphical LCD display (7 languages)
- Energy efficient (up to 98% efficiency)
- Energy metering
- Advance Battery Management (ABM)
- Switched outlet groups
- Sinewave output
- Wide communication offer (compatible with virtual environment)
Features
- Next-generation graphical LCD display (7 languages)
- Energy efficient (up to 98% efficiency)
- Energy metering
- Advance Battery Management (ABM)
- Switched outlet groups
- Sinewave output
- Wide communication offer (compatible with virtual environment)
