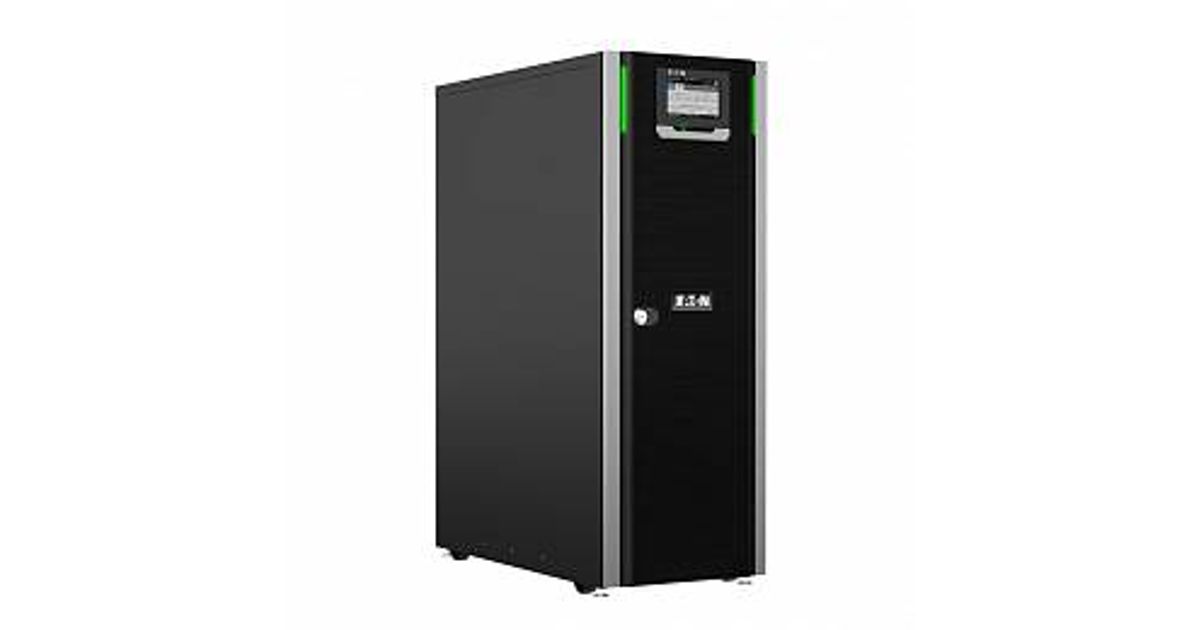

Eaton 91PS-8(10)-1x9Ah-MBS Double-conversion (Online) 8 kVA 8000 W
Eaton 91PS-8(10)-1x9Ah-MBS, Double-conversion (Online), 8 kVA, 8000 W, 220 V, 415 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 187478081 |
| EAN | 06430028229482 |
| Manufacturer part number | 91PS8MBSI |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Number of input phases | 1/3 |
| Efficiency (On-line mode) | 96% |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 1.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Certification | IEC 62040-1 IEC 62040-2 IEC 62040-3 |
| Power | |
|---|---|
| Power factor | 1 |
| Other features | |
|---|---|
| Noise level | 54 dB |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 192 |
| Battery life (max) | 5 year(s) |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 2000 m |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | RoHS, WEEE |
| Weight & dimensions | |
|---|---|
| Width | 335 mm |
| Depth | 750 mm |
| Height | 950 mm |
| Weight | 158 kg |
Product Description
Lowest total cost of ownership and maximum availability – taking scalability, resiliency,
safety, and efficiency to the next level.
The most advanced UPSs in their power range, the Eaton 91PS and 93PS are ideal for small data centers and other mission - critical applications where efficiency, reliability, safety and scalability are essential.
