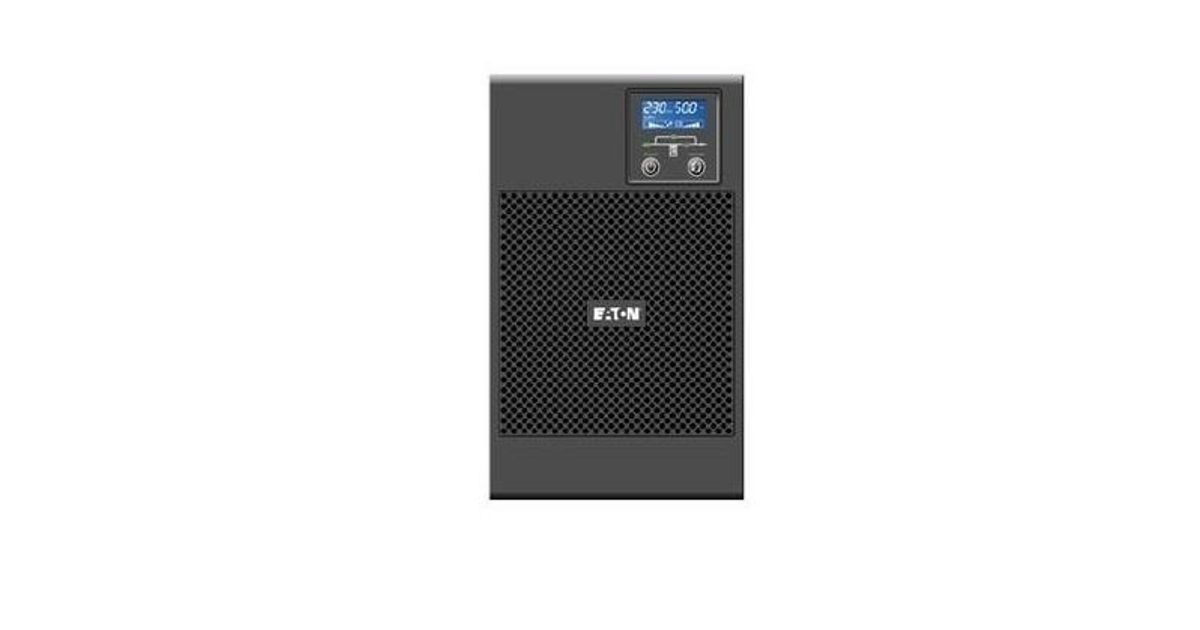

Eaton 9E Double-conversion (Online) 1 kVA 800 W 4 AC outlet(s)
Eaton 9E, Double-conversion (Online), 1 kVA, 800 W, 100 V, 300 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 12319814 |
| EAN | 00786689166601 |
| Manufacturer part number | AUEATO2T9E1000I |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Overload capacity (5 minute) | 150% |
| Overload capacity (1 minute) | 130% |
| Overload capacity (10 seconds) | 150% |
| Certification | IEC/EN 62040 -2, CE, CB report (TUV) |
| Power | |
|---|---|
| Efficiency | 91% |
| Other features | |
|---|---|
| Noise level | 37 dB |
| Ports & interfaces | |
|---|---|
| AC outlet types | IEC 320 |
| Power plug | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 12 min |
| Performance | |
|---|---|
| Safety | IEC/EN 62040-1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 228 mm |
| Depth | 144 mm |
| Height | 356 mm |
| Weight | 9.5 kg |
Product Description
The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.
