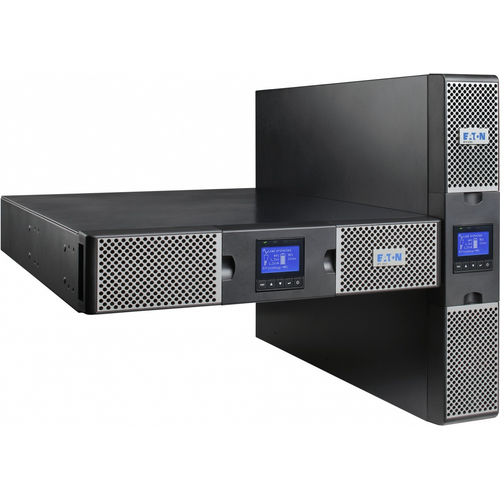

Eaton 9PX 1kVA Double-conversion (Online) 1000 W 8 AC outlet(s)
Eaton 9PX 1kVA, Double-conversion (Online), 1 kVA, 1000 W, Pure sine, 176 V, 276 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 16546747 |
| EAN | 07431720814388 |
| Manufacturer part number | AUEATO2U9PX100N |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 1000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Power protection features | Battery discharge |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Power | |
|---|---|
| Efficiency | 91.5% |
| Power factor | 1 |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 35 dB |
| USB 2.0 ports quantity | 1 |
| Display | LCD |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 6 min |
| Typical backup time at half load | 16.5 min |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| LED indicators | Y |
| Performance | |
|---|---|
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 450 mm |
| Height | 86.5 mm |
| Weight | 17.4 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Management card included | Y |
| Software | |
|---|---|
| Bundled software | Intelligent Power Software suite |
Product Description
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
