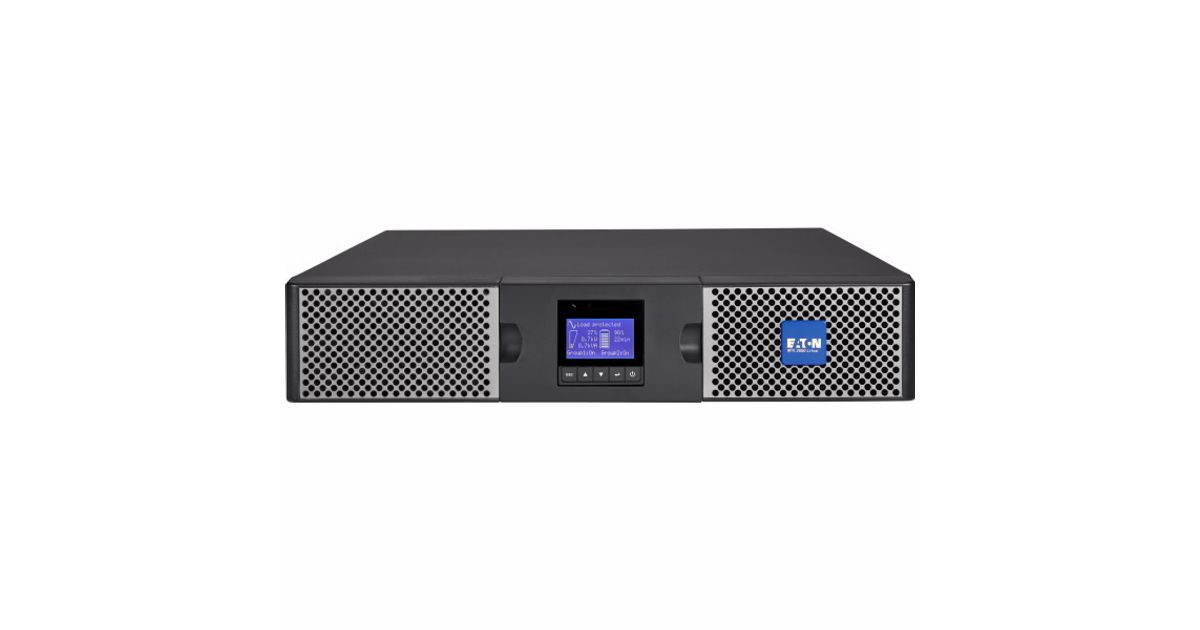

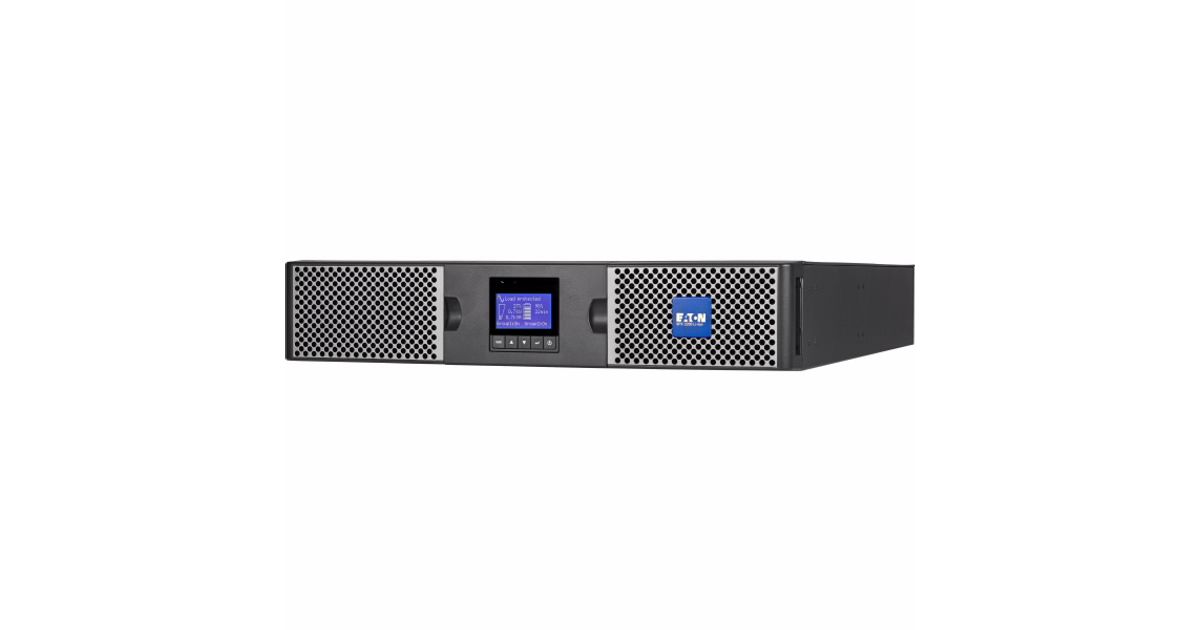

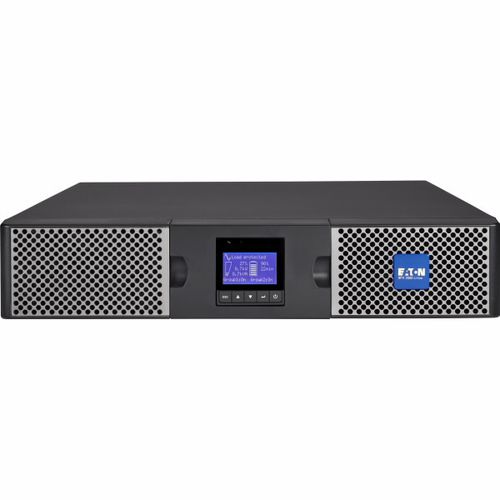

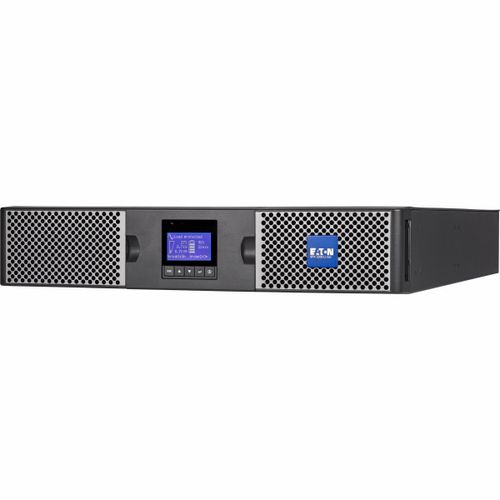

Eaton 9PX 2200i RT2U Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)
Eaton 9PX 2200i RT2U, Double-conversion (Online), 2.2 kVA, 2200 W, Pure sine, 176 V, 276 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 187480705 |
| EAN | 00743172105462 |
| Manufacturer part number | 9PX2200IRT2U-L |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 2200 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Cable length | 1.8 m |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Efficiency | 93.5% |
| Other features | |
|---|---|
| Noise level | 40 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|

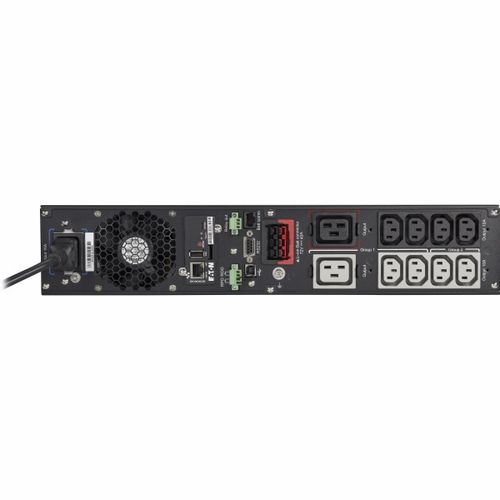

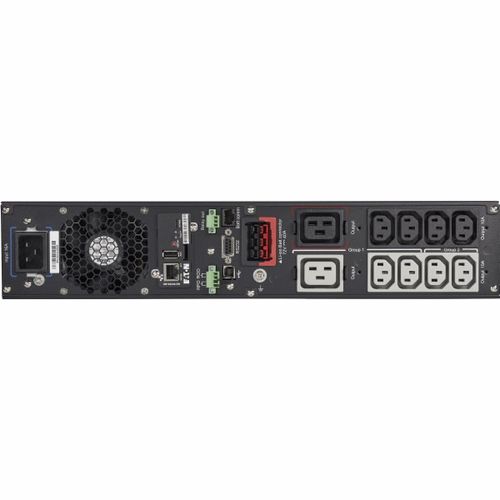

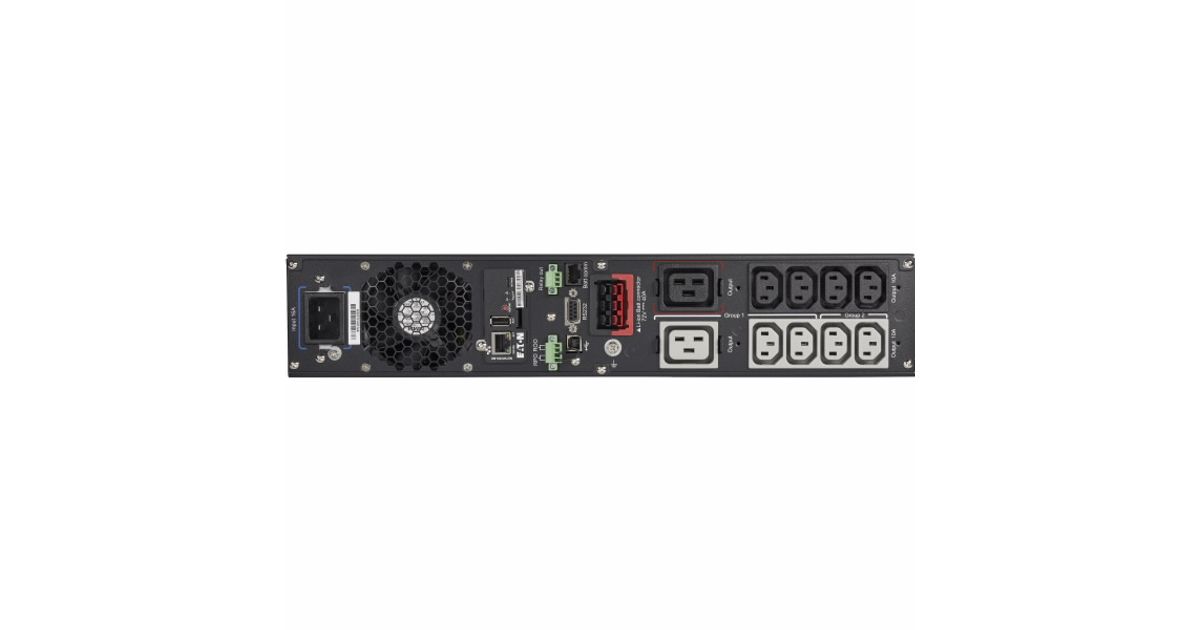

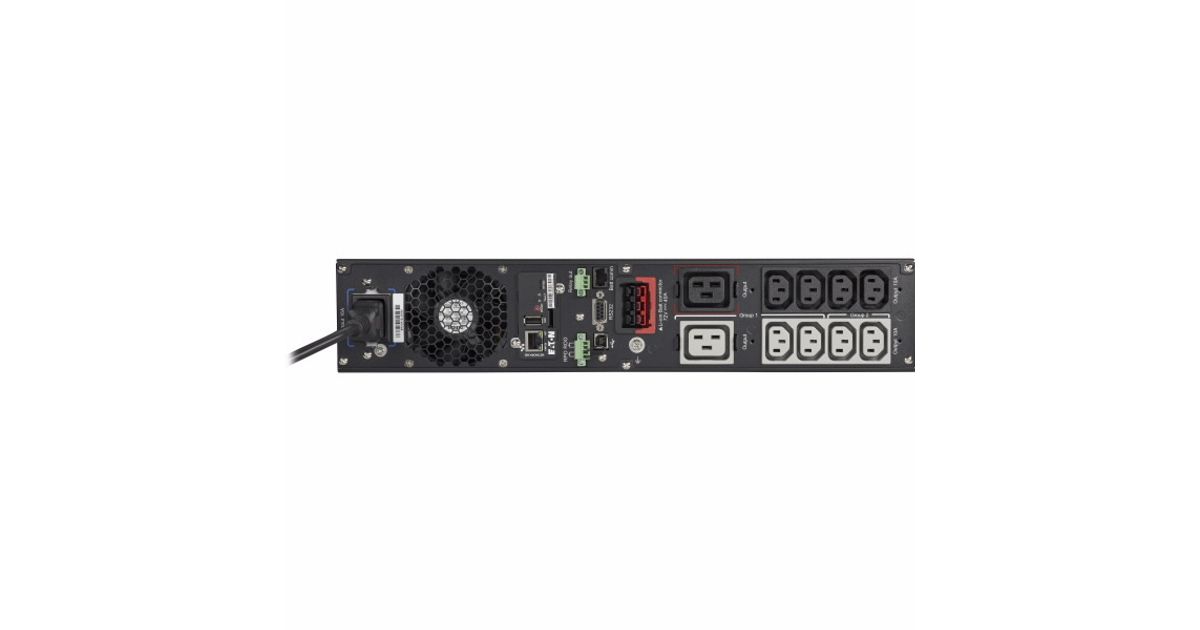

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| USB port | Y |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black, Silver |
| Rack capacity | 2U |
| Display type | LCD |
| LED indicators | Status |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 605 mm |
| Height | 86.5 mm |
| Packaging content | |
|---|---|
| Rack mount kit | N |
Product Description
Eaton 9PX Lithium UPS, 2200VA, 2200W, 8x C13, 2x C19, 2U, Li-Ion
