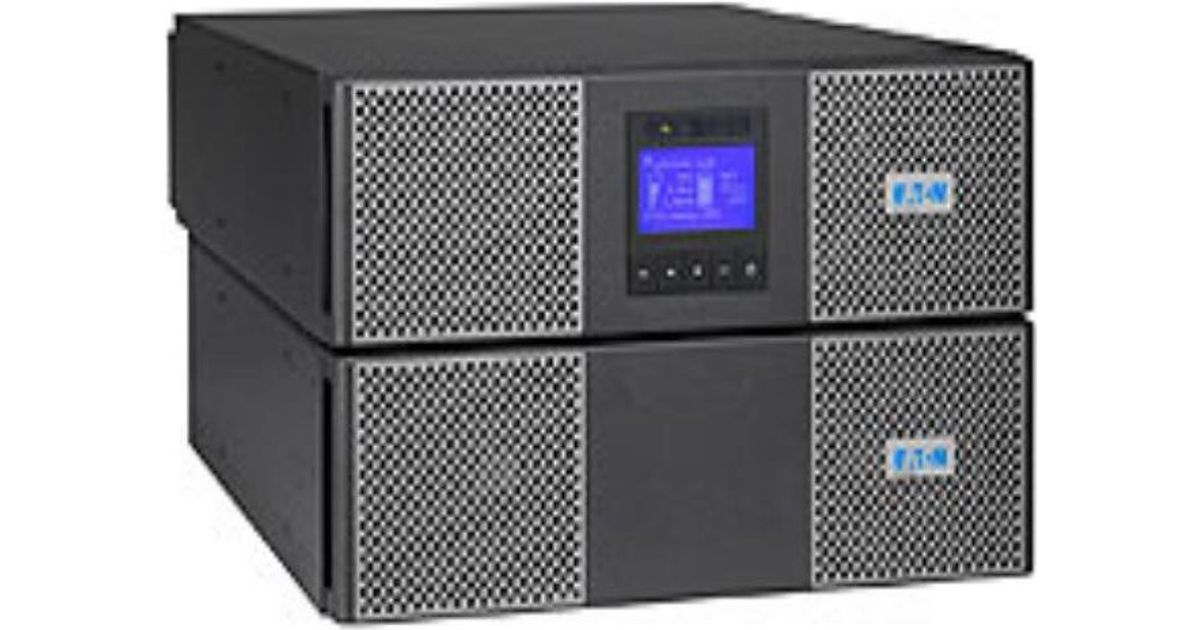

For illustrative purpose only
Eaton 9PX Double-conversion (Online) 11 kVA 10000 W 5 AC outlet(s)
Eaton 9PX, Double-conversion (Online), 11 kVA, 10000 W, Pure sine, 305 V, 480 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 16546628 |
| EAN | 07431720452702 |
| Manufacturer part number | 9PX11KiRTNBP31 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 11 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 305 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Certification | IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Power | |
|---|---|
| Efficiency | 0.95% |
| Power factor | 0.9 |
| Nominal input voltage | 400 V |
| Other features | |
|---|---|
| Noise level | 50 dB |
| USB 2.0 ports quantity | 1 |
| Display | LCD |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C19 coupler, Terminal |
| Power plug | Terminal |
| AC outlets quantity | 5 AC outlet(s) |
| USB port | Y |
| RS-232 ports | 1 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 6U |
| Cooling type | Active |
| LED indicators | Y |
| Performance | |
|---|---|
| Built-in fan | Y |
| Safety | IEC/EN 62040-1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 700 mm |
| Height | 260 mm |
| Weight | 88 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Management card included | Y |
| Software | |
|---|---|
| Bundled software | Intelligent Power Software suite |
Product Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
