For illustrative purpose only

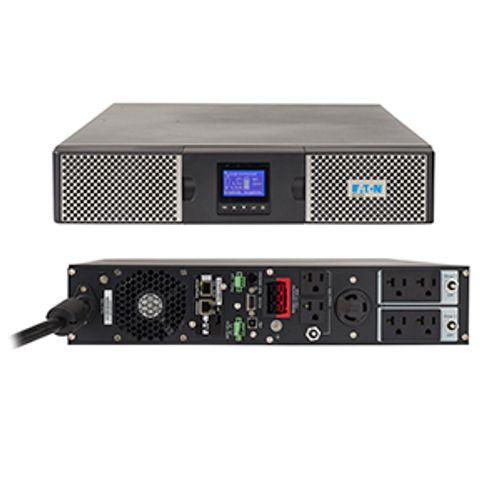

Eaton 9PX3000RT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)
Eaton 9PX3000RT, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 100 V, 144 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 187476933 |
| EAN | 00743172081285 |
| Manufacturer part number | 9PX3000RT |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 144 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Surge protection | Y |
| Surge protection features | Network |
| Auto-restart | Y |
| Cable length | 2.44 m |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Efficiency | 91% |
| Nominal input voltage | 120 V |
| Other features | |
|---|---|
| Noise level | 47 dB |
| USB 2.0 ports quantity | 1 |
| Nominal output voltage | 120 V |
| Management features | |
|---|---|
| Web-based management | Y |
| Ports & interfaces | |
|---|---|
| AC outlet types | NEMA 5–20R, NEMA L5-30R |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Display type | LCD |
| LED indicators | Y |
| Performance | |
|---|---|
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Storage relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 605 mm |
| Height | 86.5 mm |
| Weight | 28.6 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Bracket | Y |
| Management card included | N |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | RS-232, USB cable |
| Manual | Y |
Product Description
Business continuity for edge computing
When you need flexible protection for equipment in IT racks, network closets and mission-critical applications, look no further than the Eaton® 9PX UPS. Providing solutions that are reliable,
versatile, powerful and efficient, the 9PX integrates seamlessly
into just about any environment.
With double-conversion topology for constant power conditioning and ENERGY STAR qualification, the 9PX supports your overall goal of business continuity. It’s also built for scalable deployment and features a graphical LCD interface that enables local access to configurations and settings, history and diagnostics, energy consumption and load segment control.
Take a closer look
As a stand-alone, online double-conversion UPS, 9PX rack/ tower (RT) models can withstand harsh electrical environments for a variety of critical applications including IT, edge networks, industrial automation, healthcare and K-12. For edge networks and on-premise installations, Eaton focuses on integration within the virtualized environment. This means you can improve your infrastructure performance through virtual machine (VM) centric management, disaster recovery and validated integration capabilities.
The right 9PX solution may also include a software client that supports 2N (or N+1) UPS-protected graceful shutdown, a maintenance bypass to keep loads running during UPS replacement, or a rack to organize all of your IT equipment and cabling. It’s all about ensuring seamless integration and compatibility.
When you need flexible protection for equipment in IT racks, network closets and mission-critical applications, look no further than the Eaton® 9PX UPS. Providing solutions that are reliable,
versatile, powerful and efficient, the 9PX integrates seamlessly
into just about any environment.
With double-conversion topology for constant power conditioning and ENERGY STAR qualification, the 9PX supports your overall goal of business continuity. It’s also built for scalable deployment and features a graphical LCD interface that enables local access to configurations and settings, history and diagnostics, energy consumption and load segment control.
Take a closer look
As a stand-alone, online double-conversion UPS, 9PX rack/ tower (RT) models can withstand harsh electrical environments for a variety of critical applications including IT, edge networks, industrial automation, healthcare and K-12. For edge networks and on-premise installations, Eaton focuses on integration within the virtualized environment. This means you can improve your infrastructure performance through virtual machine (VM) centric management, disaster recovery and validated integration capabilities.
The right 9PX solution may also include a software client that supports 2N (or N+1) UPS-protected graceful shutdown, a maintenance bypass to keep loads running during UPS replacement, or a rack to organize all of your IT equipment and cabling. It’s all about ensuring seamless integration and compatibility.
