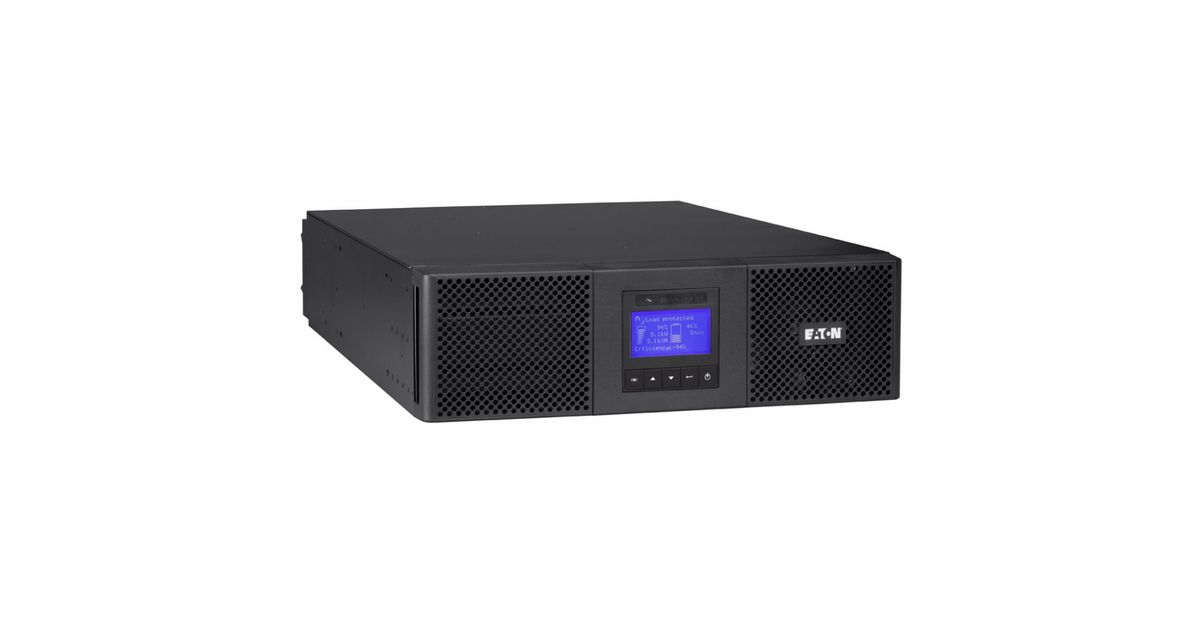

Eaton 9SX11KiPM Double-conversion (Online) 11 kVA 10000 W
Eaton 9SX11KiPM, Double-conversion (Online), 11 kVA, 10000 W, Sine, 100 V, 276 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 187475611 |
| EAN | 00743172039392 |
| Manufacturer part number | 9SX11KIPM |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 11 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 250 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (ECO mode) | 98% |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| ECO mode | Y |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE cULus, EAC |
| Power | |
|---|---|
| Efficiency | 95% |
| Other features | |
|---|---|
| Noise level | 50 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 12 |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 3U |
| Display type | LCD |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Width | 130 mm |
| Depth | 700 mm |
| Height | 440 mm |
| Weight | 21 kg |
| Packaging content | |
|---|---|
| Cables included | Serial, USB cable |
| Manual | Y |
Product Description
11 kVA, 10 kW, 200-250V, 50/60Hz, 3U, LCD, 130x700x440mm, 21kg
