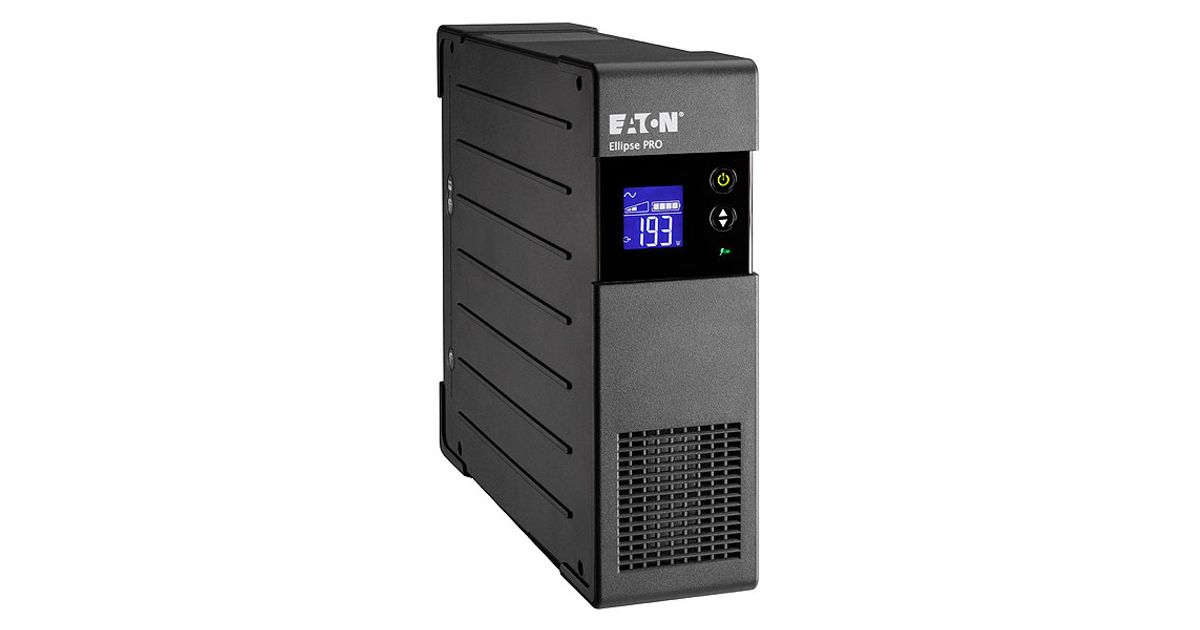

Eaton Ellipse PRO 850 IEC Line-Interactive 0.85 kVA 510 W 4 AC outlet(s)
Eaton Ellipse PRO 850 IEC, Line-Interactive, 0.85 kVA, 510 W, 150 V, 285 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 03197135 |
| EAN | 00743172437648 |
| Manufacturer part number | ELP850IEC |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.85 kVA |
| Output power | 510 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50 Hz |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Surge protection features | Fax, Modem, Network, Telephone |
| Harmonized System (HS) code | 85078000 |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |

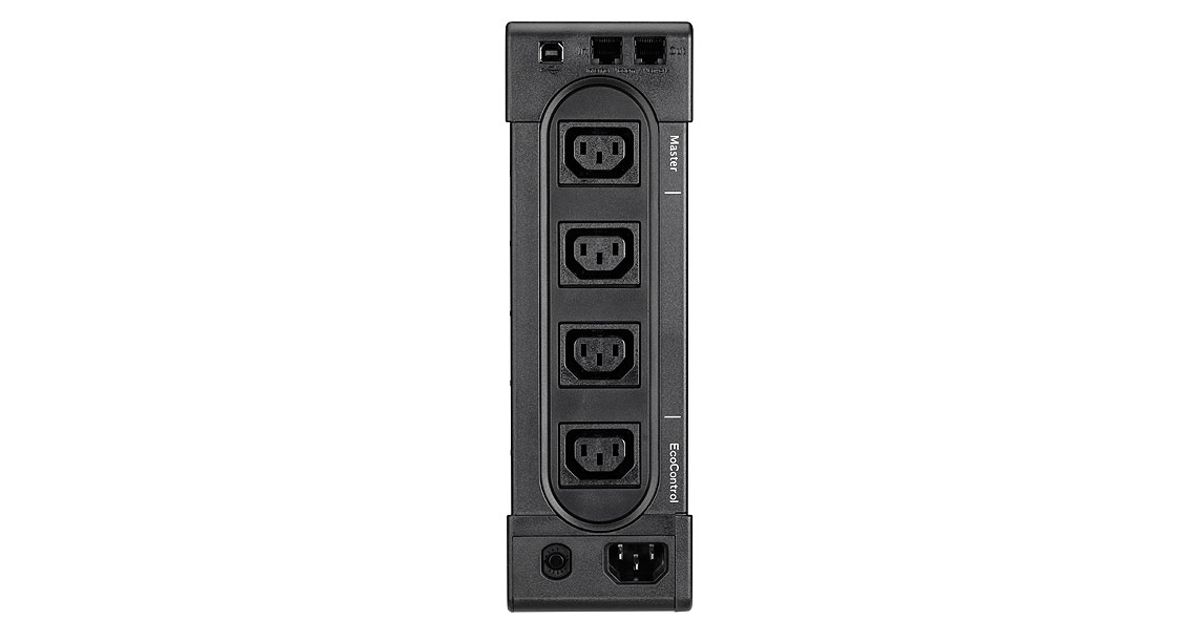

| AC outlets quantity | 4 AC outlet(s) |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 9 min |
| Hot-swap battery | N |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Display type | LCD |
| LED indicators | Y |
| Performance | |
|---|---|
| Safety | IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 285 mm |
| Height | 260 mm |
| Weight | 7.3 kg |
| Power | |
|---|---|
| Nominal input voltage | 230 V |
Product Description
The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

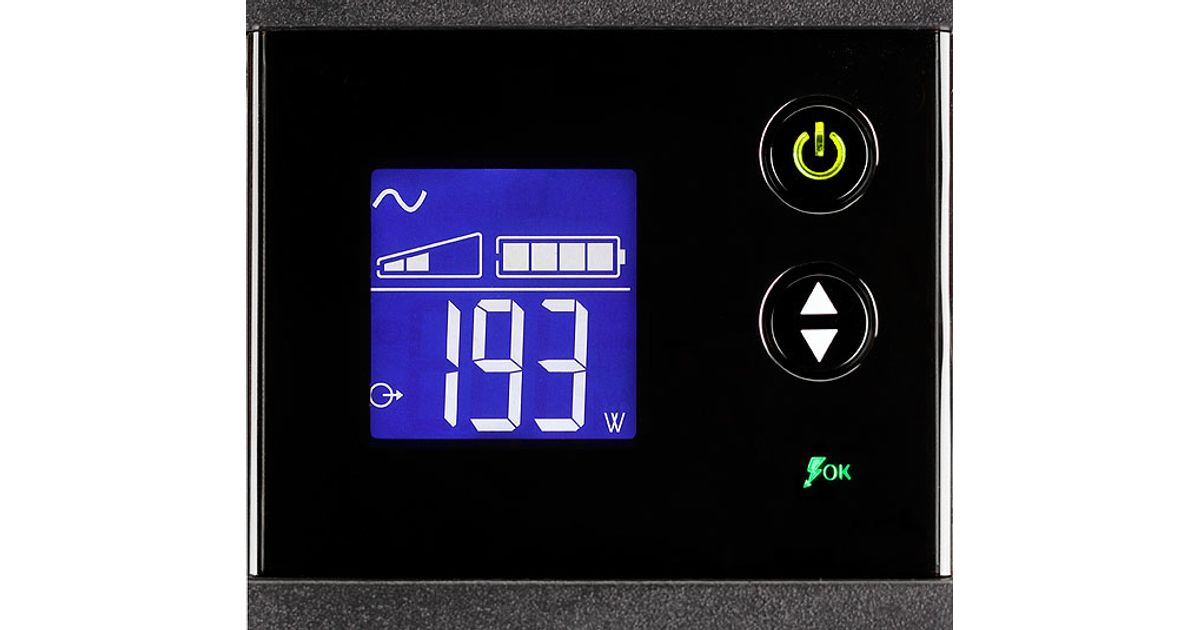

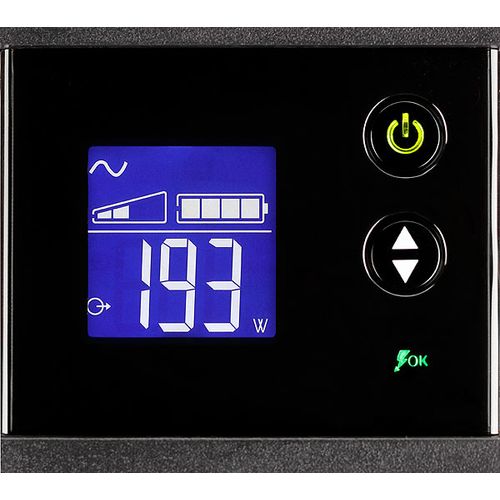

- LCD display for real-time status and measurements.
- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
- Up to 8 outlets to connect your PC & peripherals.
- Convenient extra-flat design for easy installation in any office environment.
- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
- Protects data connections such as Ethernet, internet and telephone lines.
- LCD display for real-time status and measurements.
- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
- Up to 8 outlets to connect your PC & peripherals.
- Convenient extra-flat design for easy installation in any office environment.
- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
- Protects data connections such as Ethernet, internet and telephone lines.
