Eaton FlexPDU 8 FR power distribution unit (PDU) 9 AC outlet(s) 1U Black
Eaton FlexPDU 8 FR, Basic, 1U, Single-phase, Rackmount, Horizontal/Vertical, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Eaton |
| Product code | 369220300 |
| EAN | 03553340684241 |
| Manufacturer part number | EFLX8F |
| Design | |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Form factor | Rackmount |
| Rack mounting | Y |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Features | |
|---|---|
| Type | Single-phase |
| Cable colour | Black |
| Certification | CE |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | Type E |
| Power plug | C20 coupler |
| Master AC outlets quantity | 8 |
| Other features | |
|---|---|
| Output connections | 8 x Type E |
| Nominal output voltage | 230 V |
| Dimensions (WxDxH) | 483 x 80 x 44 mm |
| Power | |
|---|---|
| Nominal input voltage | 230 V |
| Maximum current | 13 A |
| AC input frequency | 50/60 Hz |
| Load capacity | 3000 VA |
| Maximum input current per phase | 13 A |
| Maximum power | 3000 W |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 80 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
| Package weight | 9.5 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Power distribution
The no hassle solution for improving availability and adding flexibility for single phase UPSs.

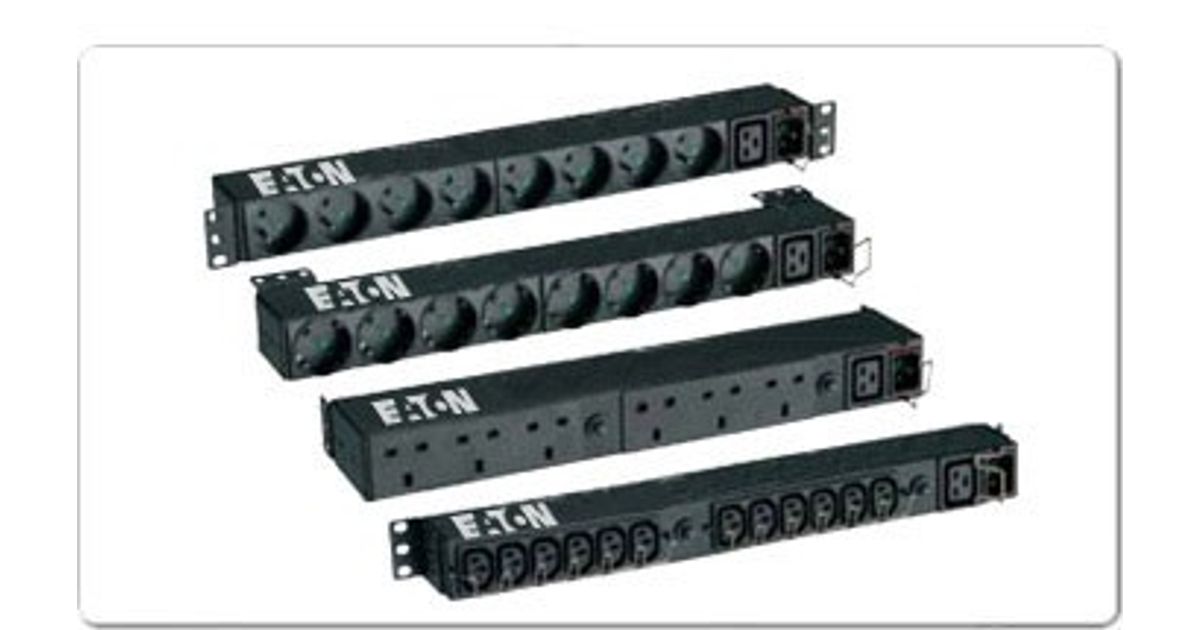

Eaton FlexPDU
Having the right connectors just where you need them
- FlexPDUs (Power Distribution Units) are flexible mounting multiway socket blocks for easy connection of multiple loads either as free-standing or on rack-mounted UPSs
- FlexPDUs have a large number of sockets (8 French sockets, 6 BS sockets or 12 IEC 10 A sockets) which fit into a very compact unit (1U - 19”)
- FlexPDUs are easy to implement into any type of installation: they can be rack mounted horizontally (1U) or vertically or directly onto all Eaton RT format (rack/tower) UPSs Eaton HotSwap MBP
- High availability for all UPSs up to 11 kVA.
- HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.
- HotSwap MBP are available with multiple power ratings:
3000 VA, 6000 VA, 11000 VA, 11000 VA (3 ph Input).
- HotSwap MBP provides compatibility with any UPS now and in the future from Eaton or any other supplier
- The HotSwap MBP 3000 VA is available with different output connectors: French, British, IEC or terminal blocks (Hard-Wired version).
- When used with a 9PX or 9SX the HotSwap MBP 6000 VA and above are providing information on the Bypass status through the UPS LCD screen.
- HotSwap MBP units can be installed as required; at the back, side, top of the UPSs, or rack-mounted.
