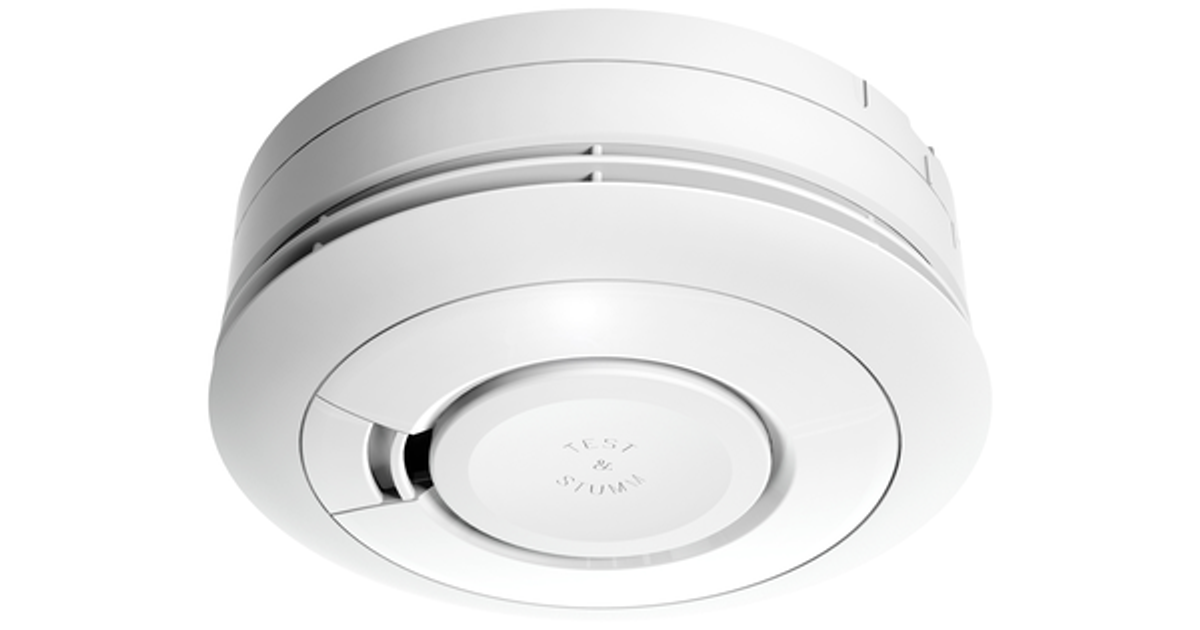

Ei Electronics Ei650RF Optical detector Wireless
Ei Electronics Ei650RF, Battery, 3 V, Lithium, 11.5 cm, 45 mm, 210 g
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Ei Electronics |
| Product code | 899855677 |
| EAN | 05099383005349 |
| Manufacturer part number | 5099383005349 |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Detector type | Optical detector |
| Test button | Y |
| Alarm decibels | 85 dB |
| Product life | 10 year(s) |
| Keyboard | |
|---|---|
| Connectivity technology | Wireless |
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Y |
| Easy to install | Y |
| Power | |
|---|---|
| Power source | Battery |
| Battery | |
|---|---|
| Battery voltage | 3 V |
| Battery technology | Lithium |
| Weight & dimensions | |
|---|---|
| Diameter | 11.5 cm |
| Height | 45 mm |
| Weight | 210 g |
| Package weight | 260 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Packaging data | |
|---|---|
| Package width | 150 mm |
| Package depth | 120 mm |
| Package height | 56 mm |
| Screws included | Y |
Product Description
The Ei650RF optical Smoke Alarm is fitted with a proprietary photoelectric sensor to quickly sense low energy smoke particles. This optical Alarm is sensitive to all domestic fire types but is especially sensitive to smoldering fires.
In standby, there are no visible or audible indicators on the Ei650 range that could disturb the occupant making it ideal for bedrooms and children’s rooms.
It is powered by a sealed 10 year Lithium battery that will last the entire product life in normal conditions of use.
The Ei650RF communicates wirelessly via its preinstalled Ei600MRF RadioLINK+ module with compatible Ei Electronics Alarms and accessories. Up to 12 RF devices can be interconnected.
The Ei650RF is fitted with a large easy to use Test Button to facilitate frequent testing of the Alarm. For better hearing comfort, the sound level of the alarm increases progressively in Test mode. The Test button can also be used to silence nuisance alarms (e.g. cooking fumes) for a 10 minute period.
The Ei650RF self-checks its chamber sensor, battery voltage and internal circuitry every 40 seconds. Any fault condition found will be indicated by a combination of Red LED flashes and/or sound beeps.
The Ei650 range features a high performance optical chamber protected by a sealed mesh screen to reduce insect and dust contamination and EMC protection to reduce false alarms.
The Alarm has a twist on mounting base which has multiple fixing points so it can be easily installed. The Alarm is not powered until it is twisted onto the mounting base, thus avoiding battery power consumption during storage and prior to installation.
In standby, there are no visible or audible indicators on the Ei650 range that could disturb the occupant making it ideal for bedrooms and children’s rooms.
It is powered by a sealed 10 year Lithium battery that will last the entire product life in normal conditions of use.
The Ei650RF communicates wirelessly via its preinstalled Ei600MRF RadioLINK+ module with compatible Ei Electronics Alarms and accessories. Up to 12 RF devices can be interconnected.
The Ei650RF is fitted with a large easy to use Test Button to facilitate frequent testing of the Alarm. For better hearing comfort, the sound level of the alarm increases progressively in Test mode. The Test button can also be used to silence nuisance alarms (e.g. cooking fumes) for a 10 minute period.
The Ei650RF self-checks its chamber sensor, battery voltage and internal circuitry every 40 seconds. Any fault condition found will be indicated by a combination of Red LED flashes and/or sound beeps.
The Ei650 range features a high performance optical chamber protected by a sealed mesh screen to reduce insect and dust contamination and EMC protection to reduce false alarms.
The Alarm has a twist on mounting base which has multiple fixing points so it can be easily installed. The Alarm is not powered until it is twisted onto the mounting base, thus avoiding battery power consumption during storage and prior to installation.
