For illustrative purpose only

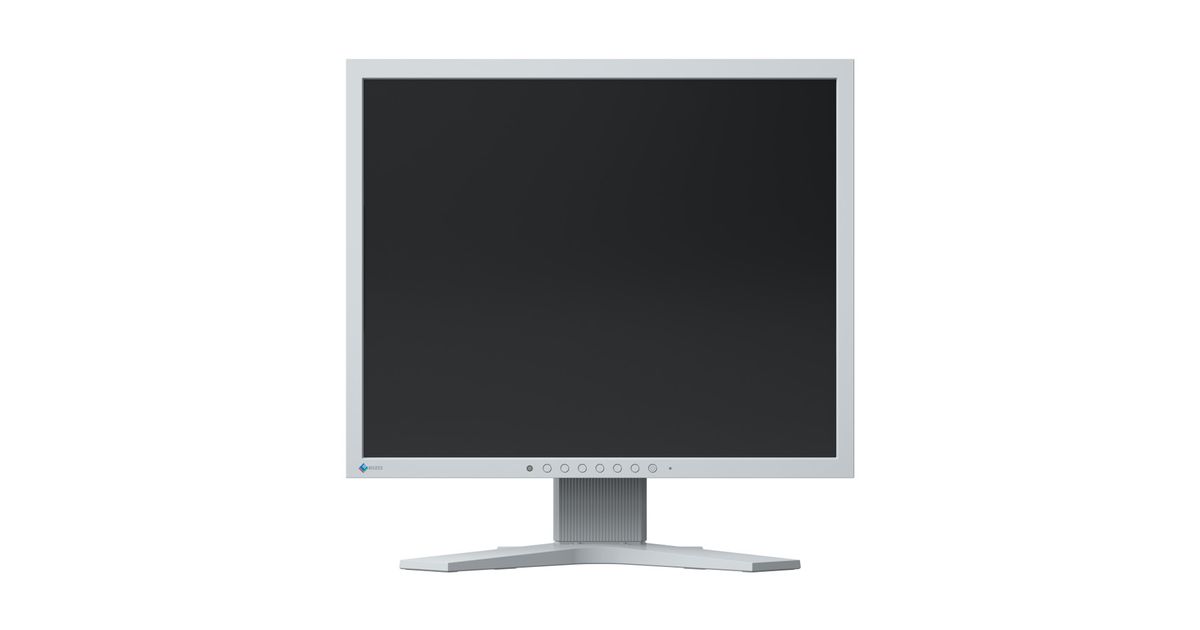

EIZO FlexScan S1934H-GY LED display 48.3 cm (19") 1280 x 1024 pixels SXGA Grey
EIZO FlexScan S1934H-GY, 48.3 cm (19"), 1280 x 1024 pixels, SXGA, LED, 14 ms, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EIZO |
| Product code | 07179174 |
| EAN | 04995047049227 |
| Manufacturer part number | S1934H-GY |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Panel type | IPS |
| HD type | SXGA |
| Display technology | LED |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Display brightness (typical) | 250 cd/m² |
| Response time | 14 ms |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.293 x 0.293 mm |
| Horizontal scan range | 31 - 64 kHz |
| Vertical scan range | 55 - 61 Hz |
| Viewable size, horizontal | 37.5 cm |
| Viewable size, vertical | 30 cm |
| Viewable size diagonal | 48.1 cm |
| Separate H/V sync | Y |
| DDC/CI | Y |
| On Screen Display (OSD) | Y |
| Features | |
|---|---|
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Certification | TCO, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, RoHS, CCC, EAC |
| HDCP | Y |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 10 cm |
| Other features | |
|---|---|
| 3D | N |
| Quick start guide | Y |
| Display | LED |
| Performance | |
|---|---|
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Cable lock slot | N |
| Swivel angle range | -35 - 35° |
| TV tuner integrated | N |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Design | |
|---|---|
| Product colour | Grey |
| On/off switch | Y |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | N |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Y |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Microphone in | Y |
| AC (power) in | Y |
| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| Ergonomics | |
|---|---|
| Height adjustment | Y |
| Pivot | Y |
| Pivot angle | 0 - 90° |
| Swivelling | Y |
| Tiltable | Y |
| Tilt angle range | 0 - 30° |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
| Number of OSD languages | 9 |
| Thin Client | |
|---|---|
| Thin client installed | N |
| Power | |
|---|---|
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 9 kWh |
| Power consumption (typical) | 9.4 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 21 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 405 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 506.5 mm |
| Weight (with stand) | 5.6 kg |
| Width (without stand) | 40.5 cm |
| Depth (without stand) | 6.15 cm |
| Height (without stand) | 33.4 cm |
| Weight (without stand) | 3.8 kg |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | AC, Audio (3.5mm), DVI, VGA |
| Packaging data | |
|---|---|
| User Guide on CD-ROM | Y |
Product Description
Optimized Brightness with Auto EcoView
The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.
IPS Panel with Wide Viewing Angles
The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.
Three Inputs Including DisplayPort
DisplayPort, DVI-D 24-pin, and D-Sub mini 15-pin inputs are included for connection with various graphics boards.
Viewing Comfort with an Ergonomic Stand
Adjust the screen to the most comfortable position with 100 mm height adjustment, 30° tilt, 70° swivel, and 90° rotation for portrait mode. A stand with 30° tilt only is available as an option.
Reduced Blue Light
A preset mode called “Paper” adjusts the brightness, contrast ratio, and color temperature to simulate those of printed paper. Paper mode significantly reduces the amount of blue light emitted from the screen for more comfortable viewing.
Built to Last Five Years
EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1934 is higher than another 19-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
Optional LCD Panel Protector
The FP-1901 protector fits easily between the LCD screen and bezel, has a light transmission rate of more than 90%, and includes both an anti-glare coating side to reduce light reflection and a glossy side for crisper, more vibrant images.
The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.
IPS Panel with Wide Viewing Angles
The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.
Three Inputs Including DisplayPort
DisplayPort, DVI-D 24-pin, and D-Sub mini 15-pin inputs are included for connection with various graphics boards.
Viewing Comfort with an Ergonomic Stand
Adjust the screen to the most comfortable position with 100 mm height adjustment, 30° tilt, 70° swivel, and 90° rotation for portrait mode. A stand with 30° tilt only is available as an option.
Reduced Blue Light
A preset mode called “Paper” adjusts the brightness, contrast ratio, and color temperature to simulate those of printed paper. Paper mode significantly reduces the amount of blue light emitted from the screen for more comfortable viewing.
Built to Last Five Years
EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S1934 is higher than another 19-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
Optional LCD Panel Protector
The FP-1901 protector fits easily between the LCD screen and bezel, has a light transmission rate of more than 90%, and includes both an anti-glare coating side to reduce light reflection and a glossy side for crisper, more vibrant images.
