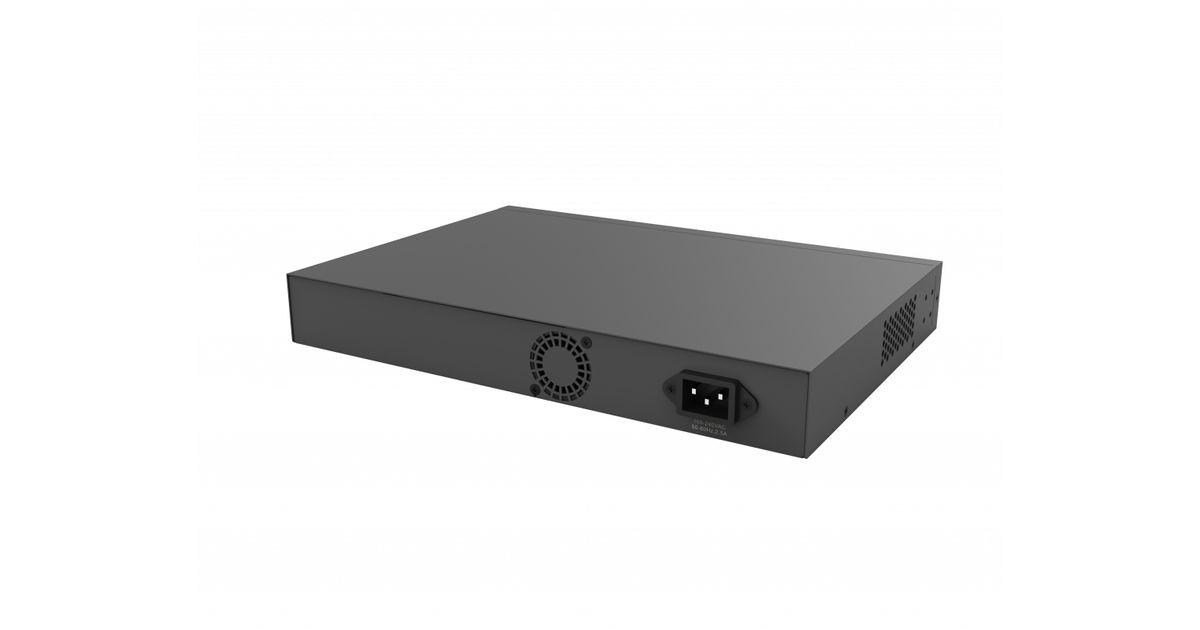

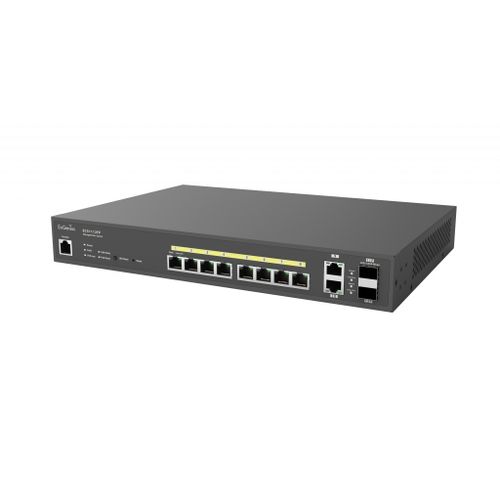

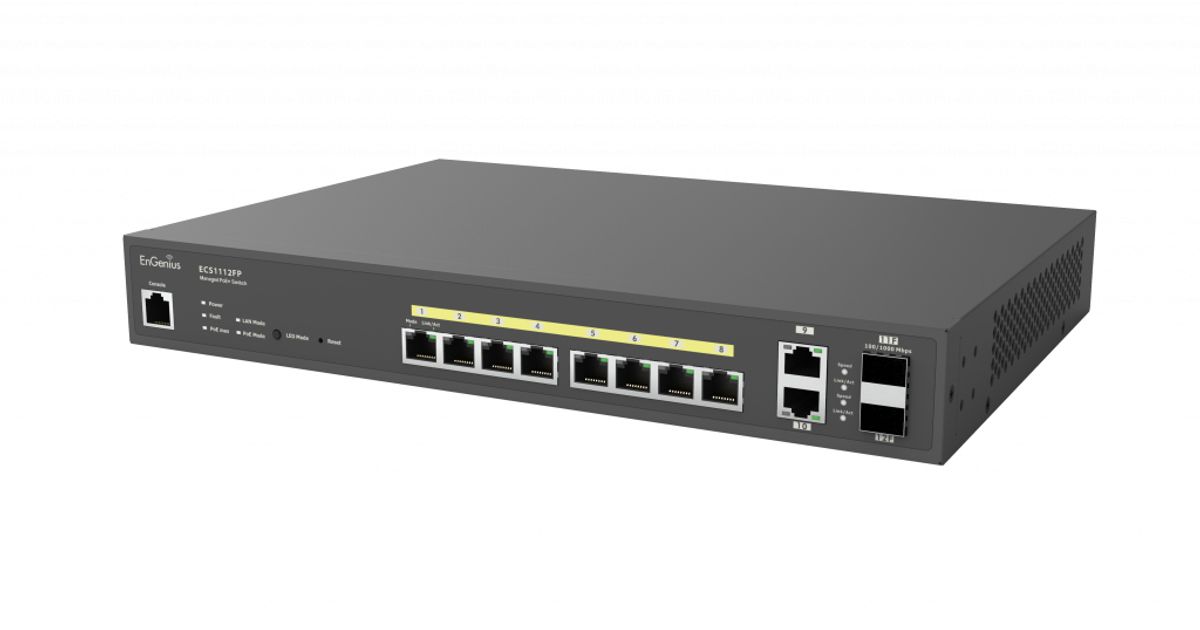

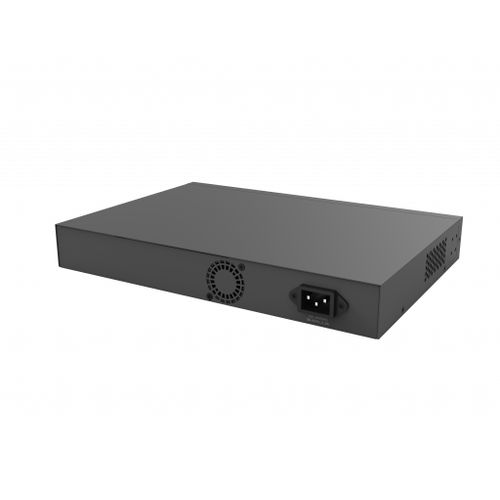

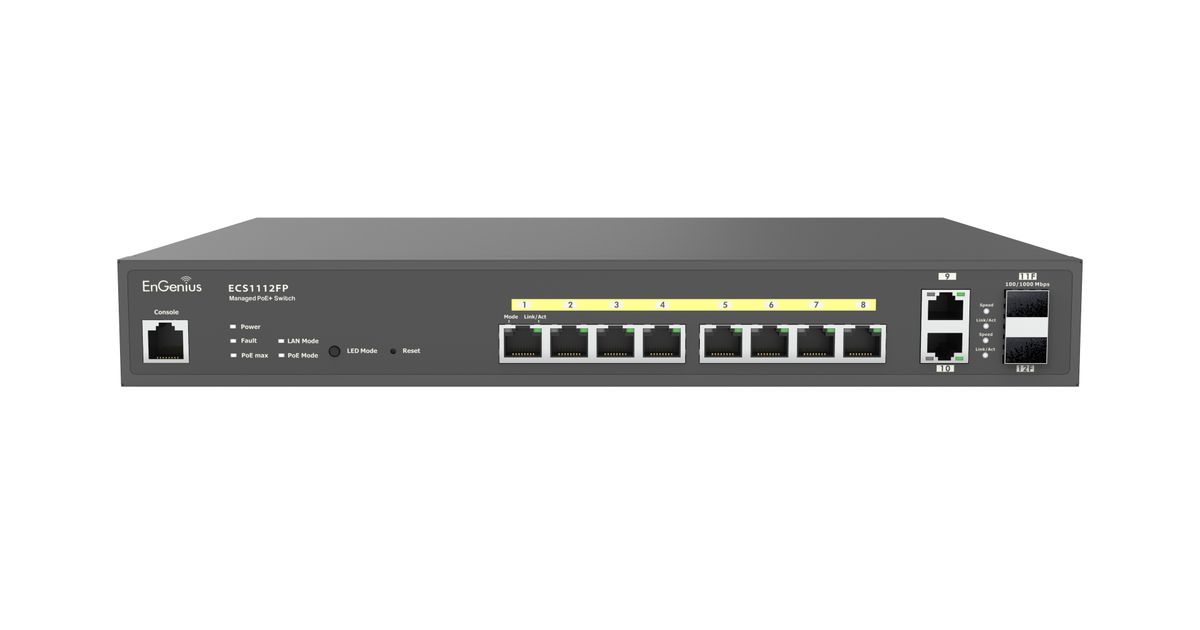

EnGenius ECW1112FP Cloud Managed L2+ Switch 10-port GbE PoE.at 130W 2x SFP
EnGenius ECW1112FP Cloud Managed L2+ Switch 10-port GbE PoE.at 130W 2x SFP, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EnGenius |
| Product code | 187881337 |
| EAN | 04713361935299 |
| Manufacturer part number | 1402A0150304 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Cloud-managed | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Internal memory | 256 MB |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T |
| Routing entries | 192 |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Security | |
|---|---|
| SSH/SSL support | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Number of multicast groups filtered | 256 |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Performance | |
|---|---|
| Flash memory | 32 MB |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 330 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
EnGenius Cloud ECS1112FP, an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
