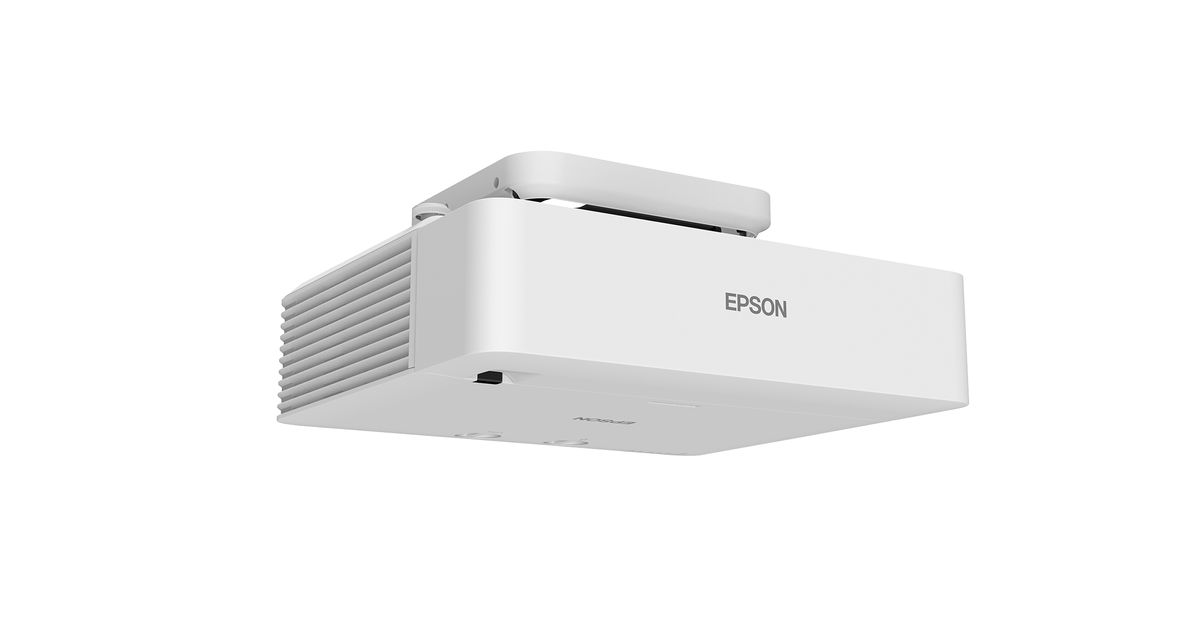

For illustrative purpose only

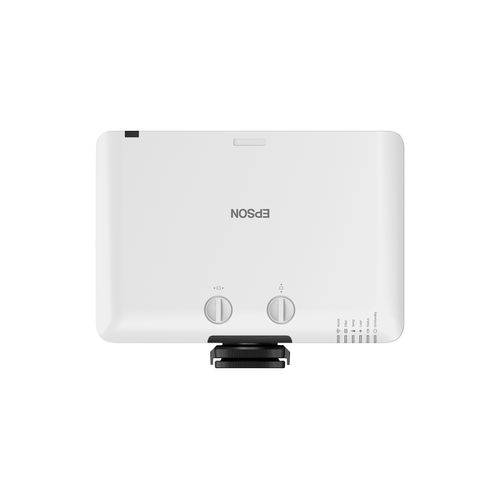

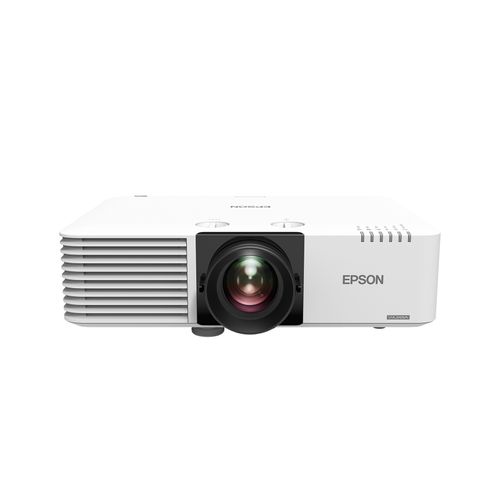

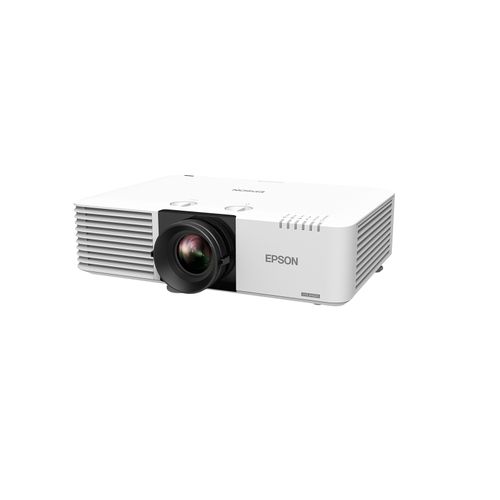

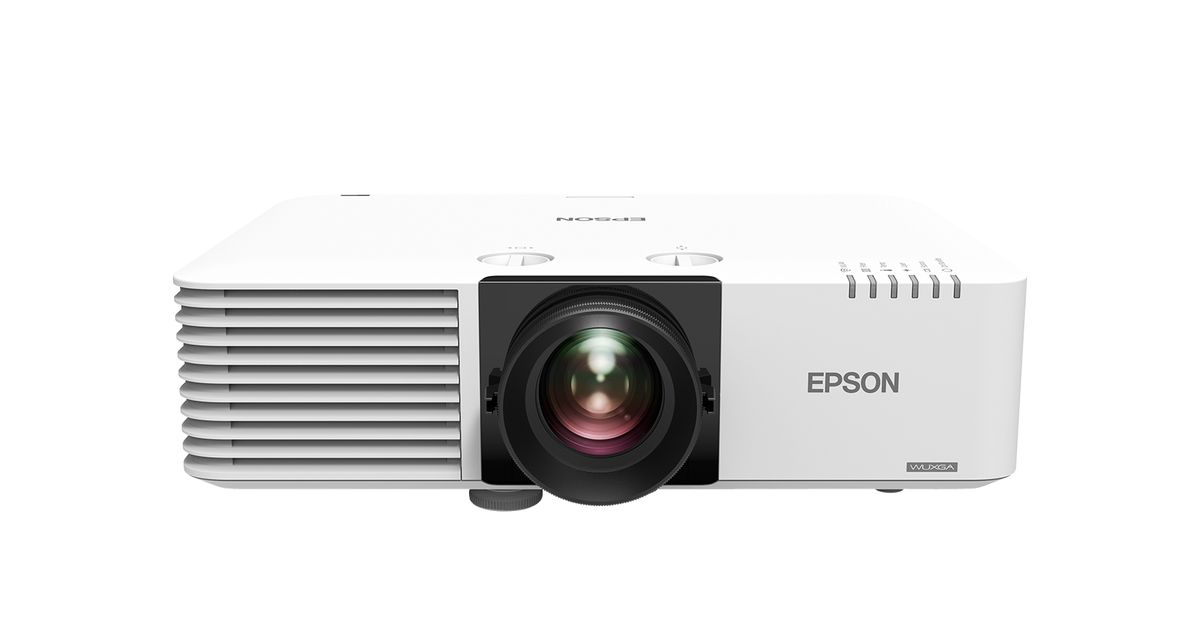

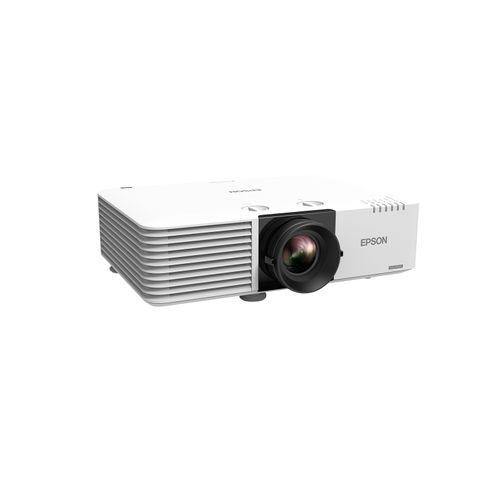

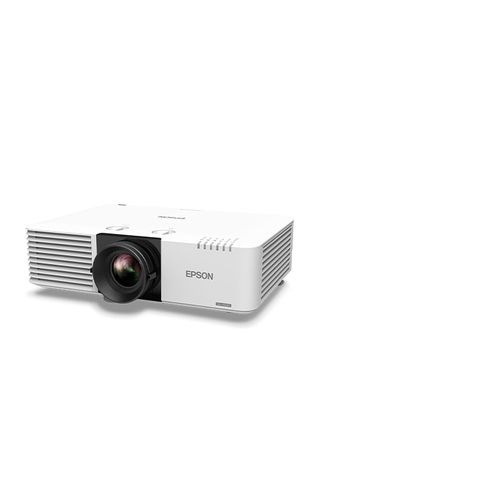

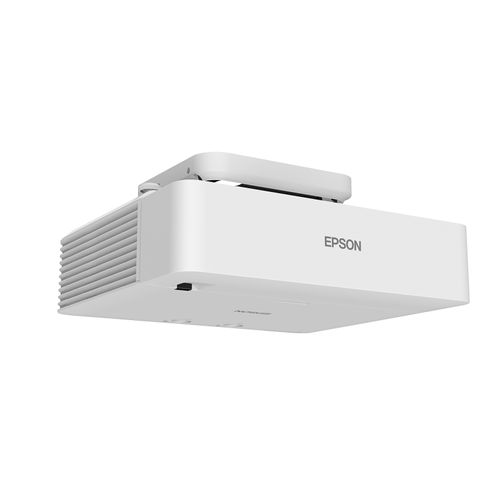

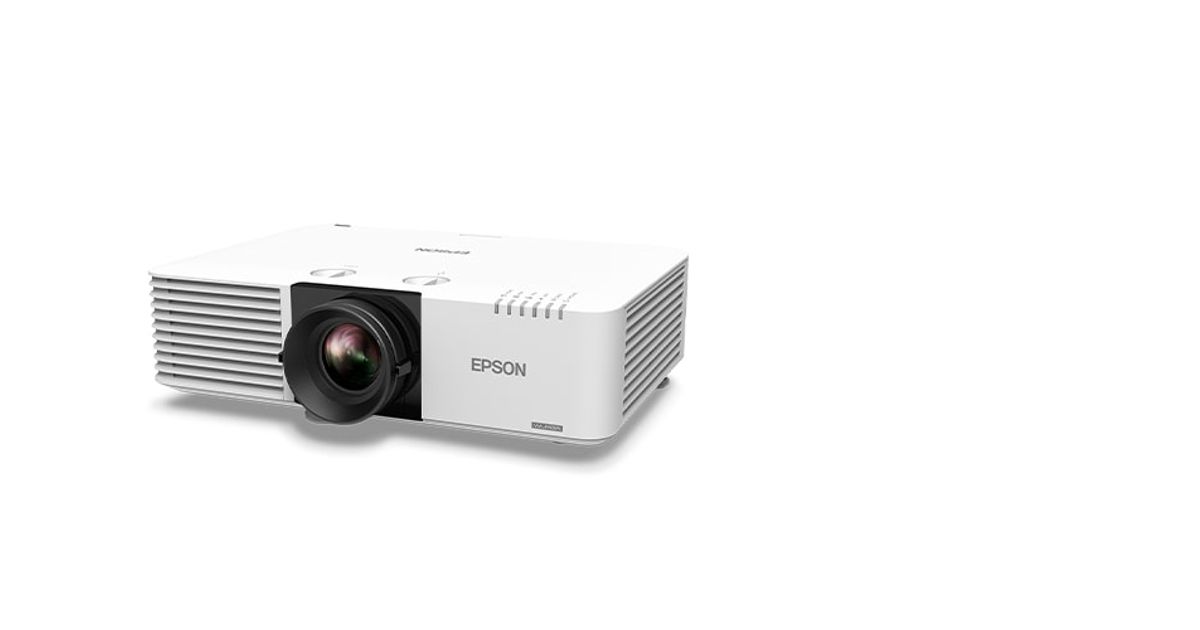

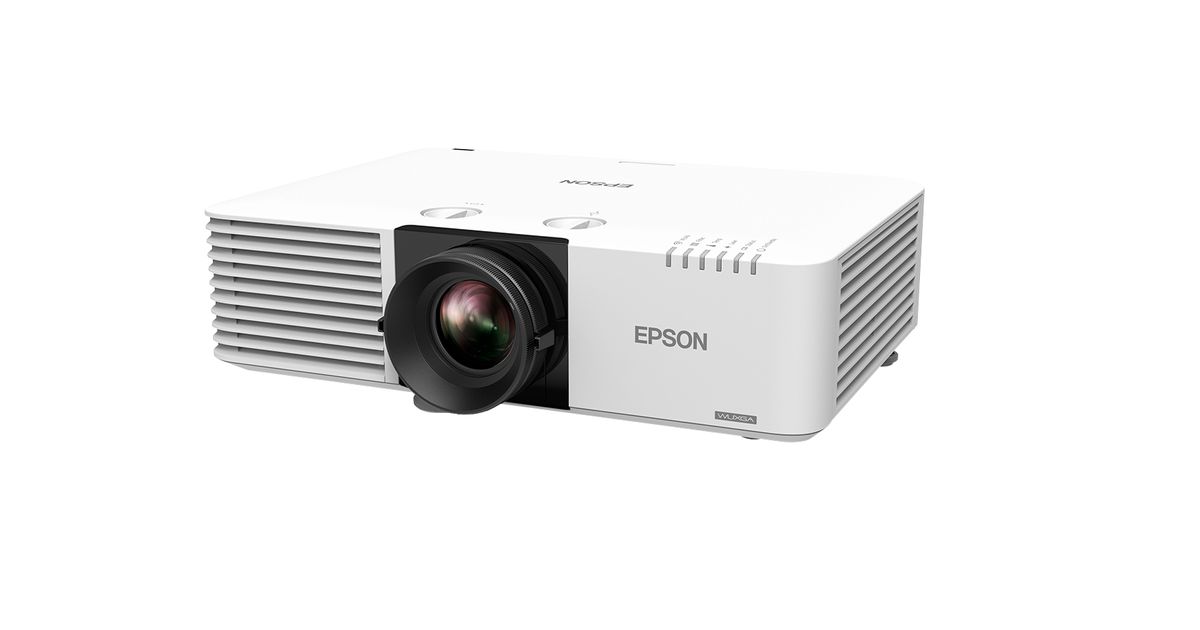

Epson EB-L530U data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White
Epson EB-L530U, 5200 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 16:10, 1270 - 12700 mm (50 - 500")
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Epson |
| Product code | 114933192 |
| EAN | 08715946695334 |
| Manufacturer part number | V11HA27040 |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Smart projector | N |
| Projection distance | 1.44 - 23.84 m |
| Projection distance (wide) | 1.4 - 14.8 m |
| Projection distance (tele) | 2.4 - 23.8 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3640 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
| Display | |
|---|---|
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Design | |
|---|---|
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 50% |
| Features | |
|---|---|
| Aperture range (F-F) | 1.5 - 1.7 |
| Throw ratio | 1.35 - 2.2:1 |
| Interactive | N |
| Noise level (economic mode) | 23 dB |
| HDCP | Y |

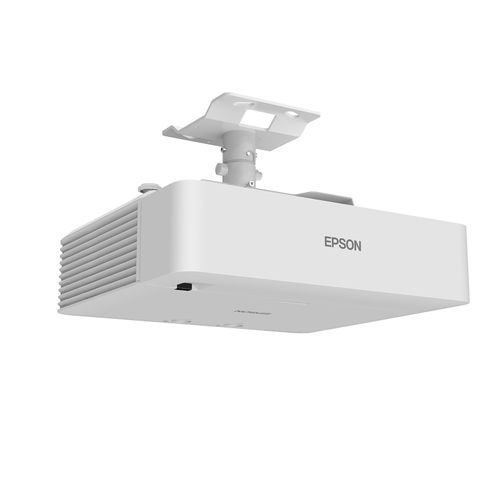

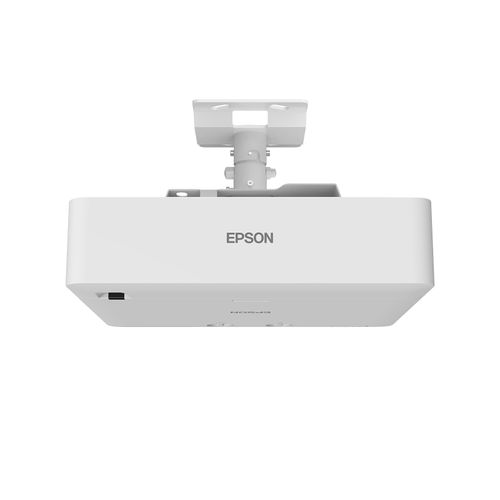

| Placement | Ceiling, Desktop |
| Harmonized System (HS) code | 85286200 |
| Camera | |
|---|---|
| Zoom capability | Y |
| Performance | |
|---|---|
| Full HD | Y |
| Cable lock slot | Y |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |

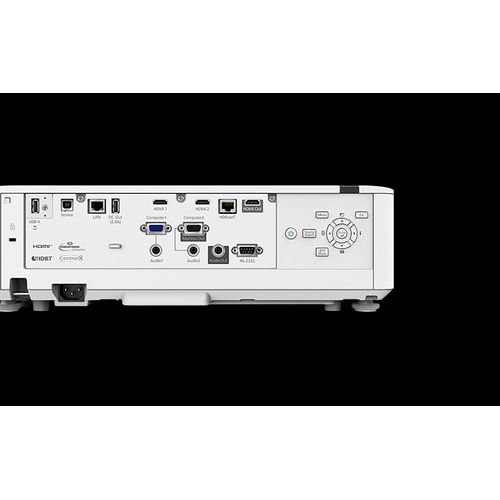

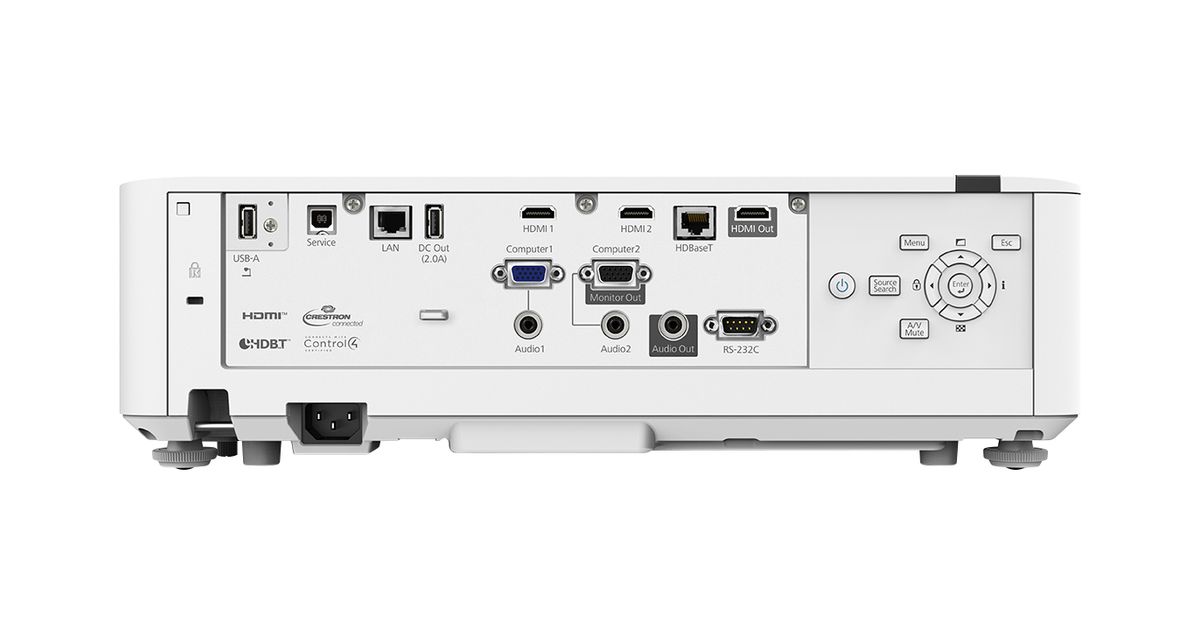

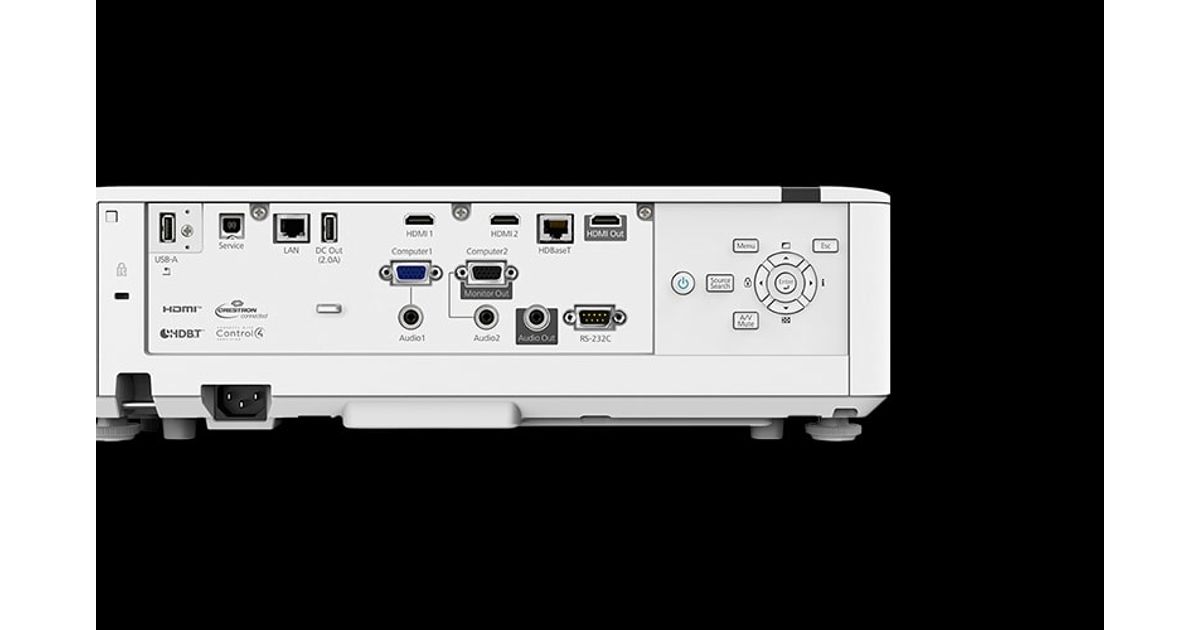

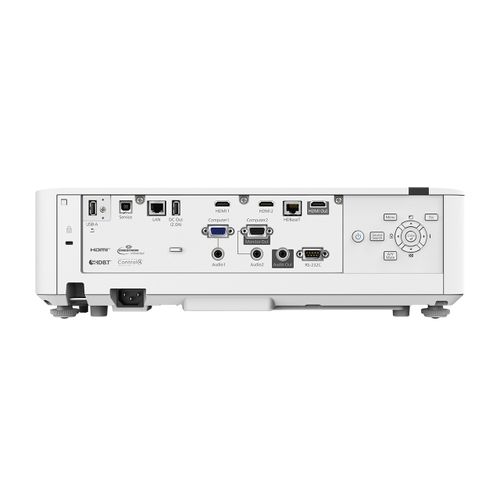

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | N |
| Serial interface type | RS-232C |
| HDMI connector type | Full-size |
| HDBaseT port | Y |
| USB 2.0 Type-B ports quantity | 1 |
| PC Audio in | Y |
| PC Audio out | Y |
| AC (power) in | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 2 |
| Miracast | Y |
| Noise level | 31 dB |
| Remote control included | Y |
| Network | |
|---|---|
| Smart TV | N |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Storage | |
|---|---|
| Card reader integrated | N |
| Logistics data | |
|---|---|
| Country of origin | Philippines |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Security | |
|---|---|
| Password protection | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 1 |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 293 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (economy mode) | 223 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Batteries included | Y |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 8.2 kg |
| Width | 440 mm |
| Depth | 339 mm |
| Height | 136 mm |
| Package weight | 12 kg |

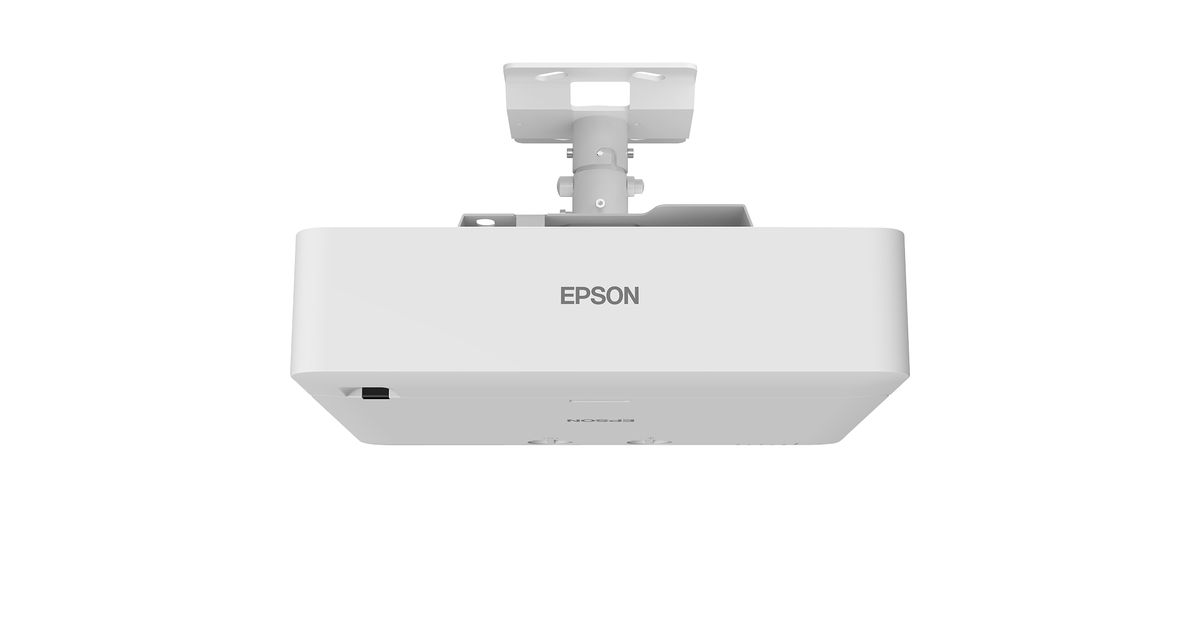

| Packaging content | MB22 ceiling mount |
| Packaging data | |
|---|---|
| Package width | 540 mm |
| Package depth | 565 mm |
| Package height | 210 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Warranty card | Y |
| WLAN adapter included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | TCO |
| Protocols | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Product Description
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers even more effective, practical and creative display applications across a number of different industries.
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L530U offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L530U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L530U offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L530U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
