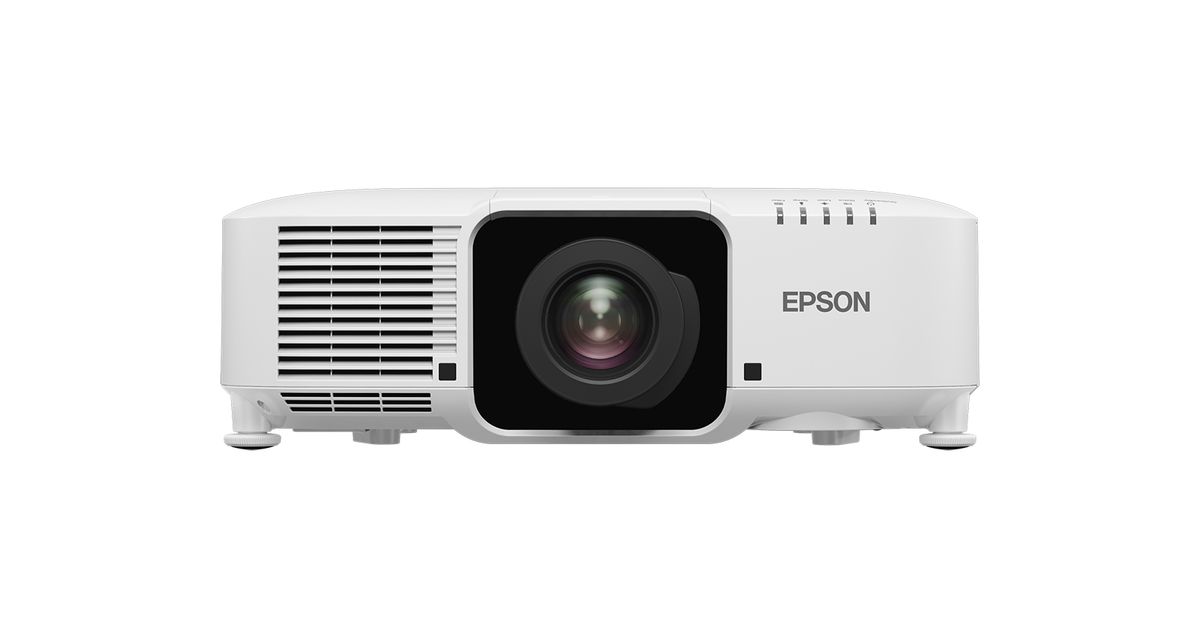

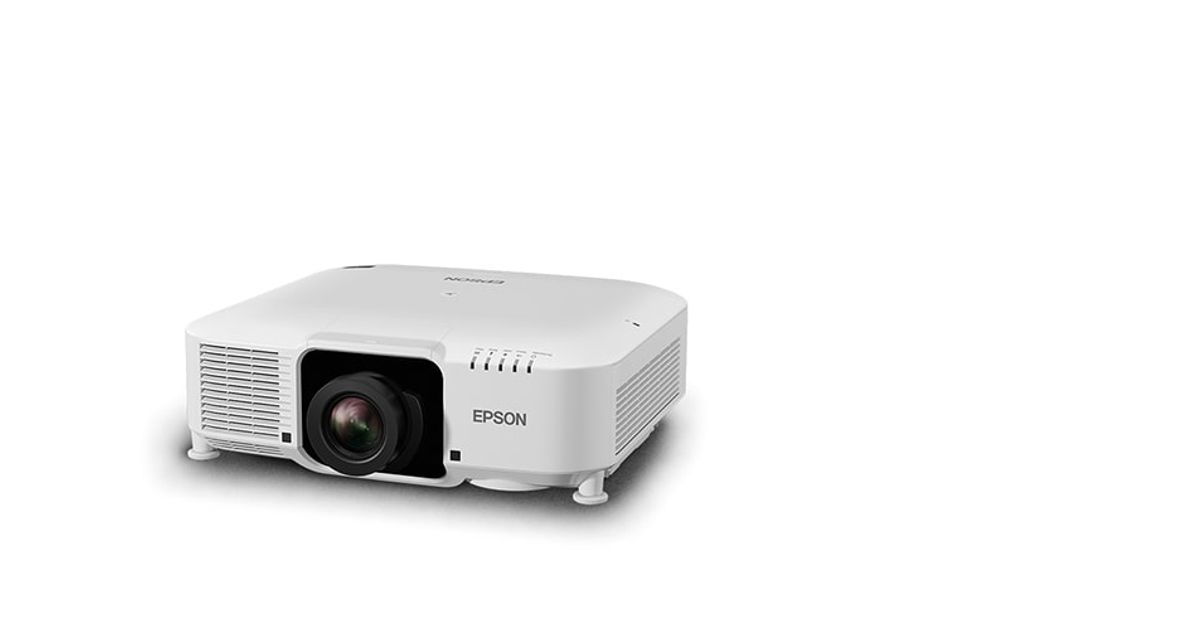

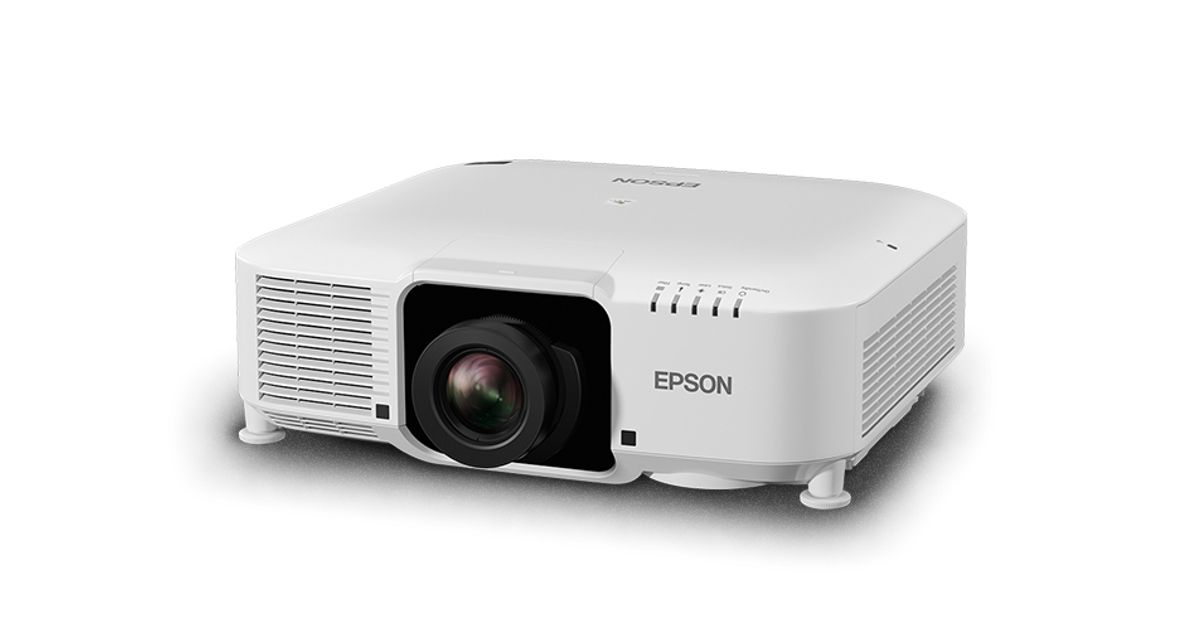

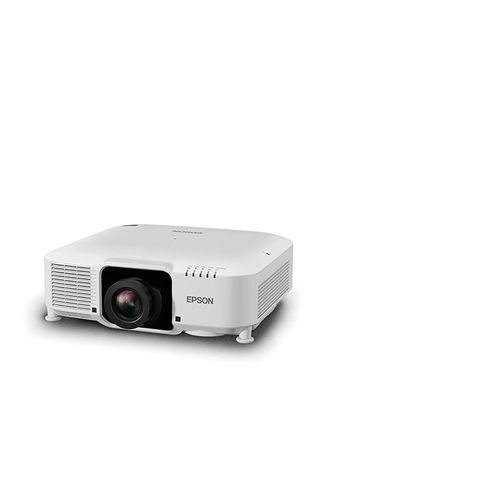

Epson EB-PU1006W data projector Large venue projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
Epson EB-PU1006W, 6000 ANSI lumens, 3LCD, WUXGA (1920x1200), 2000:1, 16:10, 1.07 billion colours
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Epson |
| Product code | 256155737 |
| EAN | 08715946697239 |
| Manufacturer part number | V11HA35940 |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4200 ANSI lumens |
| Projector brightness (portrait mode) | 6000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -45 - 45° |
| Matrix size | 1.93 cm (0.76") |
| Display | |
|---|---|
| Contrast ratio (typical) | 2000:1 |
| Native aspect ratio | 16:10 |
| Performance | |
|---|---|
| Heat dissipation | 1247.8 BTU/h |
| Full HD | Y |
| Cable lock slot | Y |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focal length range | varies by lens |
| Zoom type | Auto |
| Interchangeable lens | Y |
| Features | |
|---|---|
| Throw ratio | 0.35 - 10.11:1 |
| Noise level (economic mode) | 28 dB |
| HDCP | Y |
| Placement | Ceiling, Desktop, Flying frame |
| Video | |
|---|---|
| Analog signal format system | Not supported |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| Other features | |
|---|---|
| 3D | N |
| USB 2.0 ports quantity | 2 |
| Noise level | 30 dB |
| Remote control included | Y |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Y |
| Serial interface type | RS-232C |
| HDBaseT port | Y |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Inputs | |
|---|---|
| Audio (L/R) in | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Storage | |
|---|---|
| Card reader integrated | N |
| Logistics data | |
|---|---|
| Country of origin | Philippines |
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Security | |
|---|---|
| Password protection | Y |
| Design | |
|---|---|
| Product type | Large venue projector |
| Market positioning | Presentation |
| Product colour | White |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 367 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 310 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Batteries included | Y |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Bundled software | Content DIY App, iProjection, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 15.4 kg |
| Width | 545 mm |
| Depth | 436 mm |
| Height | 189 mm |
| Package weight | 20.6 kg |
| Packaging data | |
|---|---|
| Package width | 561 mm |
| Package depth | 760 mm |
| Package height | 265 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Warranty card | Y |
| WLAN adapter included | Y |
| Protocols | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Product Description
The EB-PU1006W is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.

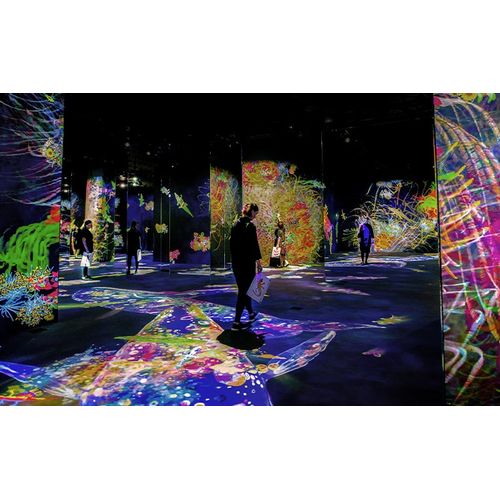

This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

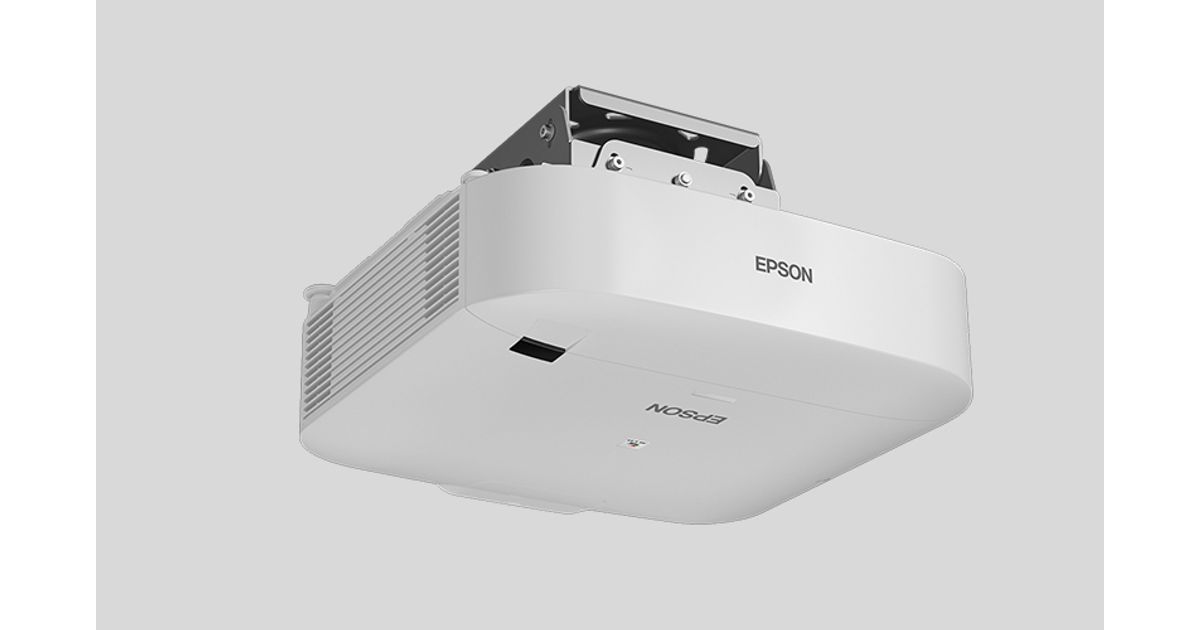

Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.

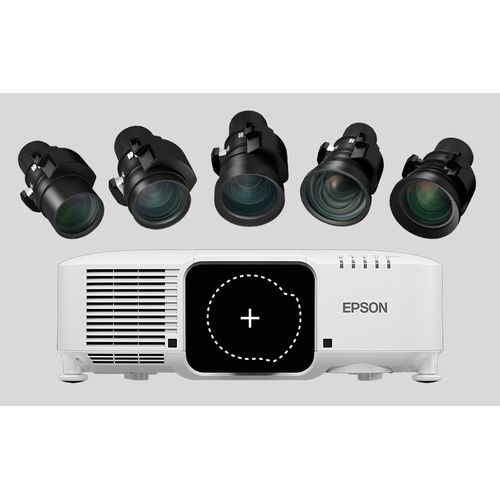

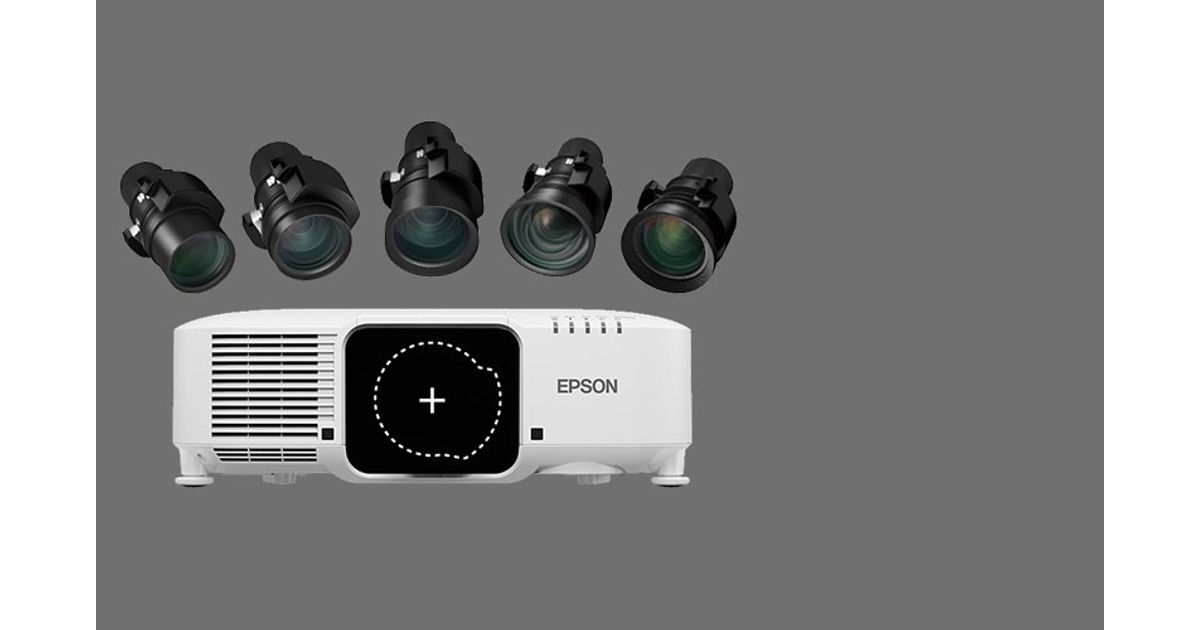

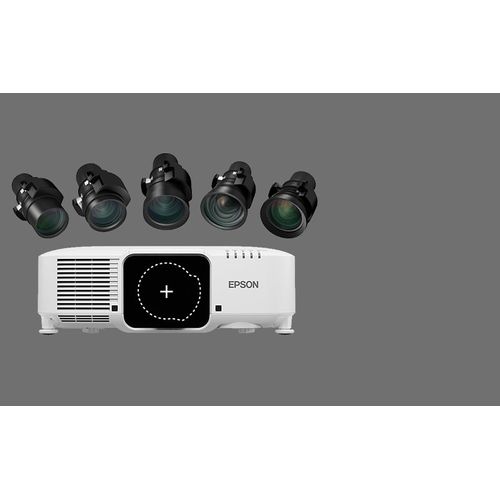

Interchangeable lens support
The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility

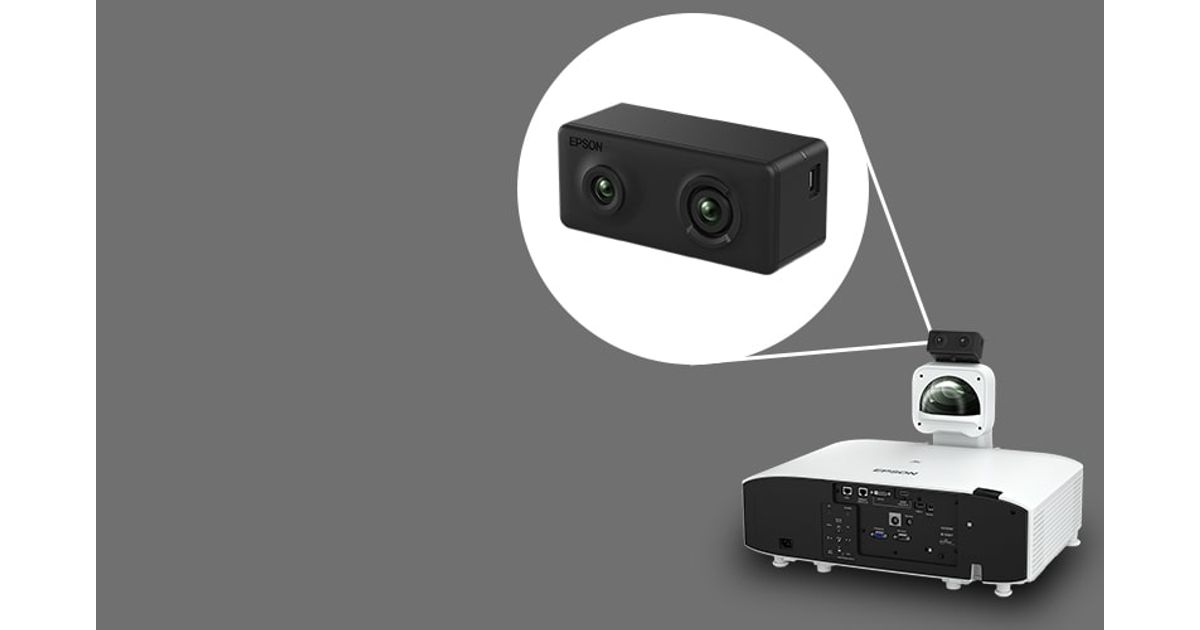

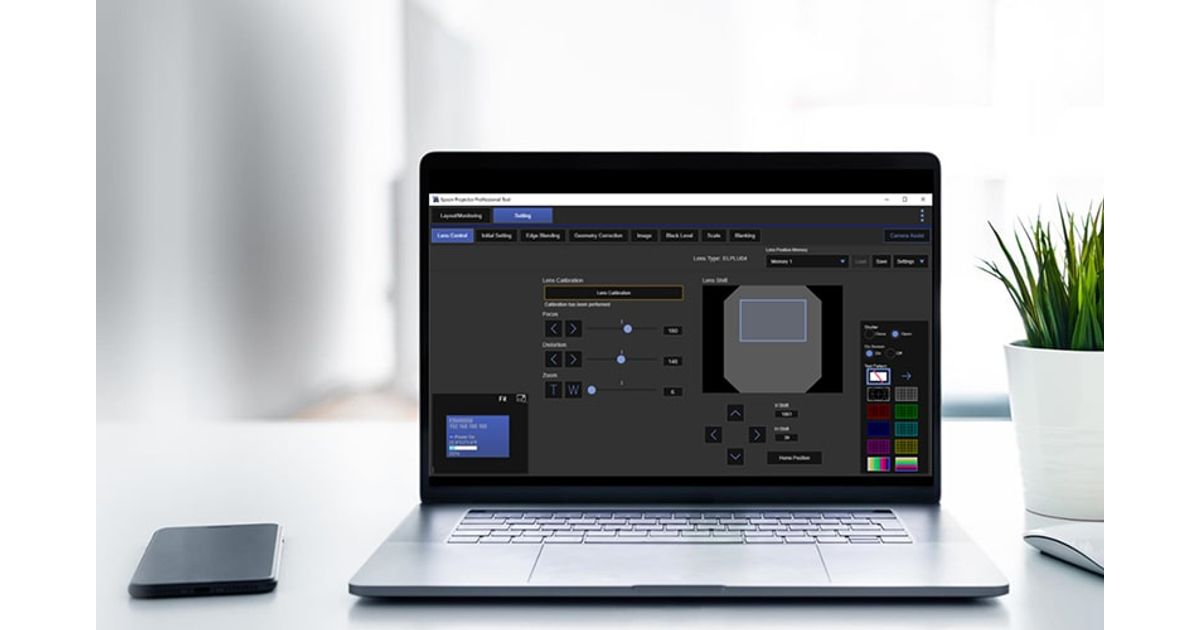

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.
Interchangeable lens support
The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
