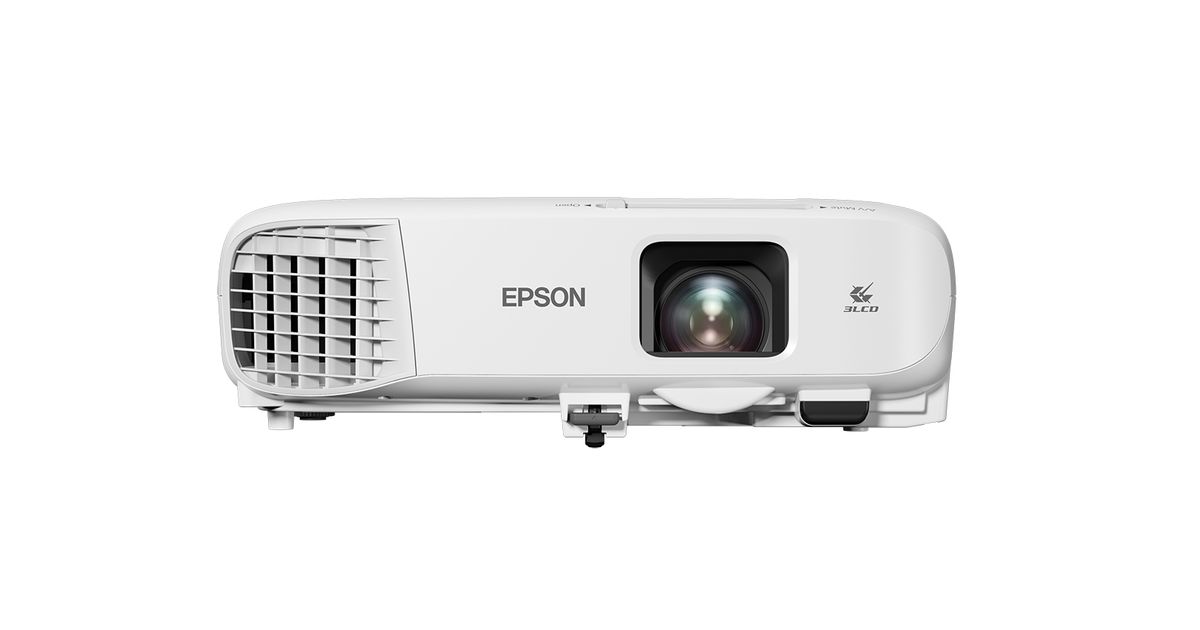

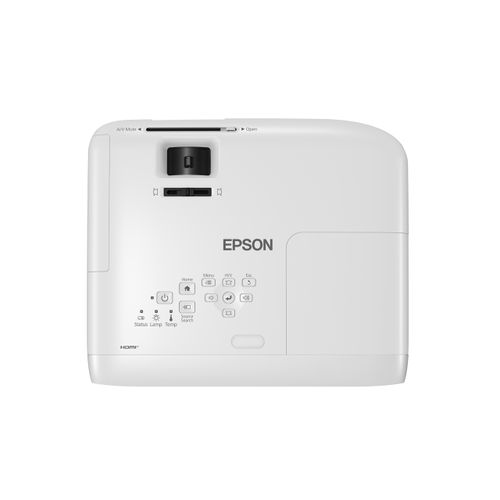

Epson EB-X49 data projector Standard throw projector 3600 ANSI lumens 3LCD XGA (1024x768) White
Epson EB-X49, 3600 ANSI lumens, 3LCD, XGA (1024x768), 16000:1, 4:3, 762 - 7620 mm (30 - 300")
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Epson |
| Product code | 113451103 |
| EAN | 08715946680750 |
| Manufacturer part number | V11H982040 |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2400 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.4 cm (0.55") |
| Display | |
|---|---|
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 4:3 |
| Vertical scan range | 100 - 120 Hz |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Video | |
|---|---|
| Supported aspect ratios | 4:3 |
| Video processing | 10 bit |
| Video colour modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Light source | |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp power | 210 W |
| Lighting | |
|---|---|
| Lamp type | UHE |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Features | |
|---|---|
| Aperture range (F-F) | 1.49 - 1.72 |
| Throw ratio | 1 - 1.2:1 |
| Noise level (economic mode) | 28 dB |
| Preset modes | Blackboard, Dynamic, Presentation, Theatre, sRGB |
| Placement | Ceiling, Desktop |
| Harmonized System (HS) code | 85286200 |
| Camera | |
|---|---|
| Zoom capability | Y |
| Performance | |
|---|---|
| Full HD | N |
| Cable lock slot | Y |
| Other features | |
|---|---|
| 3D | N |
| Noise level | 37 dB |
| Remote control included | Y |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| DVI port | N |
| Serial interface type | RS-232C |
| HDMI connector type | Full-size |
| USB 2.0 Type-B ports quantity | 1 |
| PC Audio in | Y |
| PC Audio out | Y |
| PC in (D-Sub) | Y |
| AC (power) in | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
|---|---|
| Smart TV | N |
| Ethernet LAN | Y |
| Storage | |
|---|---|
| Card reader integrated | N |
| Logistics data | |
|---|---|
| Country of origin | Philippines |
| Products per pallet | 78 pc(s) |
| Products per pallet (UK) | 78 pc(s) |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 1 |
| Multimedia | |
|---|---|
| RMS rated power | 5 W |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 327 W |
| Power consumption (economy mode) | 225 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Batteries included | Y |
| Software | |
|---|---|
| Software support | via: AMX, Crestron (Network), Control4, Extron |
| Bundled software | EasyMP Multi PC Projection, Epson Projektor Management |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 2.7 kg |
| Width | 302 mm |
| Depth | 249 mm |
| Height | 87 mm |
| Package weight | 4.12 kg |
| Packaging data | |
|---|---|
| Package width | 355 mm |
| Package depth | 380 mm |
| Package height | 160 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC, HDMI |
| WLAN adapter included | Y |
| Protocols | |
|---|---|
| Supported network protocols | PJLink |
| Other information | |
|---|---|
| USB display function | 3 in 1: Image / Mouse / Sound |
Product Description
Compact display, optional wireless
Combines the versatility to be positioned just about anywhere with excellent brightness and sharpness, plus low-maintenance performance.
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
Combines the versatility to be positioned just about anywhere with excellent brightness and sharpness, plus low-maintenance performance.
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
