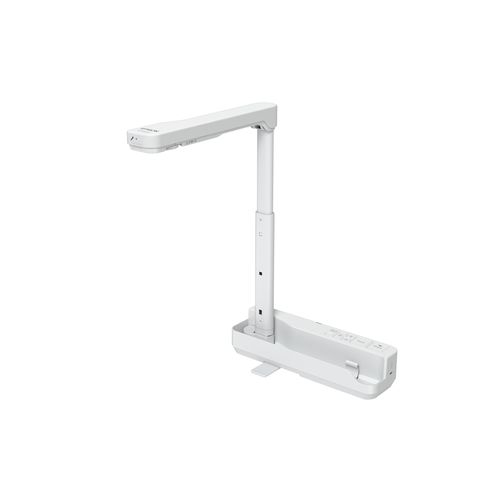

Epson ELPDC07
Epson ELPDC07, 25.4 / 2.7 mm (1 / 2.7"), CMOS, 1920 x 1080 (HD 1080), 2 MP, 30 fps, LED
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Epson |
| Product code | 07181353 |
| EAN | 08715946616292 |
| Manufacturer part number | VCEPSWIELPDC07A |
| Category | Document cameras |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Features | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| USB connector type | USB Type-B |
| Power supply type | USB |
| Camera | |
|---|---|
| Image freeze | Y |
| Effective sensor resolution | 2 MP |
| Auto focus | Y |
| Digital zoom | 8x |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Image quality adjustment | Brightness |
| Performance | |
|---|---|
| Light source | LED |
| Display modes | Microscope |
| Cable lock slot | Y |
| Lens system | |
|---|---|
| Shooting area (WxD) | 297 x 420 mm |
| Ports & interfaces | |
|---|---|
| Interface | USB 2.0 |
| Design | |
|---|---|
| Product colour | White |
| Cable lock slot type | Kensington |
| Illumination | Y |
| Software | |
|---|---|
| Bundled software | Easy Interactive Tools, TWAIN-Treiber für Epson Dokumentenkamera (für Windows) |
| Logistics data | |
|---|---|
| Country of origin | Philippines |
| Power | |
|---|---|
| Power consumption (typical) | 2.5 W |
| Power consumption (standby) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Width | 260 mm |
| Depth | 388 mm |
| Height | 76 mm |
| Weight | 1 kg |
| Dimensions folded (WxDxH) | 260 x 60 x 76 mm |
| Package weight | 1.73 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 320 mm |
| Package height | 120 mm |
| Carrying case | Y |
| Packaging content | |
|---|---|
| Cables included | USB |
| Warranty card | Y |
Product Description
See in great detail

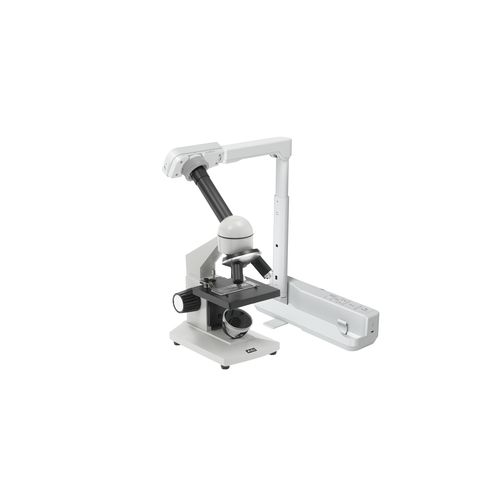

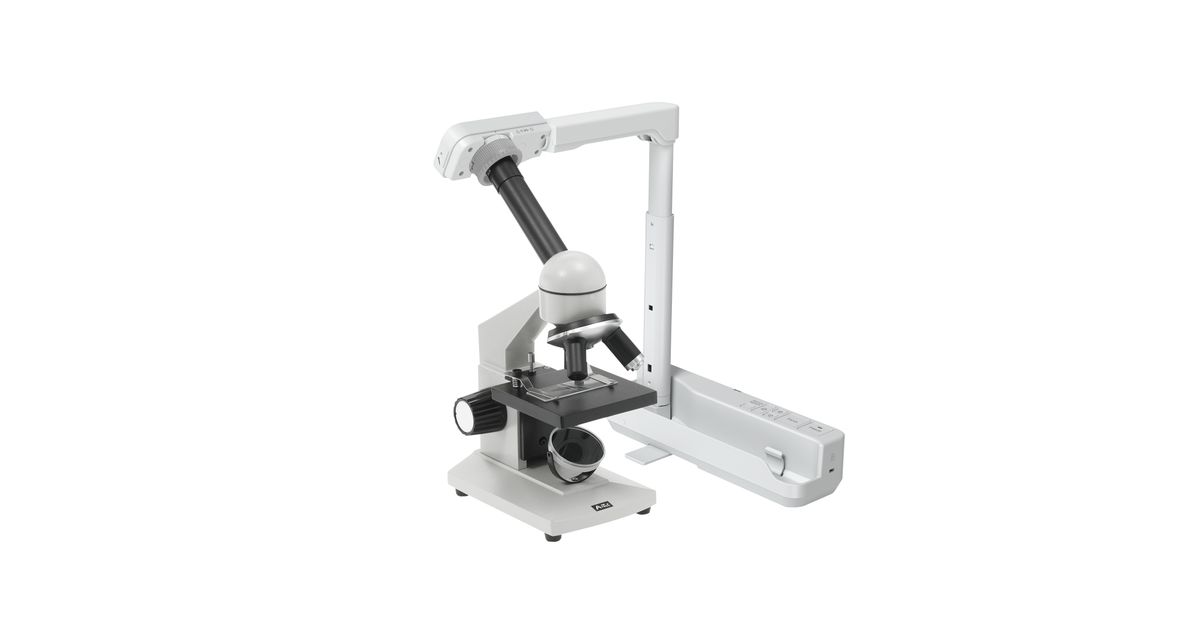

Share high-quality visuals including detailed diagrams and textbook pages with a Full HD 1080p output and 8x digital zoom. You can even adjust the height and rotate the camera 90º to accommodate 3D objects. For science lessons, the supplied microscope attachment can also be used to unveil fascinating microscopic worlds in real-time.
Effortless to use
Minimise preparation time with this high-tech, compact and affordable portable solution, that makes it quick and easy to enlarge source material. In just seconds, you can connect directly to the latest Epson projectors using the two in one USB cable connection which provides power and transmits the video signal.
Highly portable, modern design

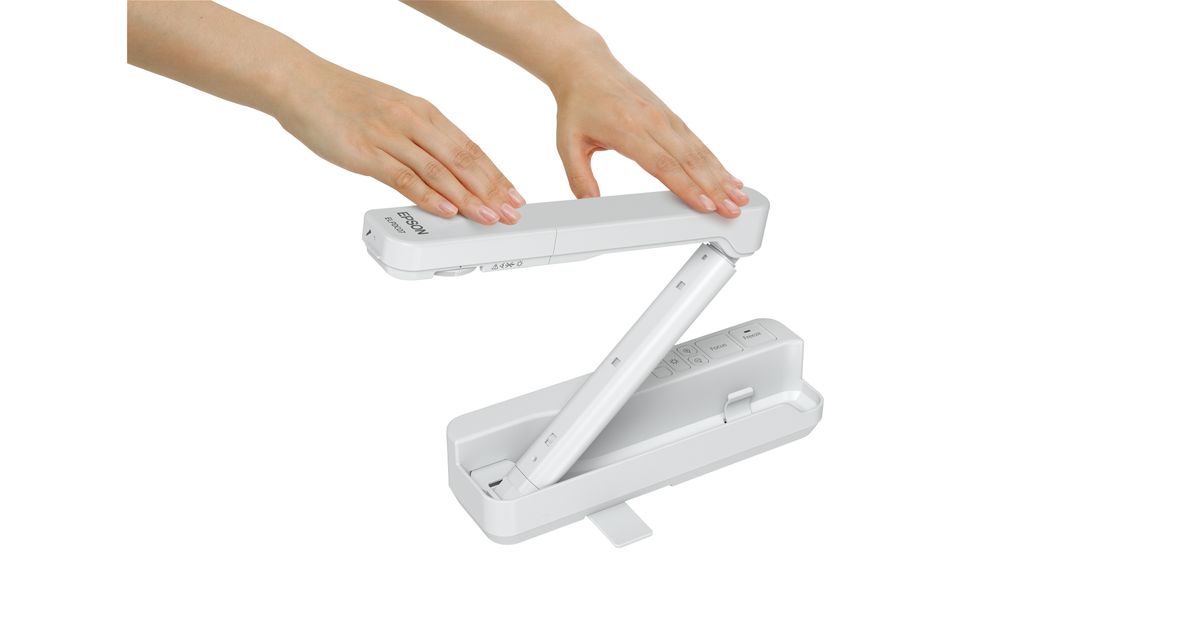

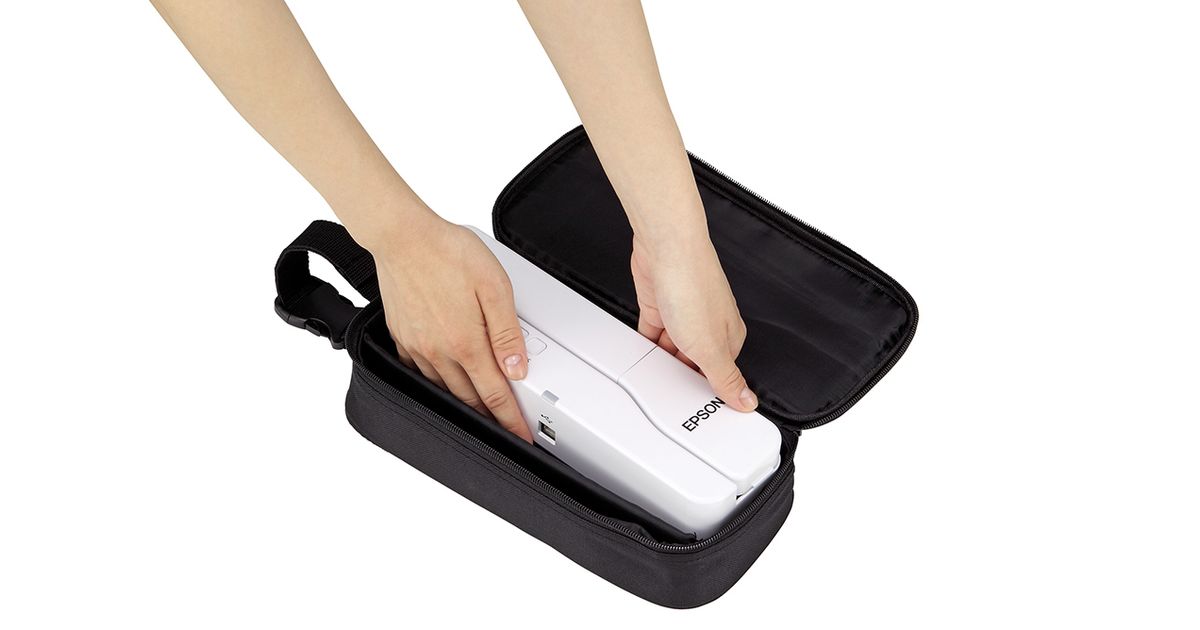

The Epson ELPDC07 visualiser is neat and compact, it features LED illumination, a built-in microphone and doesn’t need a separate power supply. It’s also light and easy to carry in the included carry case, with the arm folding neatly down into the base. Needing just 2.5W, you can be sure that its power consumption meets modern energy conservation requirements .
