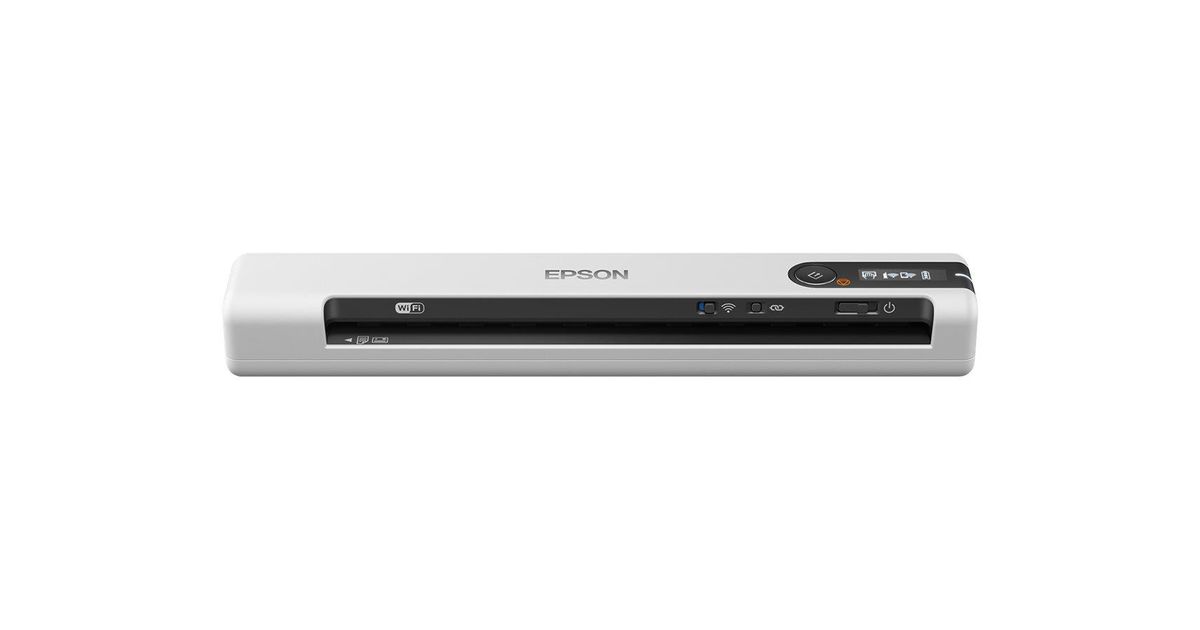

Epson WorkForce DS-80W
Epson WorkForce DS-80W, 216 x 1828 mm, 600 x 600 DPI, 48 bit, 24 bit, 16 bit, 8 bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Epson |
| Product code | 07181393 |
| EAN | 08715946662848 |
| Manufacturer part number | B11B253402 |
| Category | Printers, scanners & accessories |
| Scanning | |
|---|---|
| Maximum scan size | 216 x 1828 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | N |
| Colour scanning | Y |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| Scanner type | Handheld & Sheet-fed scanner |
| Performance | |
|---|---|
| Output colour depth | 24 bit |
| Daily duty cycle (max) | 300 pages |
| Light source | ReadyScan LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Scan drivers | TWAIN,WIA,SANE,ICA |
| Design | |
|---|---|
| Built-in display | Y |
| Product colour | White |
| Colour display | N |
| Image sensor | |
|---|---|
| Sensor type | CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 1 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Auto Document Feeder (ADF) media weight | 35 - 270 g/m² |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Features | |
|---|---|
| USB version | 2.0 |
| Power supply type | USB |
| Other features | |
|---|---|
| Standard interfaces | USB 2.0, Wireless LAN |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP |
| Output resolutions | 600 dpi |
| Network | |
|---|---|
| Wi-Fi | Y |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per pallet | 360 pc(s) |
| Master (outer) case length | 36 cm |
| Master (outer) case height | 32 cm |
| Master (outer) case width | 35 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 171 cm |
| Products per master (outer) case | 10 pc(s) |
| Products per pallet layer | 60 pc(s) |
| Products per pallet layer (UK) | 60 pc(s) |
| Products per pallet (UK) | 360 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 171 cm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 141 mm |
| Package depth | 330 mm |
| Package height | 67 mm |
| Weight & dimensions | |
|---|---|
| Package weight | 597 g |
| Width | 272 mm |
| Depth | 47 mm |
| Height | 34 mm |
| Weight | 300 g |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Bundled software | Document Capture Pro 2.0, Epson Scan 2 |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2008,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2016 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|
| Cables included | USB |
| Media formats | |
|---|---|
| Image formats supported | BMP, JPEG, TIFF, PNG |
Product Description
Scan anywhere
The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.
Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.
Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
