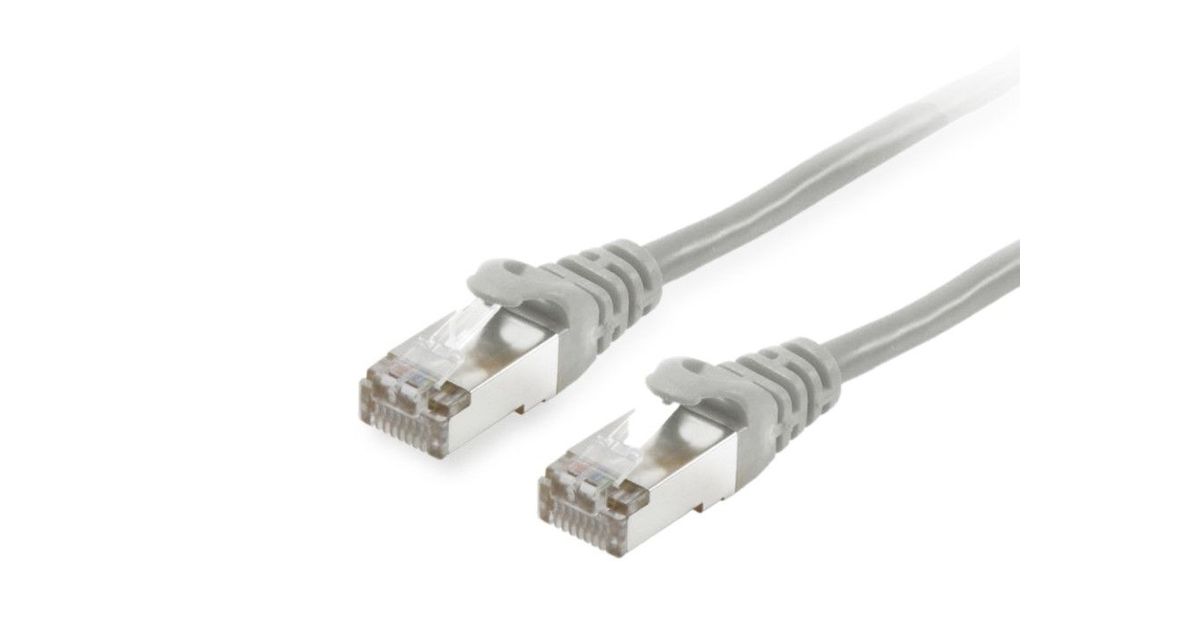

Equip Cat.6 S/FTP Patch Cable, 20m, Gray
Equip Cat.6 S/FTP Patch Cable, 20m, Gray, 20 m, Cat6, S/FTP (S-STP), RJ-45, RJ-45
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Equip |
| Product code | 229213212 |
| EAN | 04015867166178 |
| Manufacturer part number | 605509 |
| Category | Network cables |
| Features | |
|---|---|
| Cable length | 20 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| AWG wire size | 28/7 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 250 MHz |
| Molded cable boot | Y |
| Plug and Play | Y |
| Certification | ISO/IEC 11801, EN50288, TIA/EIA 568-C.2 |
| Harmonized System (HS) code | 84733080 |
| Design | |
|---|---|
| Product colour | Grey |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | PoE+ |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case width | 290 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case gross weight | 15.9 kg |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 22 pc(s) |
| Weight & dimensions | |
|---|---|
| Width | 8.34 mm |
| Depth | 11.7 mm |
| Height | 20000 mm |
| Outer diameter | 5.8 mm |
| Weight | 745 g |
| Package weight | 350 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 50 mm |
| Package height | 290 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, REACH, RoHS, UKCA |
| Doesn't contain | Halogen |
Product Description
The equip® Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.
