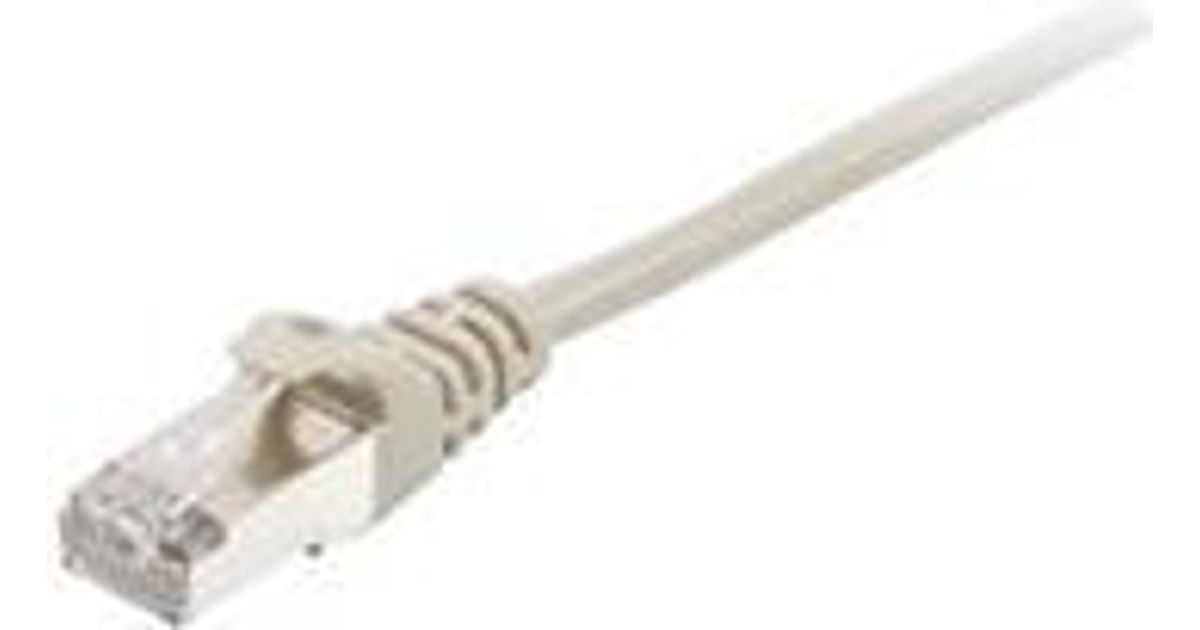

For illustrative purpose only
Equip Cat.6A S/FTP Patch Cable, 5.0m, White
Equip Cat.6A S/FTP Patch Cable, 5.0m, White, 5 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Equip |
| Product code | 161890451 |
| EAN | 04015867204177 |
| Manufacturer part number | 606006 |
| Category | Network cables |
| Features | |
|---|---|
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Insulation thickness | 0.2 mm |
| Insulation outer diameter | 1.05 mm |
| Design | |
|---|---|
| Product colour | White |
| Network | |
|---|---|
| Cabling technology | 10GBase-T |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.5 |
| Weight & dimensions | |
|---|---|
| Width | 8.34 mm |
| Depth | 11.7 mm |
| Height | 5000 mm |
| Outer diameter | 6.1 mm |
| Weight | 163 g |
| Package weight | 95 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package height | 230 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
Product Description
The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.
