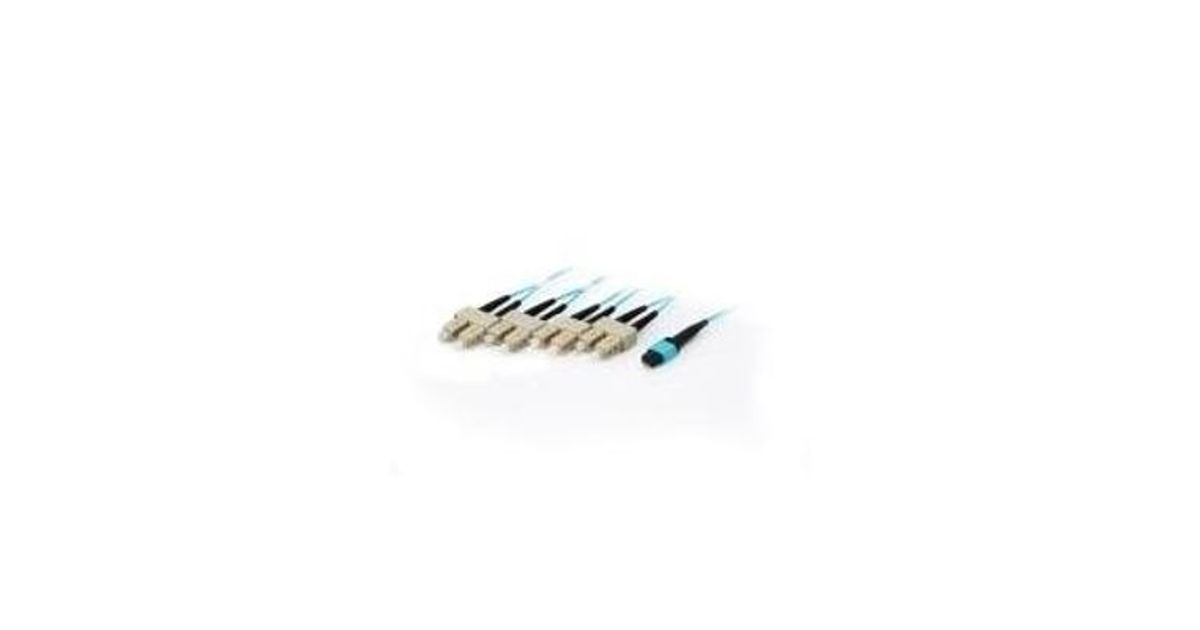

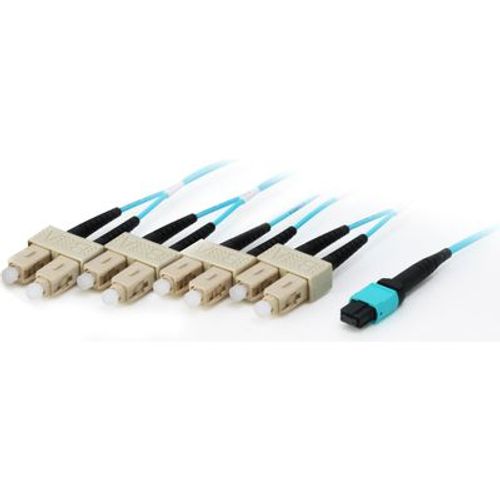

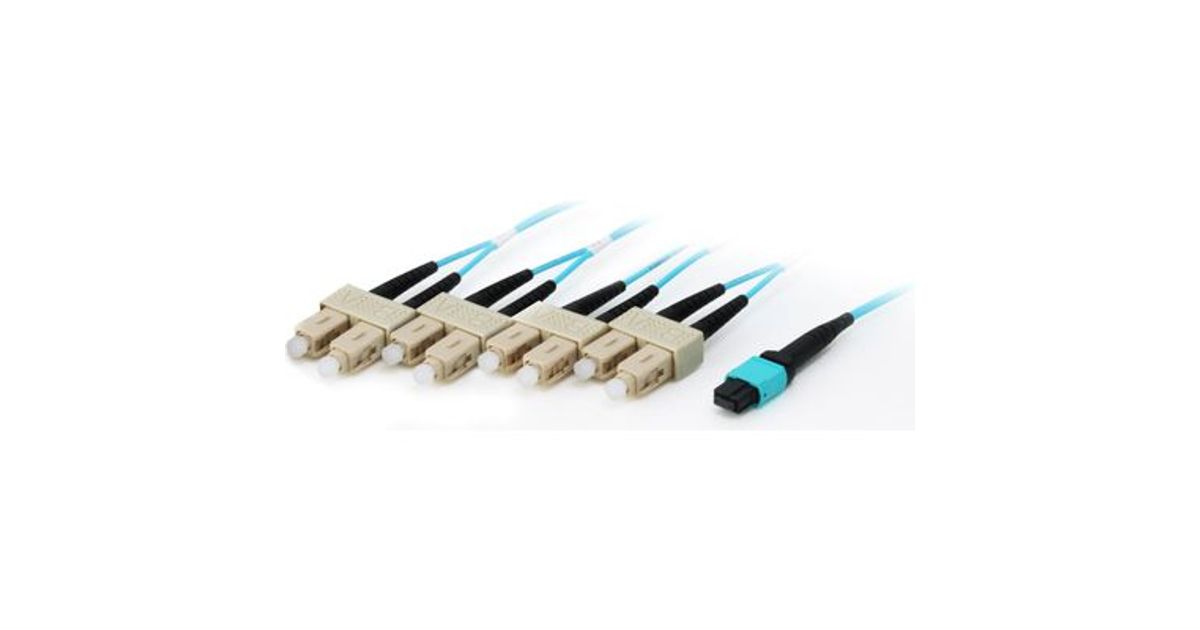

Equip MTP/SC Trunk Fiber Patch Cord, OM4, 15m
Equip MTP/SC Trunk Fiber Patch Cord, OM4, 15m, 15 m, OM4, MTP, 4x SC
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Equip |
| Product code | 16486994 |
| EAN | 04015867192726 |
| Manufacturer part number | 25557707 |
| Category | TV and monitor accessories |
| Features | |
|---|---|
| Cable length | 15 m |
| Fibre optic type | OM4 |
| Connector 1 | MTP |
| Connector 2 | 4x SC |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Jacket material | Low smoke fire retardant zero halogen (LSFRZH) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.5 dB |
| Design | |
|---|---|
| Product colour | Cyan |
| Sustainability | |
|---|---|
| Sustainability certificates | REACH, RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
|---|---|
| Weight | 183 g |
| Packaging data | |
|---|---|
| Package width | 375 mm |
| Package height | 250 mm |
Product Description
The equip® MTP/SC Trunk Fiber Patch Cord OM4 is a pre-terminated optical fiber cabling system, specifically designed to satisfy the increasing demand for high bandwidth and high density in data center network and enterprise building application.
