Ermenrich Ping SM70 Bolzendetektor
Product Information
Product Description

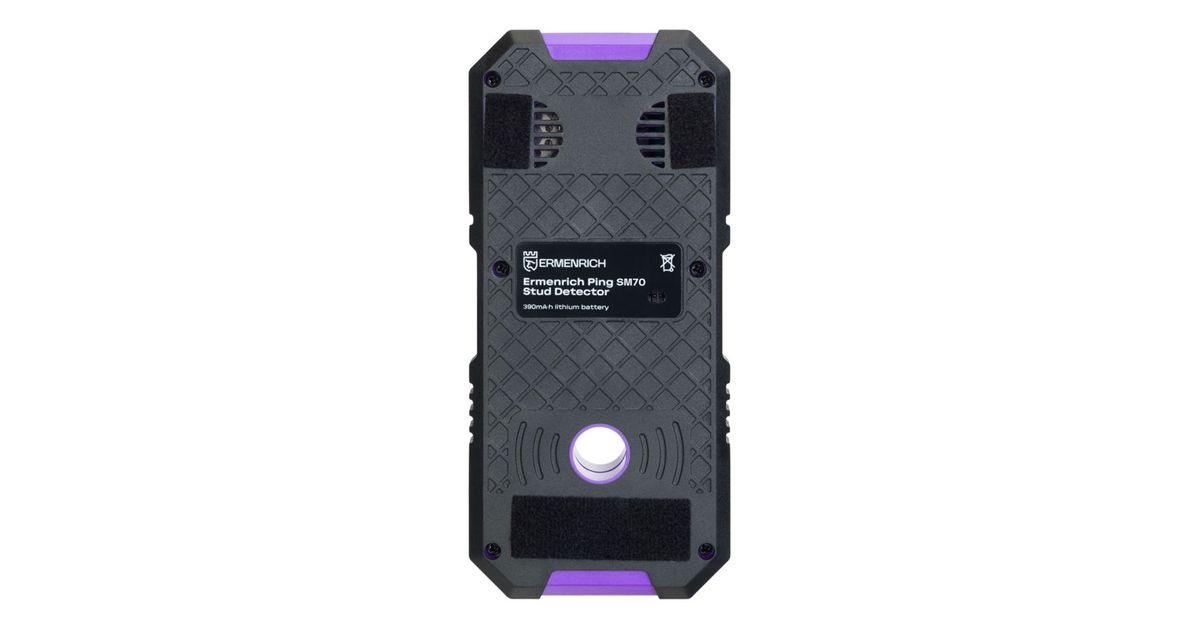

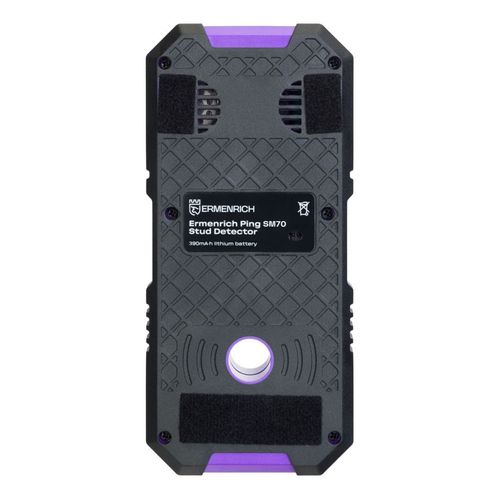

Ermenrich Ping SM70 Bolt Detector
The Ermenrich Ping SM70 stud detector is a device for detecting metal objects (pipes, rebar, self-tapping screws), current-carrying cables and wooden structures hidden in walls, floors and ceilings. It ensures safety during construction, repair, expansion and installation work. This prevents, for example, the drilling accidentally hitting current-carrying lines or damaging the drill on a metal part. The Ermenrich Ping SM70 bolt detector is a useful tool not only for professional purposes but also for home use.

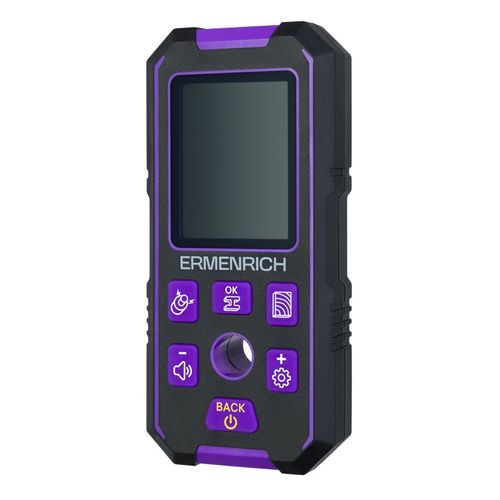

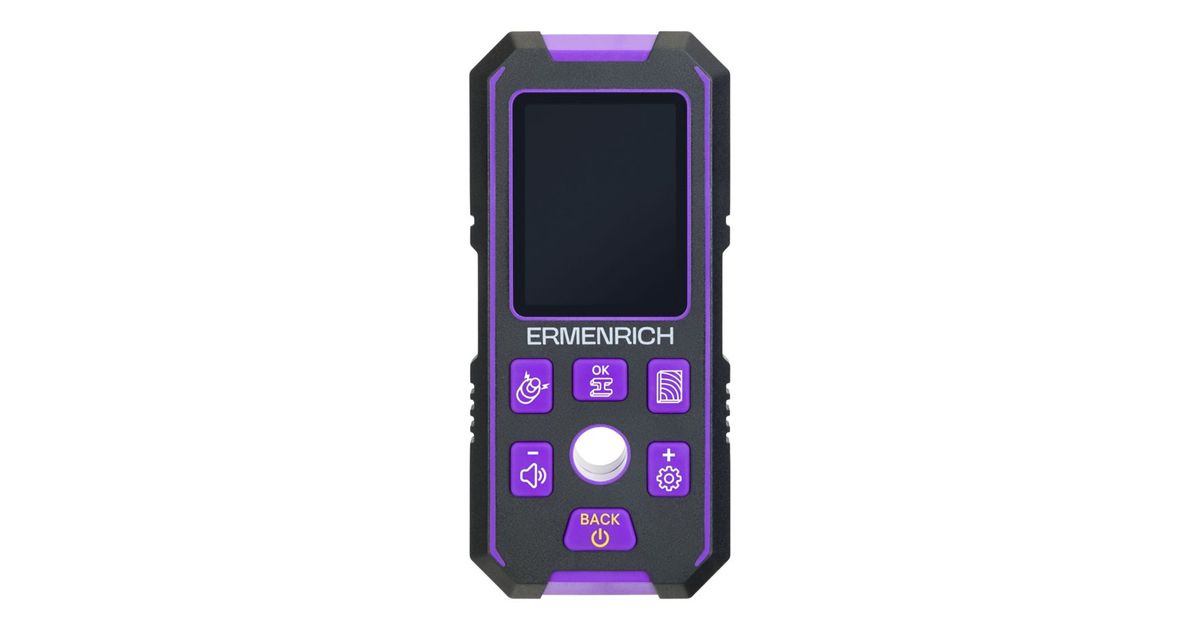

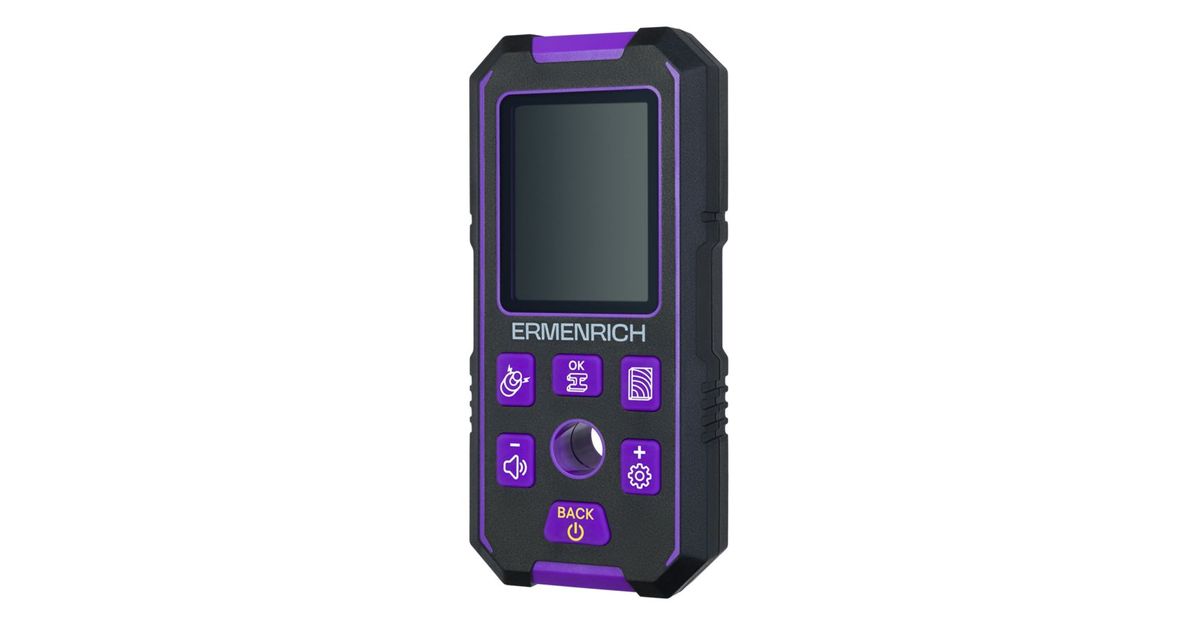

It is a compact device with push button control and integrated LCD display. The display shows the symbols for the operating mode and a signal bar indicating how close a bolt or wire is to the detector. The device will beep when it detects a bolt or wire, and you can disable the audible warning signals if necessary. The sensitivity and calibration functions are used to fine-tune the instrument.
The bolt detector is operated with a rechargeable battery.
Features:
- Detection of ferrous and non-ferrous metals, metal and wood bolts, current-carrying cables
- 2.4-inch color display, control by pressing a button
- Sensitivity setting, calibration, audible warning signals, signal bar on the display
- High-strength ABS plastic housing, power supply via rechargeable battery
Technical data:
- Detection mode for metal and wood bolts
- Maximum detection depth of metal/wood bolts: 38 mm
- Detection mode for power-carrying cables
- Maximum depth of detection: 50 mm
- Metal mode
- Maximum depth of detection (metal): 100mm(non-ferrous metals), 120mm(ferrous metals)
- LCD display: HD color, 2.4 inch, resolution 240 x 320 pixels
- Calibration: automatic
- Audible warnings

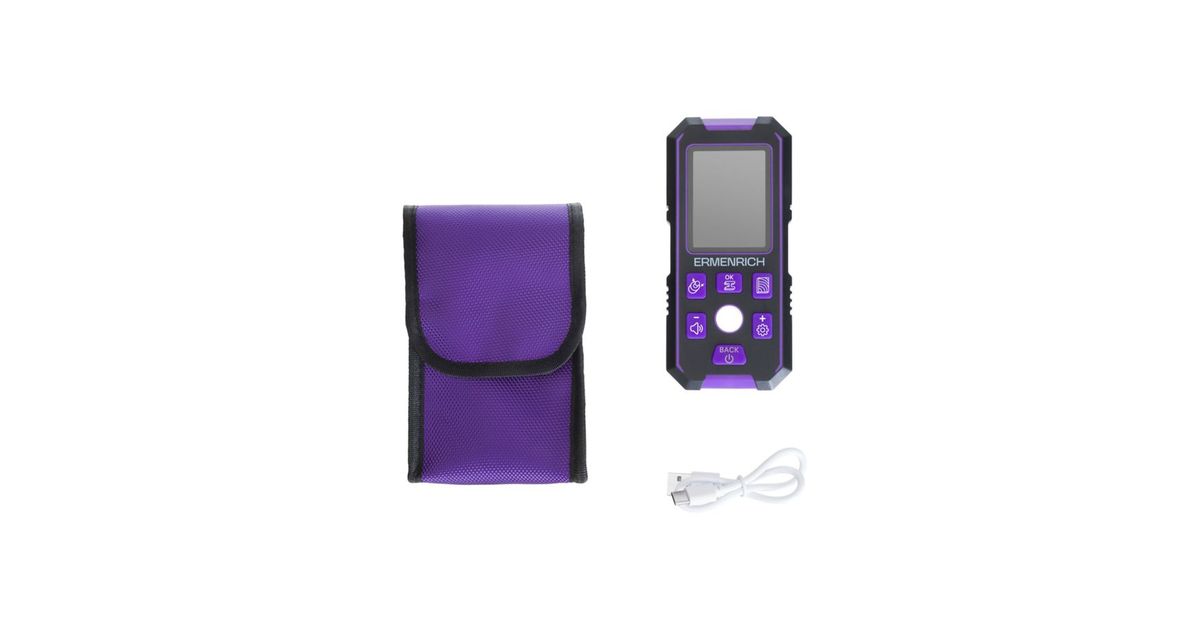

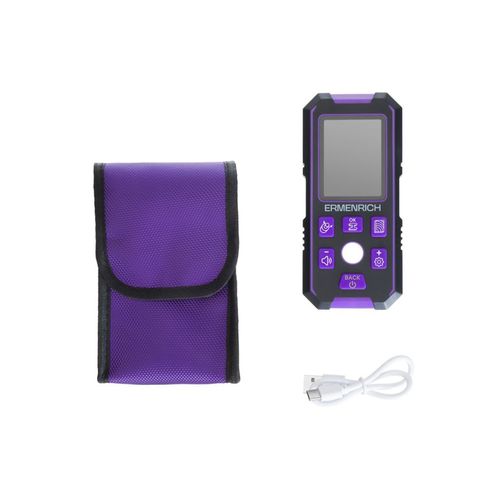

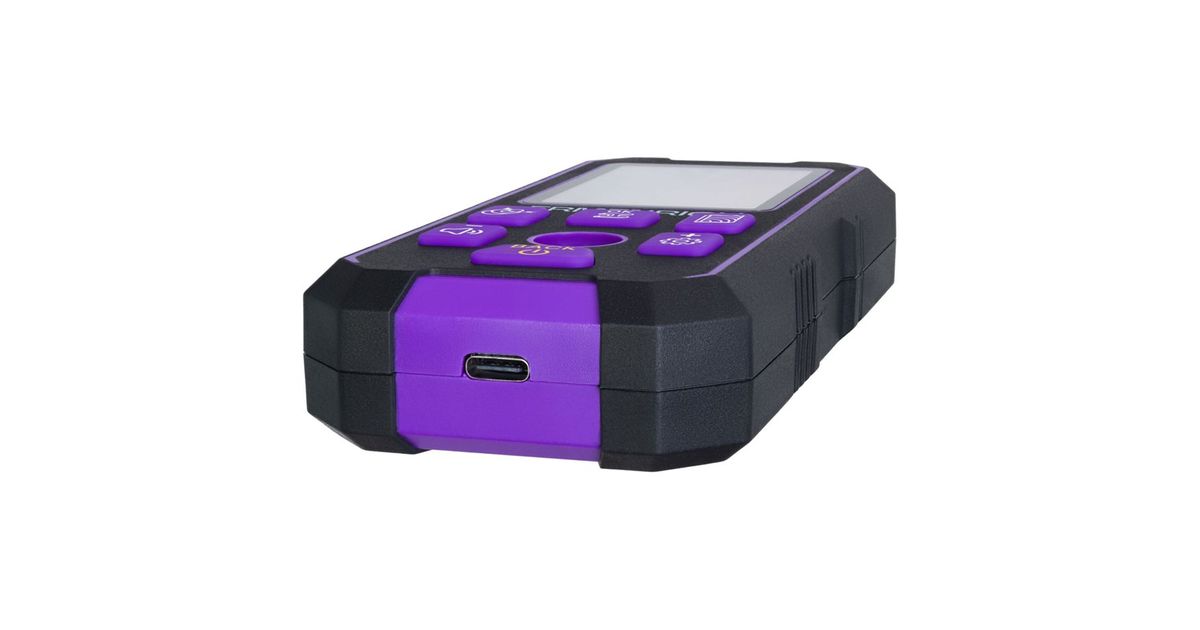

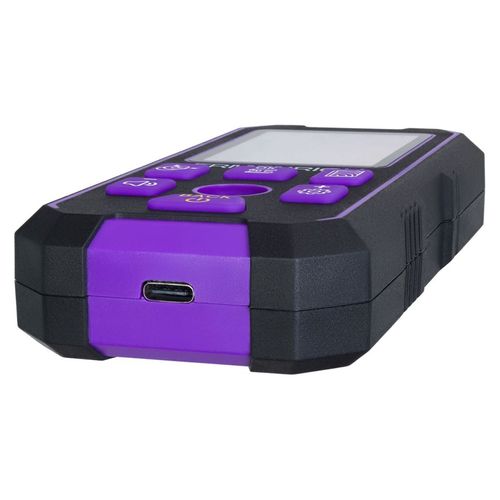

- Power source: 390 mAh lithium battery, 3.7 V, charging via a 5 V, 1 A DC adapter (not included) and USB-C cable (included)
- Low battery indicator
- Automatic shutdown

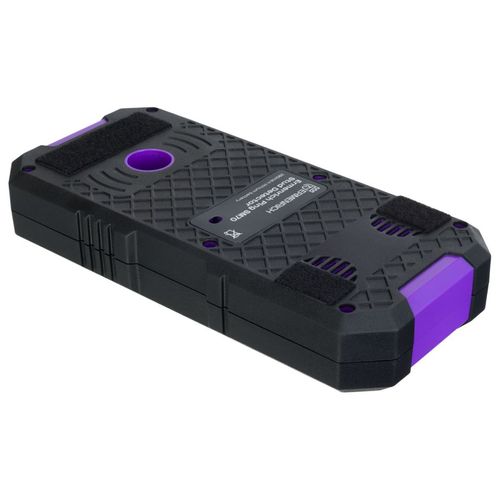

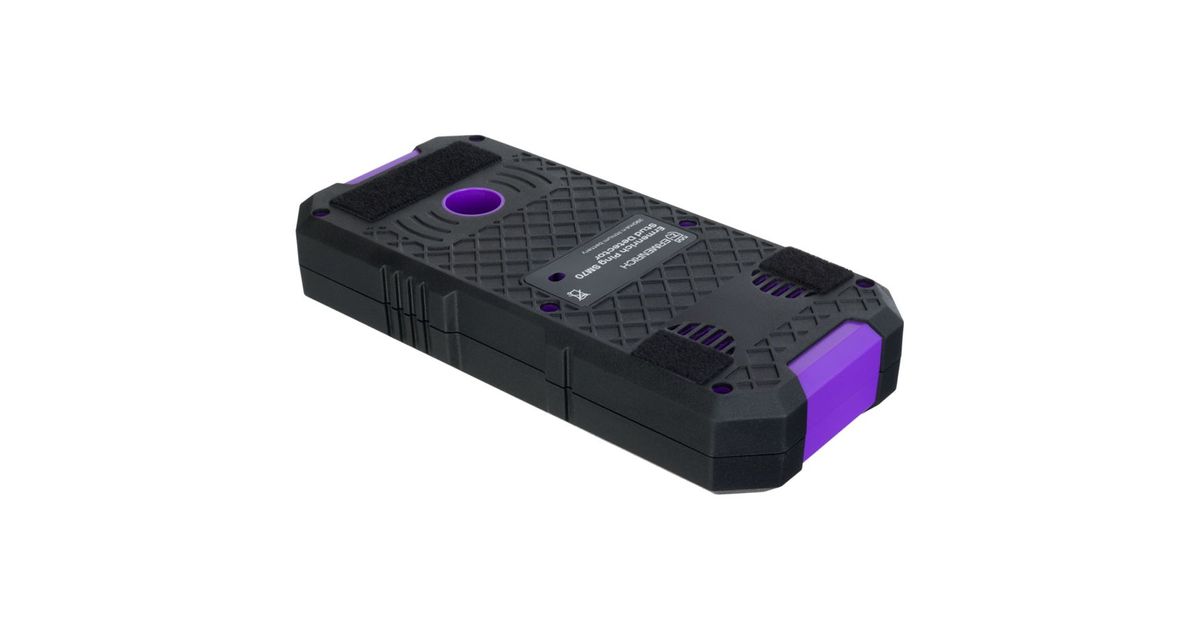

- Housing: polycarbonate, robust ABS plastic
- Temperature range: 0 ... + 50 °C
- Dimensions: 63 x 25 x 139 mm
- Colour: black / purple
- Weight: 138 g
