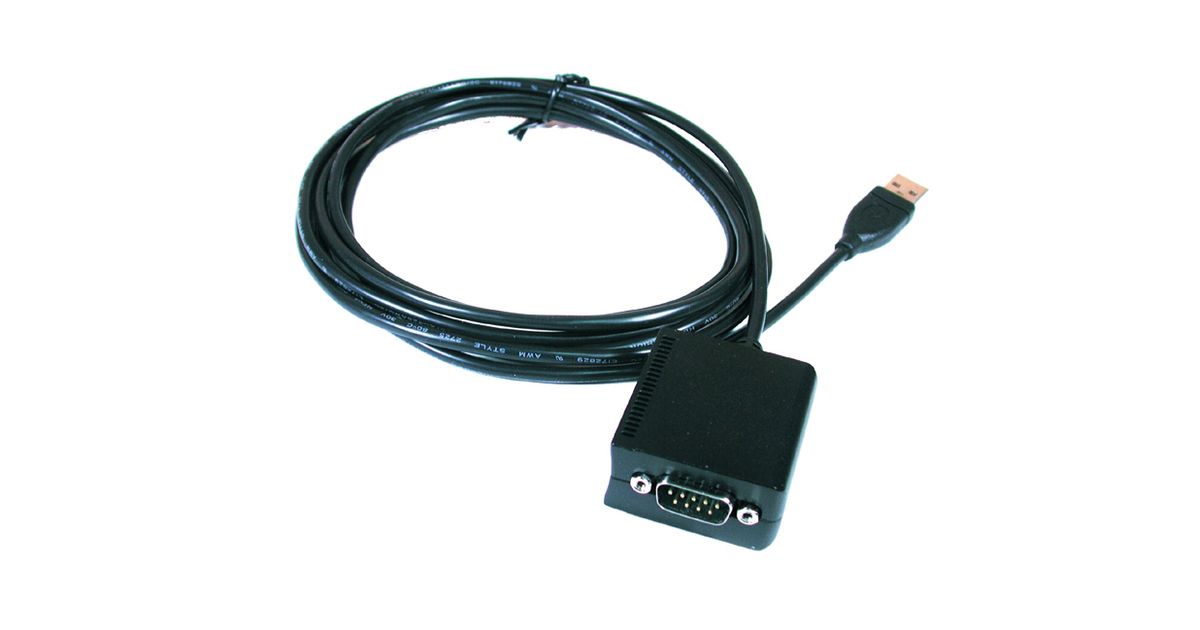

EXSYS USB 1.1 to 1S RS-232 port serial cable Black 1.8 m USB Type-A DB-9
EXSYS USB 1.1 to 1S RS-232 port, Black, 1.8 m, USB Type-A, DB-9, Male, Male
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EXSYS |
| Product code | 167904118 |
| EAN | 04718359130212 |
| Manufacturer part number | EX-1302IS |
| Category | Serial cables and adapters |
Product Description
The USB 1.1 to RS-232 cable provides one high performance 16C550-type UART compatible RS-232 serial port with 15KV Surge Protection and 2.5KV Optical Isolation. It is designed for PC, thin client or server to provide instant COM port expansion via the USB 1.1 or 2.0 Bus. With the easy installation you don t need to open the computer system and install the EX-1302 when the system run.
- Interface: RS-232 V.24
- ESD Surge Protection 15KV
- Optical Isolation 2.5KV
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses: Setting from the operating system
- Interrupt: Setting from the System BIOS with Interrupt Sharing
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Interface: RS-232 V.24
- ESD Surge Protection 15KV
- Optical Isolation 2.5KV
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses: Setting from the operating system
- Interrupt: Setting from the System BIOS with Interrupt Sharing
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
