EZVIZ BC1C 2K+ SMART HOME BATTERY CAM
EZVIZ BC1C 2K+ SMART HOME BATTERY CAM, IP security camera, Indoor & outdoor, Wireless, 2400 - 2483.5 MHz, CE/FCC/WEEE/ROHS/REACH/UL, Ceiling/wall
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EZVIZ |
| Product code | 326209566 |
| EAN | 06941545605791 |
| Manufacturer part number | CS-BC1C |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Certification | CE/FCC/WEEE/ROHS/REACH/UL |
| Protection features | Dust resistant, Water resistant |
| Weatherproof | Y |
| Supported video modes | 1080p |
| Keyboard | |
|---|---|
| Connectivity technology | Wireless |
| Performance | |
|---|---|
| Day/night mode | Y |
| Operating frequency | 2400 - 2483.5 MHz |
| Infrared (IR) cut-off filter | Y |
| Flash memory | 32768 MB |
| Power source type | Battery |
| Mounting | |
|---|---|
| Mounting type | Ceiling/wall |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Bullet |
| International Protection (IP) code | IP66 |
| Camera | |
|---|---|
| Minimum illumination | 0.2 lx |
| Lens viewing angle, horizontal | 108° |
| Lens viewing angle, diagonal | 125° |
| Adjustment shutter speed | Auto |
| Video recording | Y |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Y |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1 |
| Fixed focal length | 2.8 mm |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 10 m |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 4 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Bit rate | 2Mbps |
| Media formats | |
|---|---|
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.265 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Ethernet LAN | N |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 72 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Storage | |
|---|---|
| Built-in HDD | N |
| Ports & interfaces | |
|---|---|
| DC-in jack | Y |
| Security | |
|---|---|
| Password protection | Y |
| Video motion detection | Y |
| Anti-flicker | Y |
| Heartbeat | Y |
| Digital watermark | Y |
| Power | |
|---|---|
| Power consumption (max) | 5 W |
| DC output voltage | 5 |
| DC output current | 2 A |
| Battery | |
|---|---|
| Battery technology | Lithium |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 104.8 mm |
| Depth | 62.8 mm |
| Height | 62.8 mm |
| Weight | 365 g |
| Package weight | 835 g |
| Packaging data | |
|---|---|
| Package width | 186 mm |
| Package depth | 103 mm |
| Package height | 103 mm |
| Screws included | Y |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Y |
Product Description
Hassle-free home protection supported by extended battery life.
The BC1C is a 100% wire-free rechargeable camera that delivers well-rounded home protection for up to 210 days on one single charge. It can be simply installed anywhere for enhanced security, inheriting EZVIZ's core technologies of color night vision, two-way talk, active defense and more.
Long-lasting battery life for extended peace-of-mind.

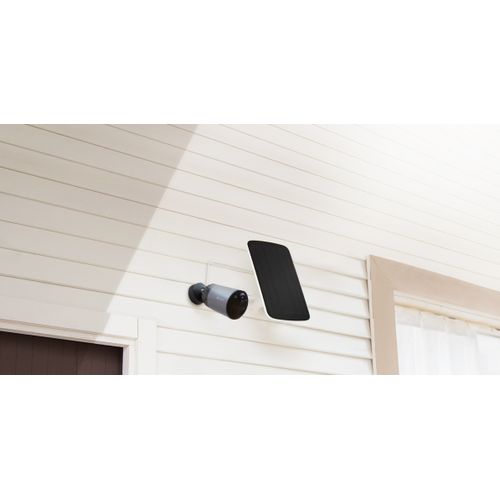

Equipped with a 7,800 mAh rechargeable battery, the BC1C can last for up to 210 days* on one full battery charge, ensuring stable performance all day and night. It can also be connected to EZVIZ Solar Panel to get powered directly.
Vivid night vision.
Thanks to two built-in spotlights, the BC1C can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost
Motion alerts are more accurate than ever.
Integrating a PIR sensor and the person-shape detection algorithm, the BC1C camera is intelligent enough to distinguish persons from other moving objects, keeping you safe while also reducing unwanted notifications.
A vigilant guard over your property.
Users can set specific time frames for detection. Once the camera detects a person-shape, the BC1C will automatically set off a siren and flash two spotlights* to let them know they have been detected.
Customizable voice messages.
A thoughtful product by design, the BC1C allows you to create unique voice messages* for greeting or deterrence.
Talk as if you were there.
See and hear what’s going on and chat with your visitors—all with a tap on the EZVIZ App!
Fast and easy wire-free setup.
Featuring a large battery, Wi-Fi connectivity, and a magnetic base, the BC1C camera requires exactly zero professional help in installation. Simply attach the camera to any metallic surface and it is good to go!
Built to last.
The BC1C camera features an IP66 enclosure, offering high levels of protection against dust and water and delivering long-lasting protection in even the toughest weather conditions.
BC1C helps you save money on storage and bandwidth.
The BC1C camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard.
We protect your data and privacy.
Your data security and privacy make up the cornerstone of every product we design. Data transmission between the BC1C and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
An affordable product with built-in storage.
The BC1C is embedded with 32 GB eMMC storage capacity, which means you no long need to go through any hassle or spend extra money on expansive storage cards. You can also choose to save your data onto the EZVIZ CloudPlay upon service subscriptions, for additional protection in case of device damage or loss.
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what's valuable to you.
