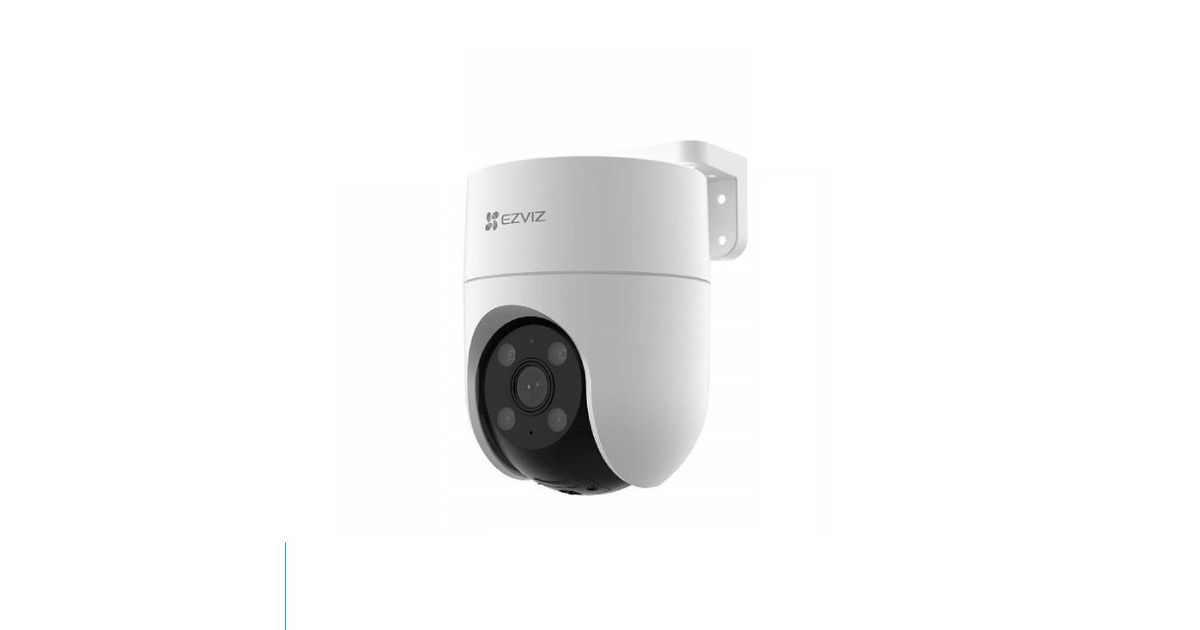

EZVIZ H8c Spherical IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
EZVIZ H8c, IP security camera, Indoor & outdoor, Wired & Wireless, Ceiling/Wall/Pole, White, Spherical
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EZVIZ |
| Product code | 257930514 |
| EAN | 06941545613284 |
| Manufacturer part number | CS-H8C(4MM) |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Built-in light | Y |
| Weatherproof | Y |
| Channel bandwidth | 20 MHz |
| Keyboard | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Auto-tracking | Y |
| Day/night mode | Y |
| Infrared (IR) cut-off filter | Y |
| Power source type | DC |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall/Pole |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Spherical |
| Reset button | Y |
| Camera | |
|---|---|
| Lens viewing angle, horizontal | 89° |
| Lens viewing angle, diagonal | 104° |
| Pan range | 0 - 350° |
| Live view | Y |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 46° |
| Maximum aperture number | 2 |
| Focal length range | 4 mm |
| Lens mount interface | M12 |
| Ergonomics | |
|---|---|
| Tilt angle range | 0 - 80° |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 m |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Media formats | |
|---|---|
| Video compression formats | H.264, H.265 |
| Video | |
|---|---|
| Frame rate | 30 fps |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Bit rate | 2 Mbps |
| Digital Wide Dynamic Range (DWDR) | Y |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Audio system | 2-way |
| Built-in microphone | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 72 Mbit/s |
| Number of simultaneous live view channels | 2 channels |
| Mouse | |
|---|---|
| Frequency band | 2.4 - 2.4835 GHz |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Security | |
|---|---|
| Built-in siren | Y |
| Password protection | Y |
| Video motion detection | Y |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Anti-flicker | Y |
| Heartbeat | Y |
| Digital watermark | Y |
| Configurable region | Y |
| Power | |
|---|---|
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 129.2 mm |
| Height | 149.8 mm |
| Weight | 420 g |
| Package weight | 730 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Drilling template included | Y |
| AC adapter included | Y |
| Waterproof connector | Y |
| Packaging data | |
|---|---|
| Screws included | Y |
| Other features | |
|---|---|
| Quick start guide | Y |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE |
Product Description
360-degree protection that’s simply smart
Inheriting the core technologies from EZVIZ’s award-winning outdoor pan & tilt camera series, the H8c puts loads of smart features into a compact unit for simply smart home protection. This trusted, accessible camera is reliable in any weather and operates steadily on residential internet platforms.
Crisp, 360-degree vision means no gray areas
Can’t get a wide enough picture with your current security camera? Hesitant about the huge investment on a multi-camera security system? The motorized H8c reduces blind spots in monitoring so you see every corner that matters. It renders sharp images in 1080p resolution, too. With only one affordable H8c, you can stay informed with both the bigger picture and the small details.
Detect and track the crucial moments
The H8c distinguishes people from pets or insignificant moving objects. When human activity gets detected, the camera will lock on the target and automatically rotate to follow the movement. Nothing will easily escape your attention.
A vigilant guard who works around the clock
The camera features the active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two dazzling spotlights³ to let uninvited visitors know they have been detected.
Pin down the spots that matter to you most
No matter how complicated the tracking is, the camera always knows it’s way back to your preferred viewing angle. You can pinpoint up to 12 angles via the EZVIZ App. Just click on your pre-set dots and the camera will automatically resume its place.
Hear and speak with visitors as if you were there
With the H8c, you can simply use your smartphone to hear and speak to a deliveryman, greet guests, or ask strangers to leave your property – even if you’re not home.
Elegant design with reliable Wi-Fi connection
Compact in design to go under the eaves or on an exterior wall, the H8c comes equipped with high-performance, built-in dual antennas to ensure stable, strong camera connection.
Sturdy and durable for everyday use
EZVIZ designed the H8c to bring simple, long-lasting, and worry-free protection to every family. Its weatherproof enclosure stands strong even in harsh weather.
Detachable mount plate makes installation easy
The H8c facilitates the setup process. Its mounting base can be detached from the camera body to get installed first, eliminating the need to hold the whole camera in place while you search for the best installation spot.
Extra-Large, safe storage options that you can trust
You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.
Enhanced viewing pleasure with smaller video files
Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded videos. Meanwhile, you won’t have to worry about large video files taking up too muchof your storage space – H.265 technology reduces their sizes by up to 50%.
We do our best to protect data and privacy
EZVIZ has been awarded by DNV for information security (ISO/IEC 27001:2013), personal data protection (ISO/IEC 27701:2019), cloud security (CSA STAR) and more.
