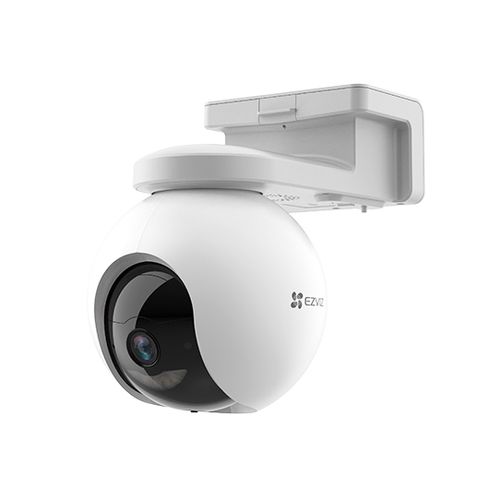

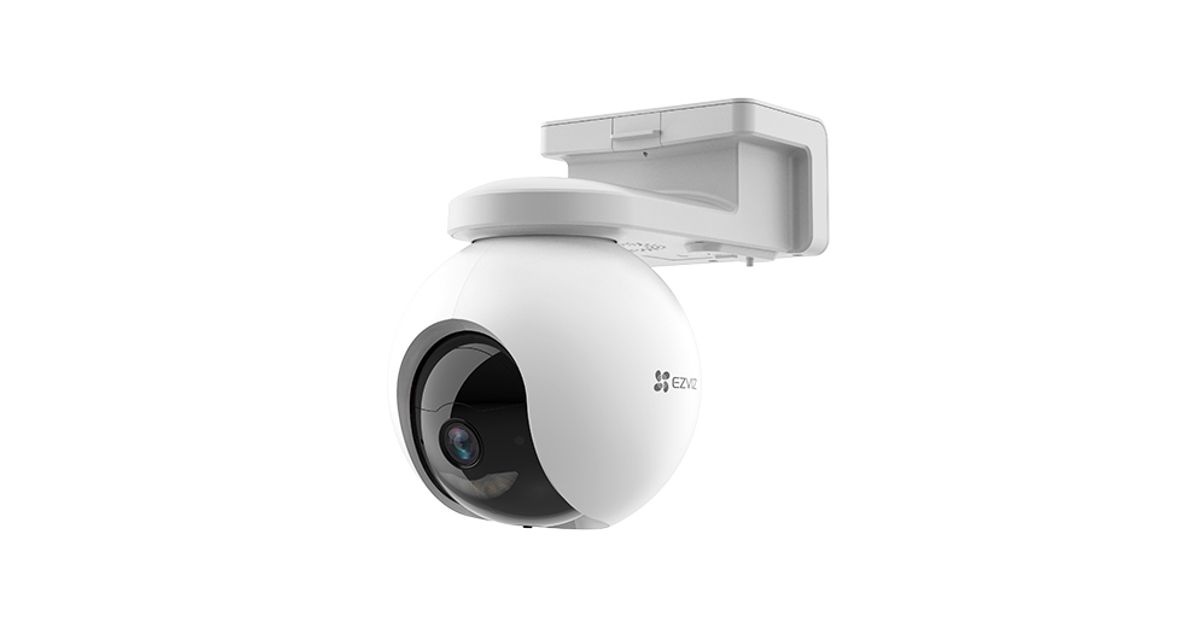

EZVIZ HB8 Spherical IP security camera Outdoor 2560 x 1440 pixels Wall
EZVIZ HB8, IP security camera, Outdoor, Wired & Wireless, 2400 - 24835 MHz, CE / FCC / WEEE / RoHS / REACH / UL, Wall
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | EZVIZ |
| Product code | 327177453 |
| EAN | 06941545609317 |
| Manufacturer part number | CS-HB8 (4MP) |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Certification | CE / FCC / WEEE / RoHS / REACH / UL |
| Weatherproof | Y |
| Supported graphics resolutions | 2560 x 1440 |
| Channel bandwidth | 20 MHz |
| Keyboard | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| PTZ control | Y |
| Auto-tracking | Y |
| Day/night mode | Y |
| Operating frequency | 2400 - 24835 MHz |
| Infrared (IR) cut-off filter | Y |
| Power source type | Battery, DC |
| Mounting | |
|---|---|
| Mounting type | Wall |
| Design | |
|---|---|
| Product colour | Black, White |
| Form factor | Spherical |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Lens viewing angle, horizontal | 83° |
| Lens viewing angle, diagonal | 100° |
| Pan range | 0 - 340° |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 44° |
| Lens diameter | 4 mm |
| Maximum aperture number | 1.6 |
| Ergonomics | |
|---|---|
| Tilt angle range | 0 - 65° |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 15 m |
| Graphics | |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Video | |
|---|---|
| Total megapixels | 4 MP |
| Noise reduction technology | 3D noise reduction |
| Bit rate | 2 Mbps |
| Media formats | |
|---|---|
| Video compression formats | H.264, H.265 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Audio detection | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Storage | |
|---|---|
| Card reader integrated | Y |
| Compatible memory cards | MMC |
| Maximum memory card size | 32 GB |
| Security | |
|---|---|
| Password protection | Y |
| Video motion detection | Y |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Motion sensor | Y |
| Anti-flicker | Y |
| Heartbeat | Y |
| Digital watermark | Y |
| Power | |
|---|---|
| Power consumption (max) | 10 W |
| DC output voltage | 5 |
| DC output current | 2 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 186 mm |
| Depth | 166 mm |
| Height | 116 mm |
| Weight | 803 g |
| Package weight | 1.06 kg |
| Packaging data | |
|---|---|
| Package width | 216 mm |
| Package depth | 145 mm |
| Package height | 203 mm |
| Screws included | Y |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Manual | Y |
Product Description
No strings attached, no area unnoticed
Meet EZVIZ’s first Battery-Powered Pan & Tilt Security Camera, the HB8. It’s truly a one-of-a-kind! Capturing details from all directions, the HB8 2K⁺ can “see” in 360 degrees with incredibly sharp resolution, and provides free on-device storage to auto-record nearby activity. With its ultra-long, 210-day battery life, the HB8 revolutionizes the complex installation of an outdoor camera while performing as well as its wired equivalent. And with optional solar power, the HB8 gets even better.
It’s easy to put it in action
The HB8 2K⁺ features possibly the biggest battery capacity among outdoor pan & tilt security cameras in the market. And where other cameras are limited by the socket location or the length of a connecting wire, the wireless HB8 offers limitless options. Set it where you want it – wherever it gets the best views.
Stay charged with green energy
Don’t feel like climbing up and down a ladder to recharge the camera? Worried about losing power quickly due to frequent activity detection?
Connect your camera to the compatible EZVIZ Solar Panel² for constant power and forget about any low-battery anxieties once and for all.
An eye for all-around protection in 2K⁺
The camera’s pan-and-tilt design and 2K⁺ resolution work in tandem to give you the complete picture with stunning details. These great features help you watch over large open areas with minimal effort.
Smarter detection with auto-tracking
When in action, the camera makes it hard for anyone to go unnoticed. Integrating a PIR sensor and the person-shape detection algorithm, the HB8 2K⁺ is smart enough to alert you to moving people rather than trivial objects. What’s better, it locks on the detected person and can track the whole process of an activity.
Never miss a moment with free video storage
You don’t need to pay for storage cards or subscription plans before the camera starts saving important moments. The HB8 2K⁺ is embedded with a large, 32 GB eMMC storage capacity.
An active guard for your home
The camera’s active defense function provides an extra layer of protection. Upon detection of a moving person, the camera will set off a loud siren and flash two spotlights⁵ for immediate on-site deterrence.
Vivid night vision
Thanks to two built-in spotlights, the camera can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost.
Elegant and durable design
With its elegant design, the HB8 2K⁺ can fit in any household perfectly. It’s also weatherproof to deliver longstanding performance.
Greeting can be this easy
Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages thatautomatically play when people are detected on camera.
It saves money on storage and bandwidth
The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard⁶.
We protect your data and privacy
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
Security at your fingertips
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.
