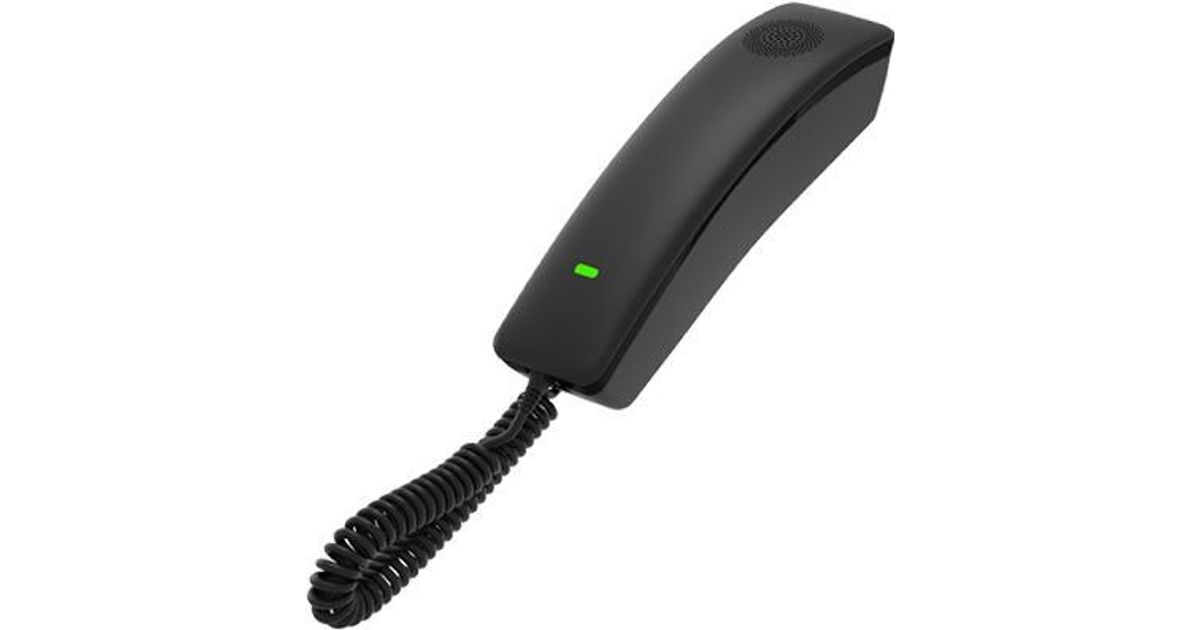

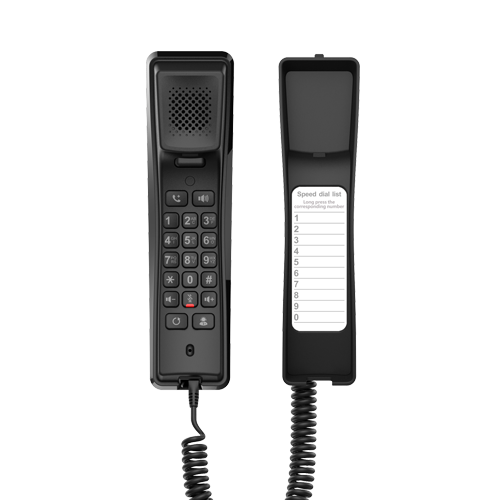

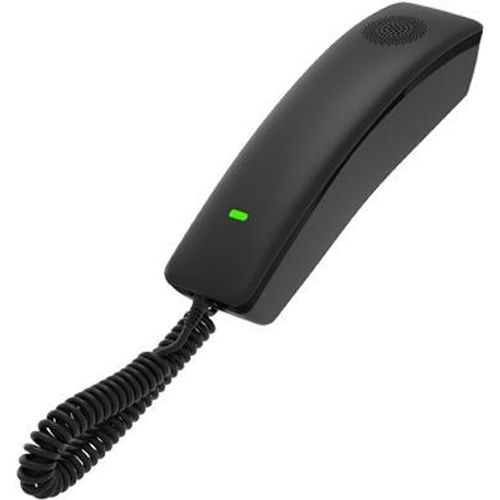

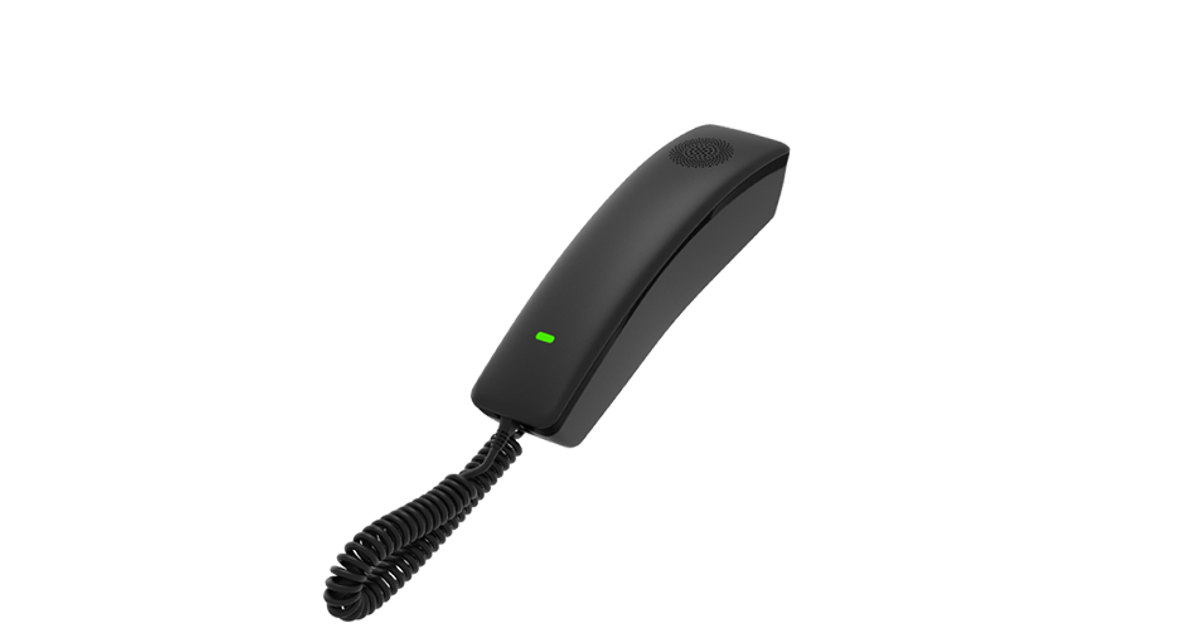

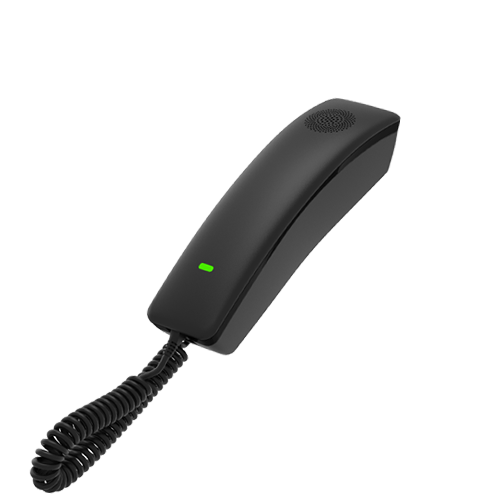

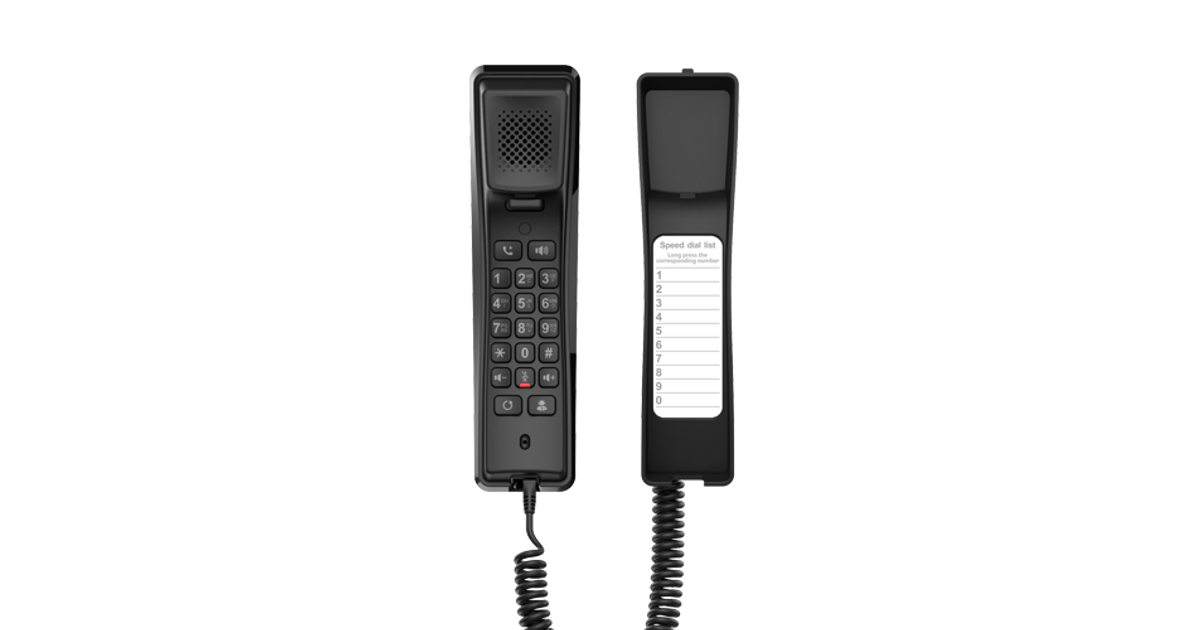

Fanvil H2U-B IP phone Black 2 lines
Fanvil H2U-B, IP Phone, Black, Wired handset, Desk/Wall, In-band, Out-of band, SIP info, 2 lines
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Fanvil |
| Product code | 163439833 |
| EAN | 06937295602067 |
| Manufacturer part number | H2U-B |
| Category | VoIP phones & accessories |
| Design | |
|---|---|
| Product type | IP Phone |
| Product colour | Black |
| Handset type | Wired handset |
| Mounting | Desk/Wall |
| Performance | |
|---|---|
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Firmware upgradeable | Y |
| Syslog | Y |
| Phone features | |
|---|---|
| Lines quantity | 2 lines |
| Speed dialling | Y |
| Redialing | Y |
| Call log entries | 600 |
| Video call | N |
| Features | |
|---|---|
| Call hold | Y |
| Conference call | Y |
| Volume control | Buttons |
| Echo cancellation | Y |
| Management features | |
|---|---|
| Keypad number of keys | 19 |
| Number of programmable keys | 1 |
| Number of function keys | 3 |
| Management platform | TP/TFTP/HTTP/HTTPS/DHCP, OPT66/SIP, PNP/TR-069 |
| Quality of Service (QoS) support | Y |
| Display | |
|---|---|
| Touchscreen | N |
| Camera | |
|---|---|
| Front camera | N |
| Audio | |
|---|---|
| Speakerphone | Y |
| Voice codecs | G.711a,G.711u,G.722,G.726,G.729A,OPUS,iLBC |
| Voice activity detection | Y |
| Adaptive jitter buffers | Y |
| Comfort noise generation (CNG) | Y |
| Packet loss concealment (PLC) | Y |
| Microphone | |
|---|---|
| Microphone mute | Y |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security algorithms | SRTP |
| Protocols | |
|---|---|
| Supported network protocols | SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| AC adapter input voltage | 5 V |
| Input current | 2 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 55.8 mm |
| Depth | 215 mm |
| Height | 27.8 mm |
| Packaging data | |
|---|---|
| Package width | 224 mm |
| Package depth | 75 mm |
| Package height | 62 mm |
| Packaging content | |
|---|---|
| Number of handles included | 1 pc(s) |
Product Description
Fanvil H2U Compact IP Phone
Tiny and stylish, Fanvil H2U compact IP phone possesses brand new features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. Supporting desktop and wall-mounted mode, PoE and power supply charging mode, Fanvil H2U is more than a hotel phone and also can be applied in multiple scenarios, such as school, hospital, supermarket and residence.
Considerate Design for Varied Scenarios
Tiny and fully-featured, Fanvil H2U supports PoE/power supply charging as well as desktop/wall-mounted mode,which can be applied in different scenarios flexibly.
HD Audio for both Handset and Speaker
With Wideband Codec G.722 and Opus, Fanvil H2U offers a more stable and clearer audio even in a noisy environment.
Support SIP Hotspot
Fanvil H2U IP phones can share one number from the server. When a call comes in,
each extension phone will ring together to make sure you won’t miss a call.
Tiny and stylish, Fanvil H2U compact IP phone possesses brand new features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. Supporting desktop and wall-mounted mode, PoE and power supply charging mode, Fanvil H2U is more than a hotel phone and also can be applied in multiple scenarios, such as school, hospital, supermarket and residence.
Considerate Design for Varied Scenarios
Tiny and fully-featured, Fanvil H2U supports PoE/power supply charging as well as desktop/wall-mounted mode,which can be applied in different scenarios flexibly.
HD Audio for both Handset and Speaker
With Wideband Codec G.722 and Opus, Fanvil H2U offers a more stable and clearer audio even in a noisy environment.
Support SIP Hotspot
Fanvil H2U IP phones can share one number from the server. When a call comes in,
each extension phone will ring together to make sure you won’t miss a call.
