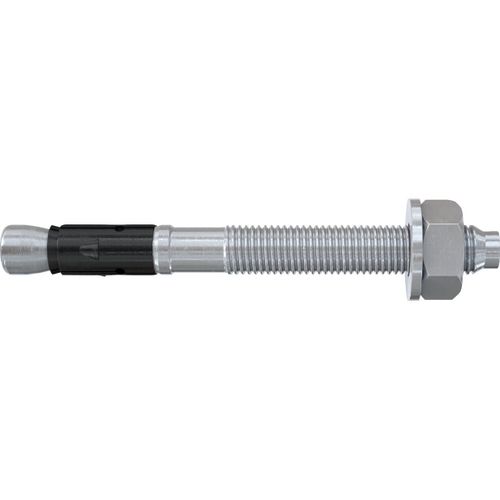

Fischer 564574 screw anchor / wall plug 50 pc(s) 75 mm
Fischer 564574, Brick, Concrete, Zinc plated steel, M8, 8 mm, 75 mm, 8 mm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Fischer |
| Product code | 169503256 |
| EAN | 04048962461992 |
| Manufacturer part number | 564574 |
Product Description
Advantages
- Quick and easier assembly without the need for drill hole cleaning (M8-M24).
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads.
- The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation.
The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
Functionality
- The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

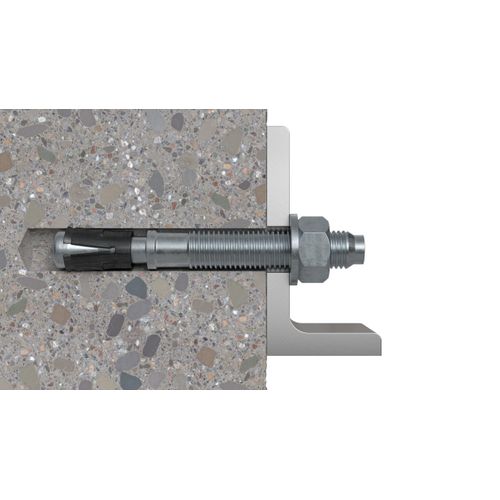

- When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
- The anchor is set in line with the approval once the preset installation torque is achieved.
- In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
- In case of seismic demands, the annular gap can be filled using the filling disc FFD.
- Quick and easier assembly without the need for drill hole cleaning (M8-M24).
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads.
- The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation.
The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
